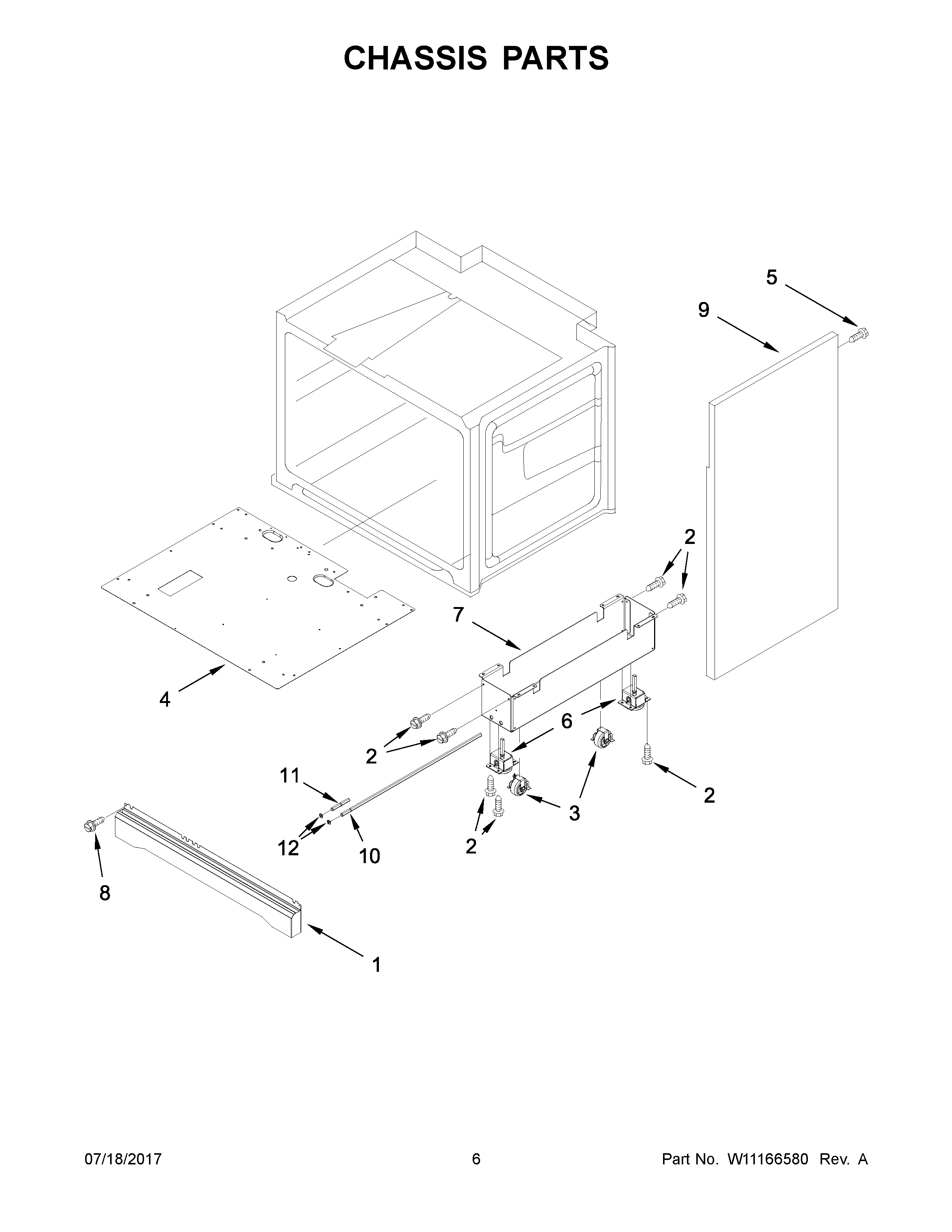

KDRS407VMW01 04 – CHASSIS PARTS

Products

Position	Product
1A	W11167952 Whirlpool Cover Plate
1	KICKPLATE (IMPERIAL WHITE)
1B	KICKPLATE (SIGNATURE RED)
2	WPW10292297 Whirlpool Screw
3	WPW10138054 Whirlpool Refrigerator Cabinet Roller
4	DUCT, BOTTOM
6	W10859931 Whirlpool Foot Level
7	W10249333 Whirlpool Dishwasher Mounting Bracket
8	WP3196557 Whirlpool Screw
9	WPW10250465 Whirlpool Cabinet Panel
9A	W11333303 Whirlpool Side Complete Assembly
10	W10115869 Whirlpool Shaft
11	W10115793 Whirlpool Shaft
12	489504 Whirlpool Oven Ring
