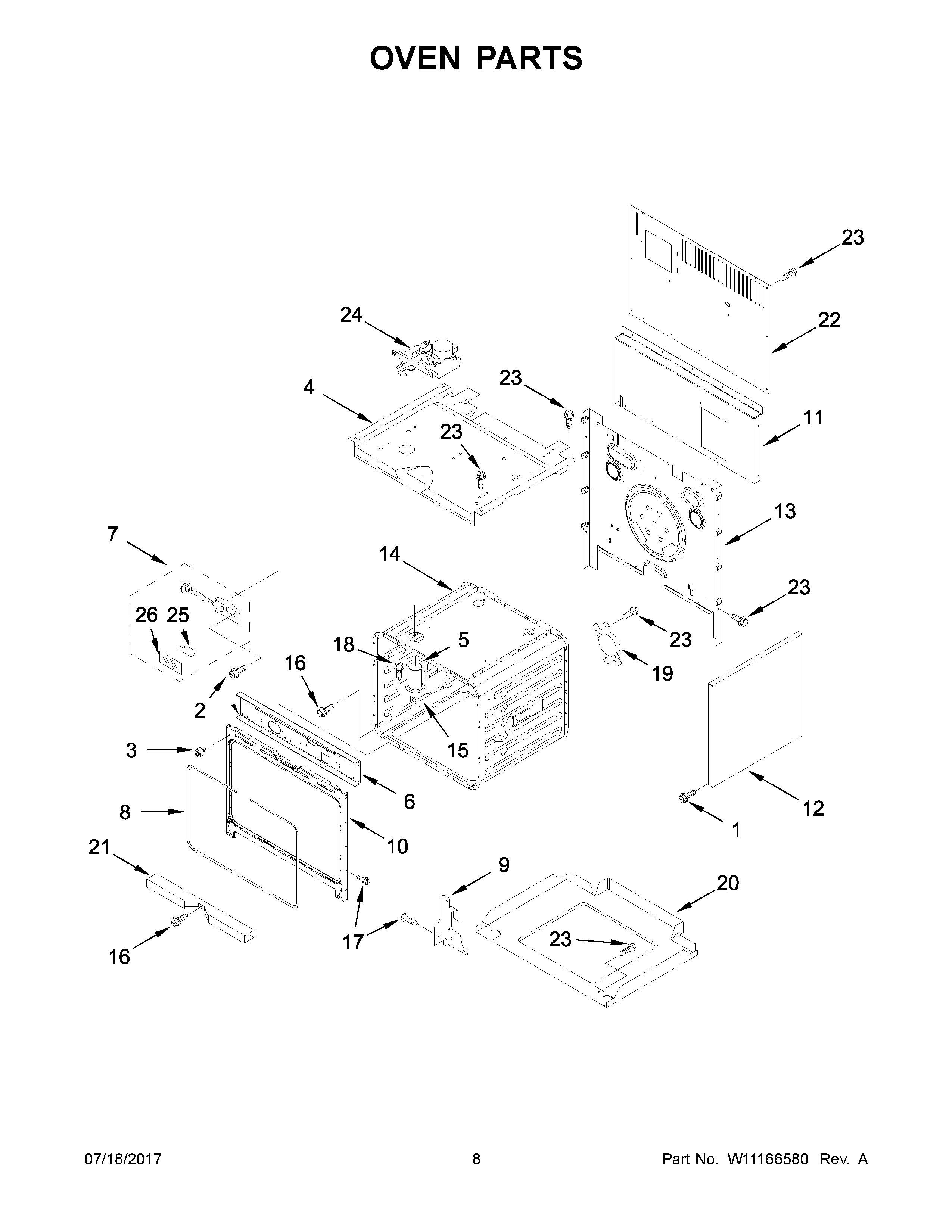

KDRS407VMW01 05 – OVEN PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11684730 Whirlpool Insulation
NI	INSULATION, BACK, 30"
NI	WP3400968 Whirlpool Nut
1	WPW10292297 Whirlpool Screw
2	4449748 Whirlpool Oven Screw
3	W10105790 Whirlpool Bumper
4	CHASSIS, TOP
5	TUBE, VENT
6	SUPPORT, CHANNEL
7	WPW10307114 Whirlpool Light
8	W11675844 Whirlpool Oven Gasket
9A	WP4455606 Whirlpool Right Hand Hinge
9	WP4455605 Whirlpool Left Hand Hinge
10	WPW10115831 Whirlpool Front Frame
11	PANEL, BACK BOTTOM
12	W10269206 Whirlpool Side Compartment
12A	W10269205 Whirlpool Side Compartment
13	BACK, CHASSIS
15	WPW10131825 Whirlpool Oven Temperature Sensor
16	WP4449154 Whirlpool Screw
17	Screw
18	SCREW
19	WP4449751 Whirlpool Range Oven Thermostat Fix
20	BOTTOM, CHASSIS
21	W11368870 Whirlpool Retainer Assembly
22	PANEL, BACK TOP
23	SCREW
24	W11029221 Whirlpool Door Latch
25	BULB-LIGHT
26	W10169756 Whirlpool Light Lens
