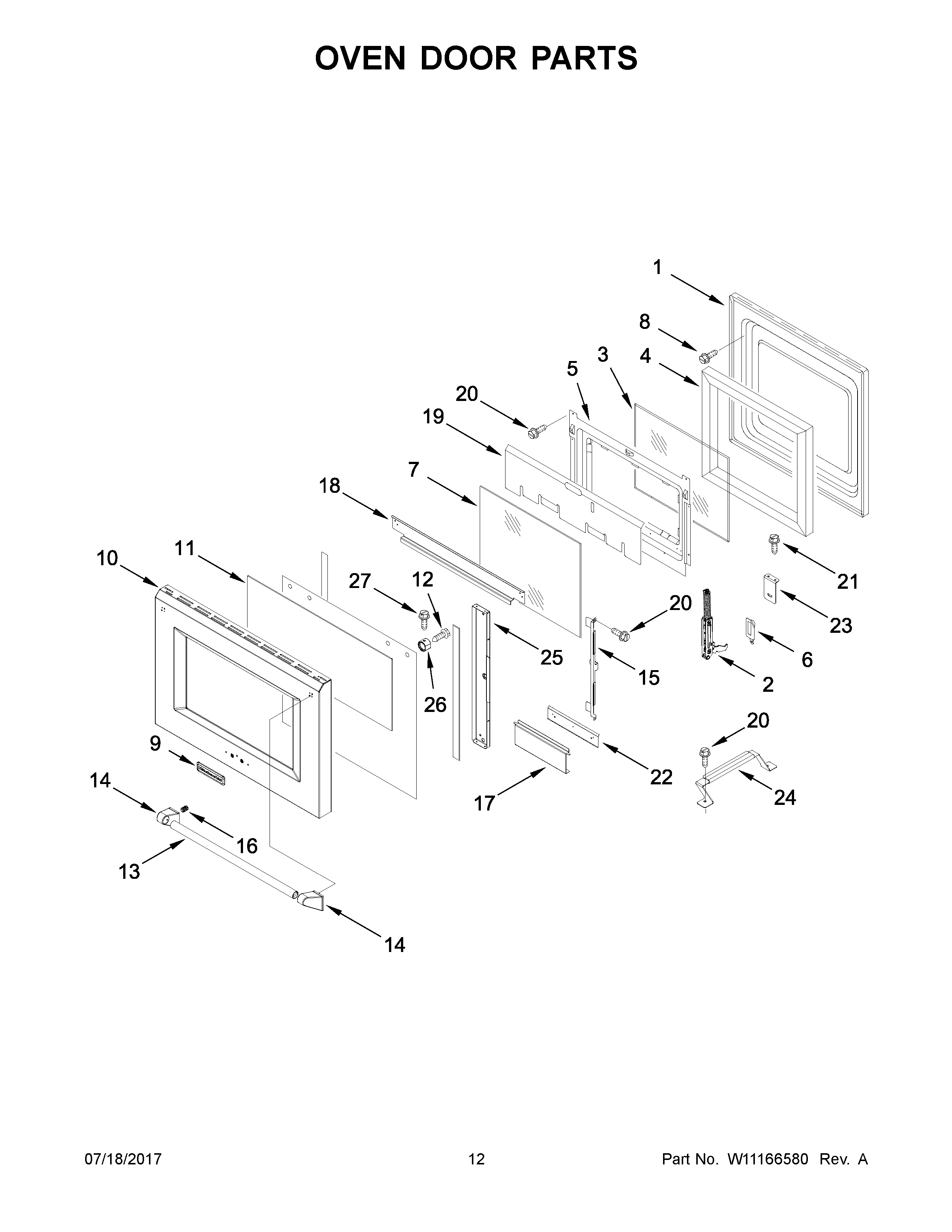

KDRS407VMW01 07 – OVEN DOOR PARTSadmin2025-04-26T10:27:02+00:00KDRS407VMW01 07 – OVEN DOOR PARTS ProductsPositionProduct1WP9759413 Whirlpool Door Liner2AW10782122 Whirlpool Door Hinge2W10782123 Whirlpool Door Hinge Assembly3WP4449259 Whirlpool Glass Window4WP4451722 Whirlpool Door Insulation Assembly5WP4457132 Whirlpool Retainer6AW10115877 Whirlpool Cover6W10115876 Whirlpool Cover7WP9759225 Whirlpool Inner Door Glass8WPW10292297 Whirlpool Screw9W10839793 Whirlpool Refrigerator Nameplate10APANEL, EXTERIOR DOOR (COBALT BLUE)10PANEL, EXTERIOR DOOR (IMPERIAL WHITE)10BW11167354 Whirlpool Door Panel11GLASS, OUTER DOOR12W10217130 Whirlpool Screw13HANDLE, DOOR14AW11428542 Whirlpool Handle End Cap14W11428546 Whirlpool Handle Endcap15WP9759229 Whirlpool Mounting Bracket16W10771437 Whirlpool Screw17BRACKET, OUTER GLASS (BOTTOM)18W10145805 Whirlpool Glass Bracket19SHIELD, HEAT TOP20WP3196557 Whirlpool Screw21SCREW224457114 Whirlpool Oven Heat Shield23W10115715 Whirlpool Bracket Mounting24Bracket (3rd Glsss)25BRACKET, OUTER GLASS (SIDE)26SUPPORT, HANDLE27W10061760 Whirlpool Screw
