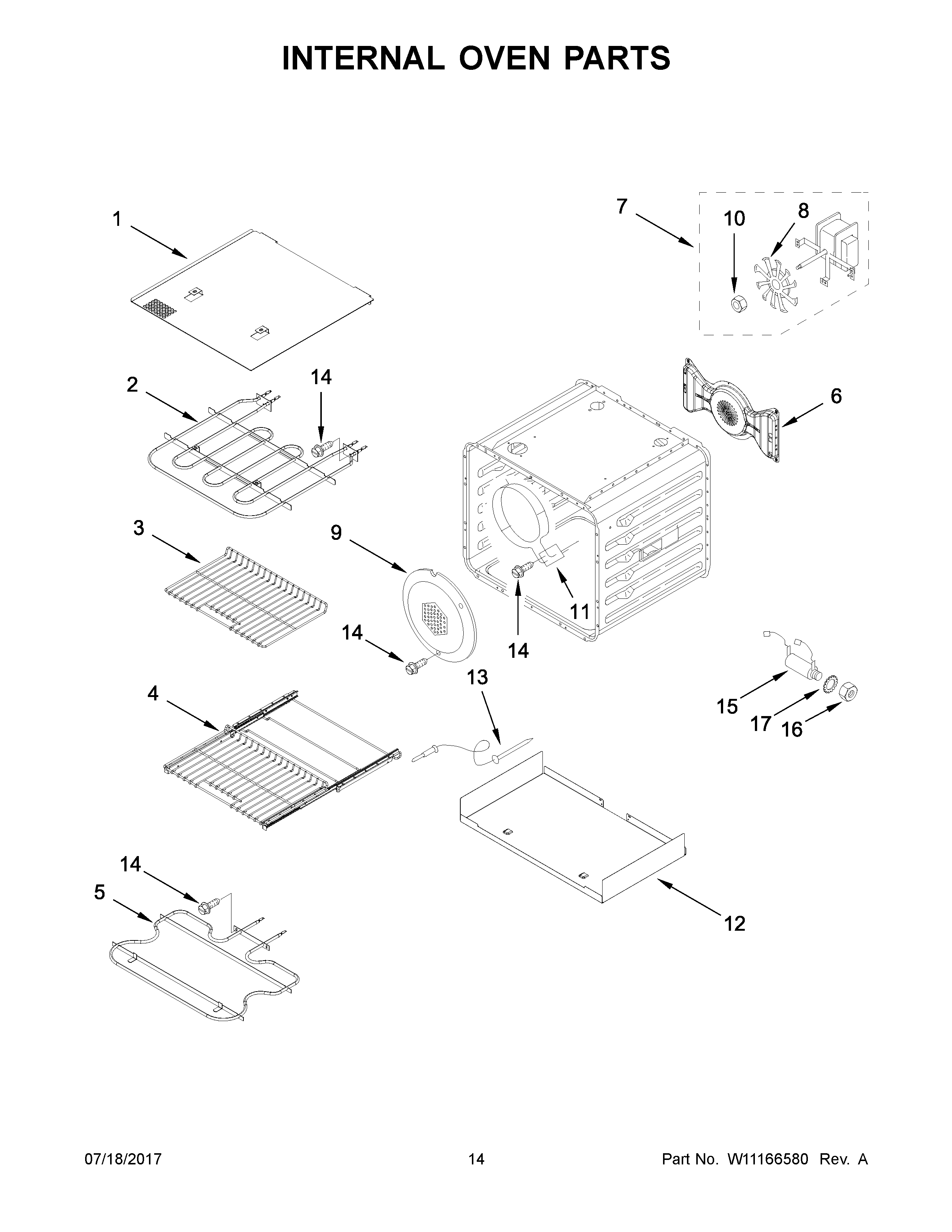

KDRS407VMW01 08 – INTERNAL OVEN PARTS

Products

Position	Product
1	SHIELD, ELEMENT BROIL
2	W10115994 Whirlpool Broil Element
3	W11550107 Whirlpool Oven Rack
4	W11186364 Whirlpool Oven Rack
5	ELEMENT, HIDDEN BAKE
6	W10860133 Whirlpool Convection Baffle
7	W10860984 Whirlpool Fan Motor
8	W10819914 Whirlpool Convection Fan
9	W10261523 Whirlpool Plate
10	W10794042 Whirlpool Nut
11	W11643125 Whirlpool Element
12	TRAY, HIDDEN BAKE
13	WP9755542 Whirlpool Oven Meat Probe
14	WP4449154 Whirlpool Screw
15	8186589 Whirlpool Jack Probe
16	WP9755546 Whirlpool Locknut
17	WP9755547 Whirlpool Lockwasher
