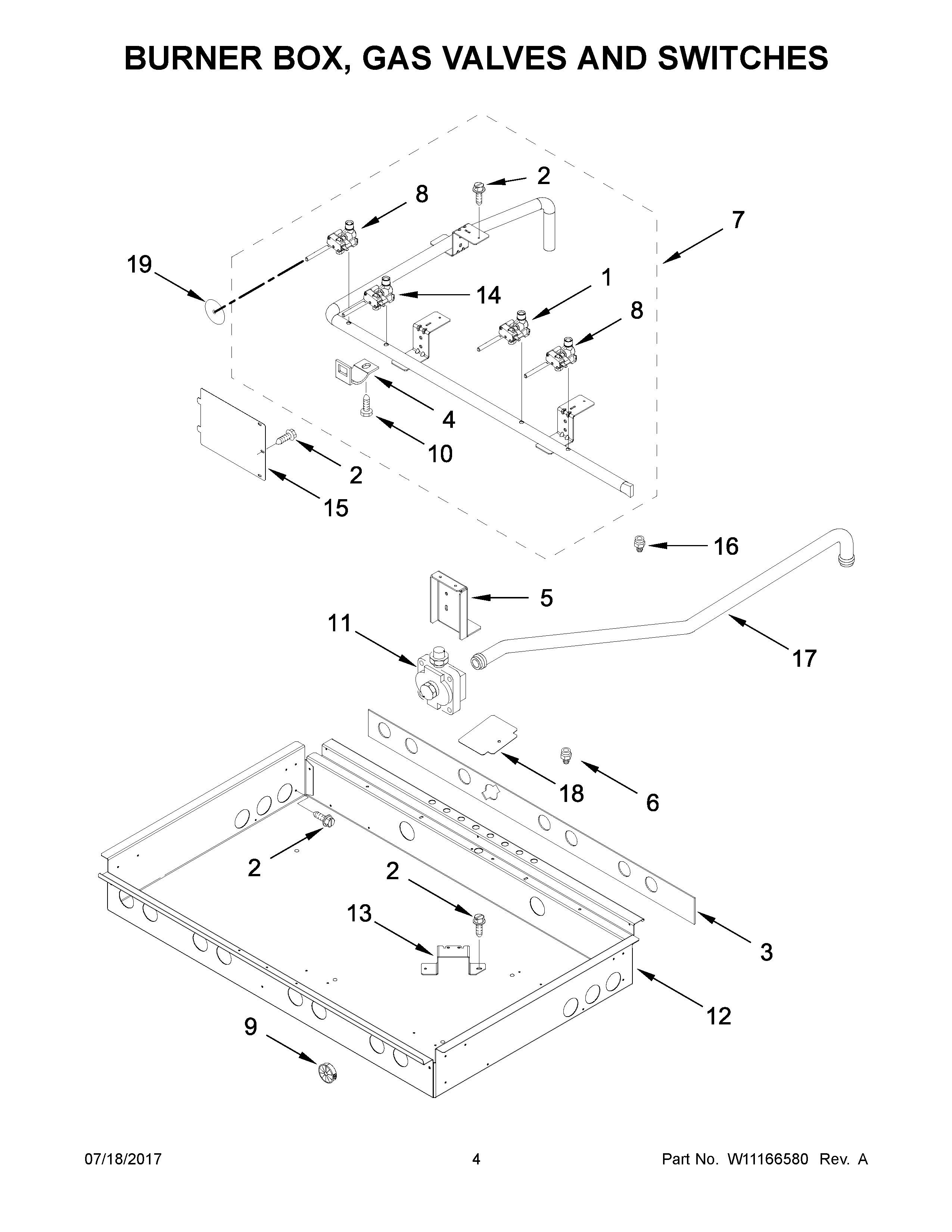

KDRS407VSD01 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

Position	Product
NI	WPW10353133 Whirlpool Gas Tubing
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10353154 Whirlpool Gas Tubing
NI	W10353152 Whirlpool Gas Tubing
NI	W10353141 Whirlpool Gas Tubing Assembly
NI	W10280797 Whirlpool Gas Tubing
1	WPW10385583 Whirlpool Burner Valve
2	SCREW
3	INSULATION, BURNER BOX
4	BRACKET, VALVE
5	W10115850 Whirlpool Mounting Bracket
6	4453115 Whirlpool Oven Adapter
7	W10402609 Whirlpool Manifold
8	WPW10385582 Whirlpool Burner Valve
9	W10189097 Whirlpool Bushing Assembly
10	W10189140 Whirlpool Screw
11	W10449141 Whirlpool Regulator
12	BOX, BURNER
13	W10560553 Whirlpool Mounting Bracket
14	WPW10371235 Whirlpool Burner Valve
15	W10115843 Whirlpool Access Cover
16	4453116 Whirlpool Oven Adapter
17	W10452066 Whirlpool Gas Tubing
18	W10287036 Whirlpool Access Cover
19	W10189177 Whirlpool Seal Switch
