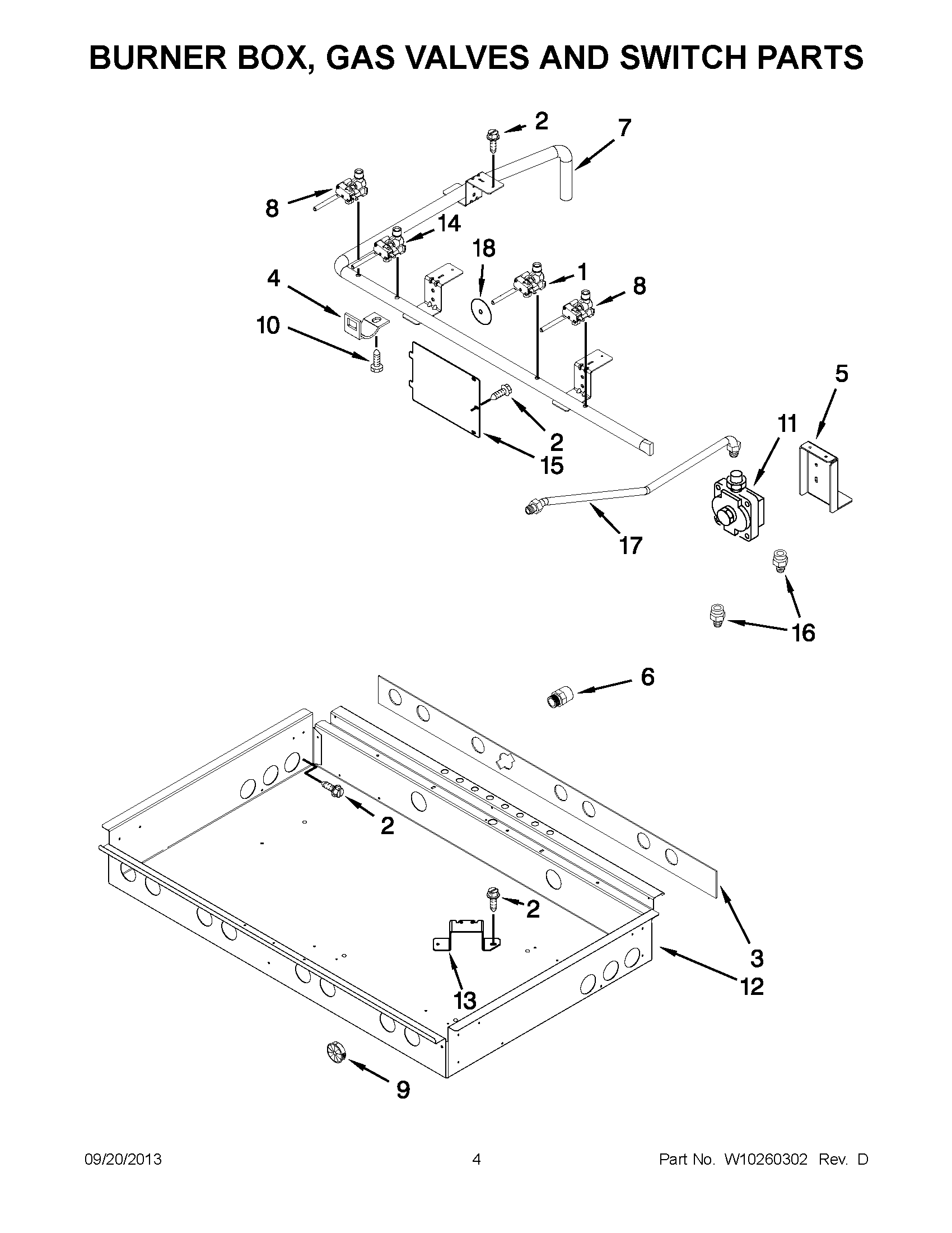

KDRS407VSS00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	TUBING, GAS (LEFT REAR)
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10115911 Whirlpool Gas Tubing
NI	W10115910 Whirlpool Gas Tubing
NI	W10280797 Whirlpool Gas Tubing
1	WPW10371235 Whirlpool Burner Valve
2	SCREW
3	INSULATION, BURNER BOX
4	W10189107 Whirlpool Mounting Bracket
5	W10115850 Whirlpool Mounting Bracket
6	4453115 Whirlpool Oven Adapter
7	W10115891 Whirlpool Manifold
8	WPW10326645 Whirlpool Burner Valve
9	W10189097 Whirlpool Bushing Assembly
10	W10189140 Whirlpool Screw
11	W10293267 Whirlpool Regulator Assembly
12	BURNER BOX
13	BRACKET, BURNER (RIGHT REAR)
13	BRACKET, BURNER (LEFT FRONT, LEFT REAR & RIGHT FRONT)
14	WPW10385583 Whirlpool Burner Valve
15	W10115843 Whirlpool Access Cover
16	4453116 Whirlpool Oven Adapter
17	W10269191 Whirlpool Gas Tubing
18	W10189177 Whirlpool Seal Switch
