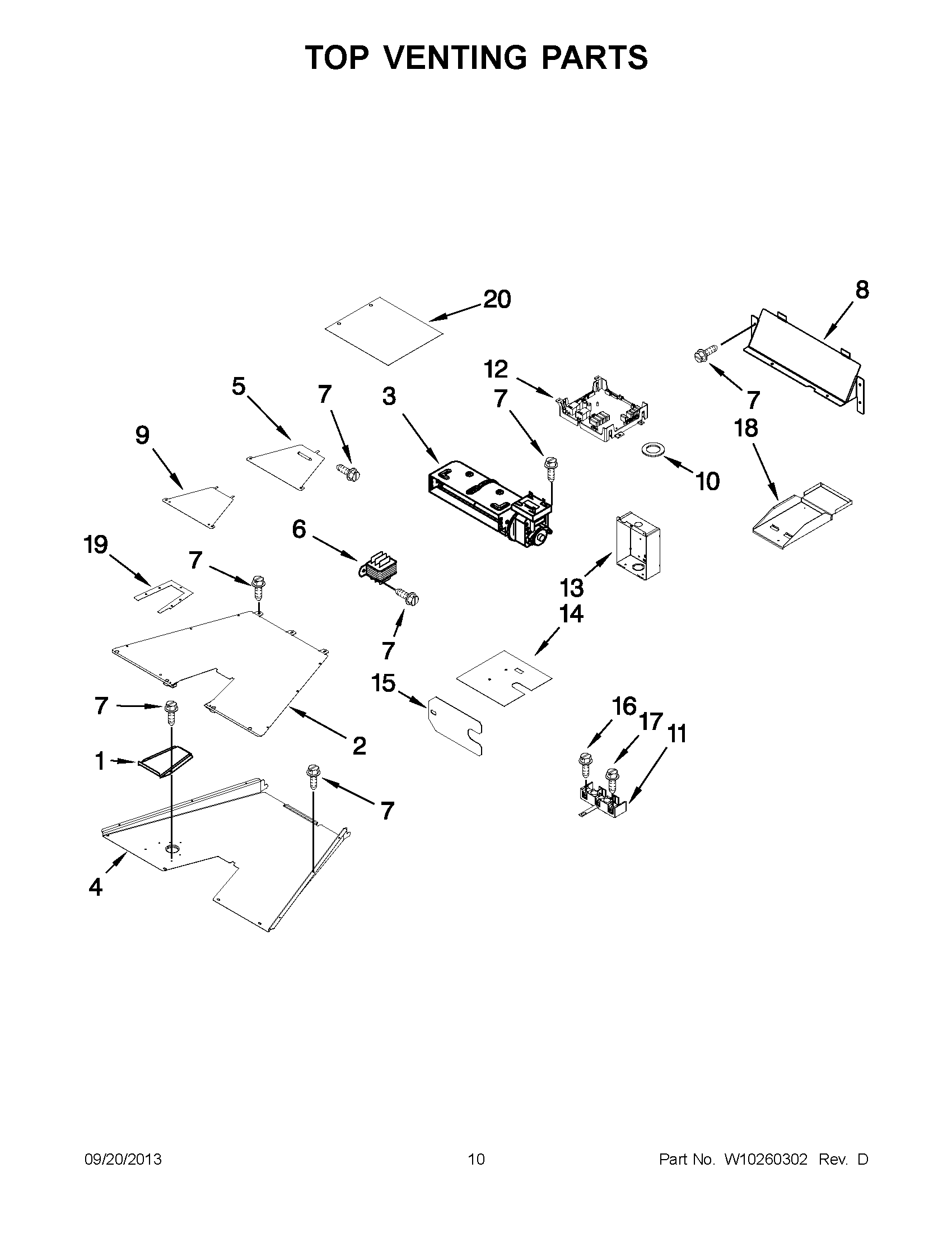

KDRS407VSS00 06 – TOP VENTING PARTS
Written by
in
KDRS407VSS00 06 – TOP VENTING PARTS
Products
Position
Product
1
W10246075 Whirlpool Exhaust Vent
2
VENT, COOLING TOP (30")
3
WPW10245511 Whirlpool Blower
4
W10246078 Whirlpool Vent Panel
5
PLATE, COOLING LATCH
6
WPW10111628 Whirlpool Transformer
7
SCREW
8
W10160844 Whirlpool Bracket Mounting
9
W10160858 Whirlpool Lid Cover
10
SEAL, CHIMNEY
11
WP9761958 Whirlpool Range Terminal Block
12
WPW10116185 Whirlpool Electronic Control Board
13
W10115858 Whirlpool Box Terminal
14
9759721 Whirlpool Oven Insulator
15
COVER, CHANNEL
16
WP3196163 Whirlpool Screw
17
SCREW
18
SUPPORT, CONTROL
19
W10270397 Whirlpool Vent Seal
20
W10239444 Whirlpool Foam Seal
←
