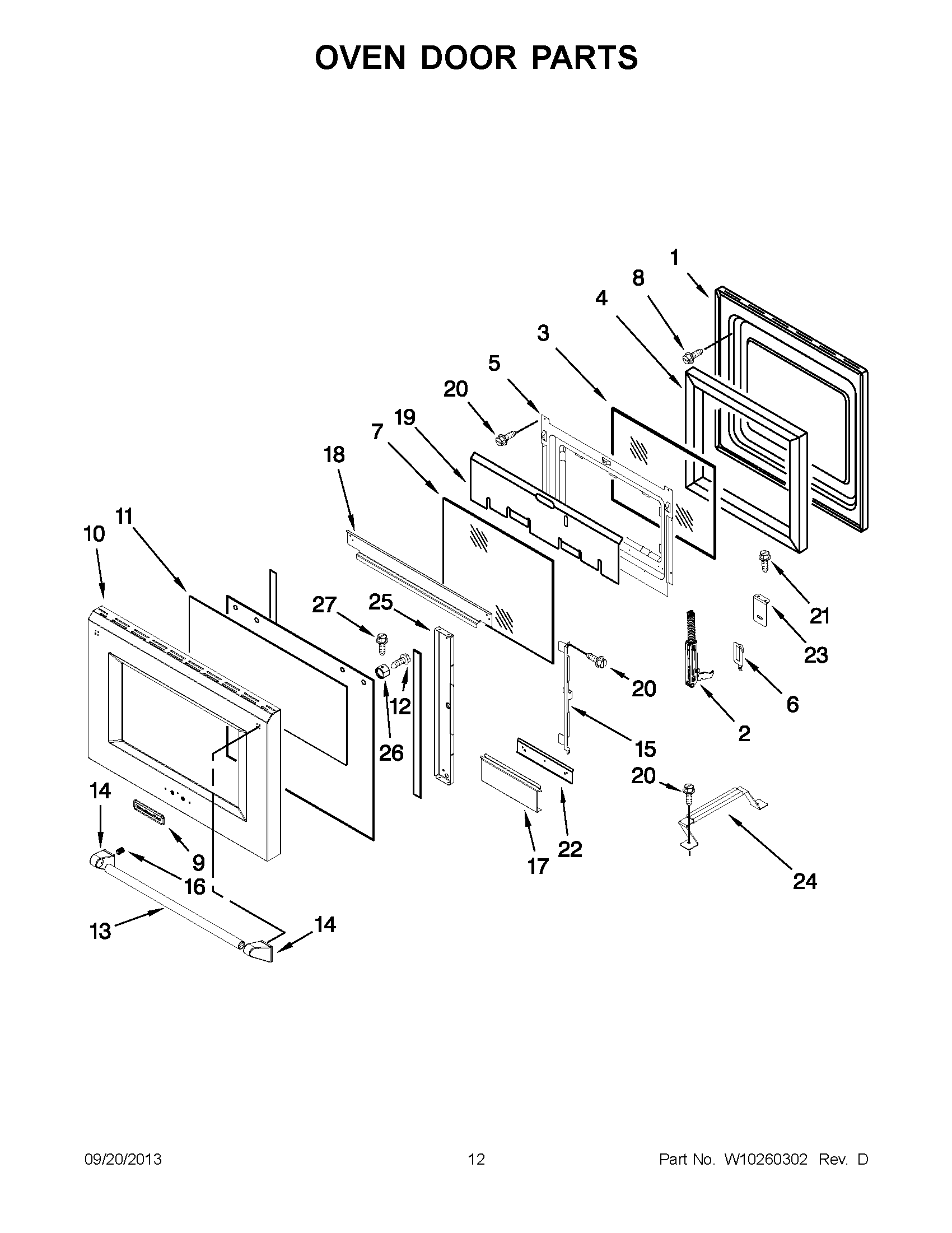

KDRS407VSS00 07 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	W10782123 Whirlpool Door Hinge Assembly
2	W10782122 Whirlpool Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4457132 Whirlpool Retainer
6	W10115877 Whirlpool Cover
6	W10115876 Whirlpool Cover
7	WP9759225 Whirlpool Inner Door Glass
8	WPW10292297 Whirlpool Screw
9	W10852683 Whirlpool Nameplate
10	PANEL, DOOR (STAINLESS)
11	GLASS, OUTER DOOR
12	W10217130 Whirlpool Screw
13	W10115720 Whirlpool Door Handle
14	W10226025 Whirlpool Handle Endcap
14	END CAP, HANDLE (LEFT)
15	WP9759229 Whirlpool Mounting Bracket
16	W10771437 Whirlpool Screw
17	BRACKET, OUTER GLASS (BOTTOM)
18	W10145805 Whirlpool Glass Bracket
19	SHIELD, HEAT TOP
20	WP3196557 Whirlpool Screw
21	SCREW
22	4457114 Whirlpool Oven Heat Shield
23	W10115715 Whirlpool Bracket Mounting
24	Bracket (3rd Glsss)
25	BRACKET, OUTER GLASS (SIDE)
26	SUPPORT, HANDLE
27	W10061760 Whirlpool Screw
