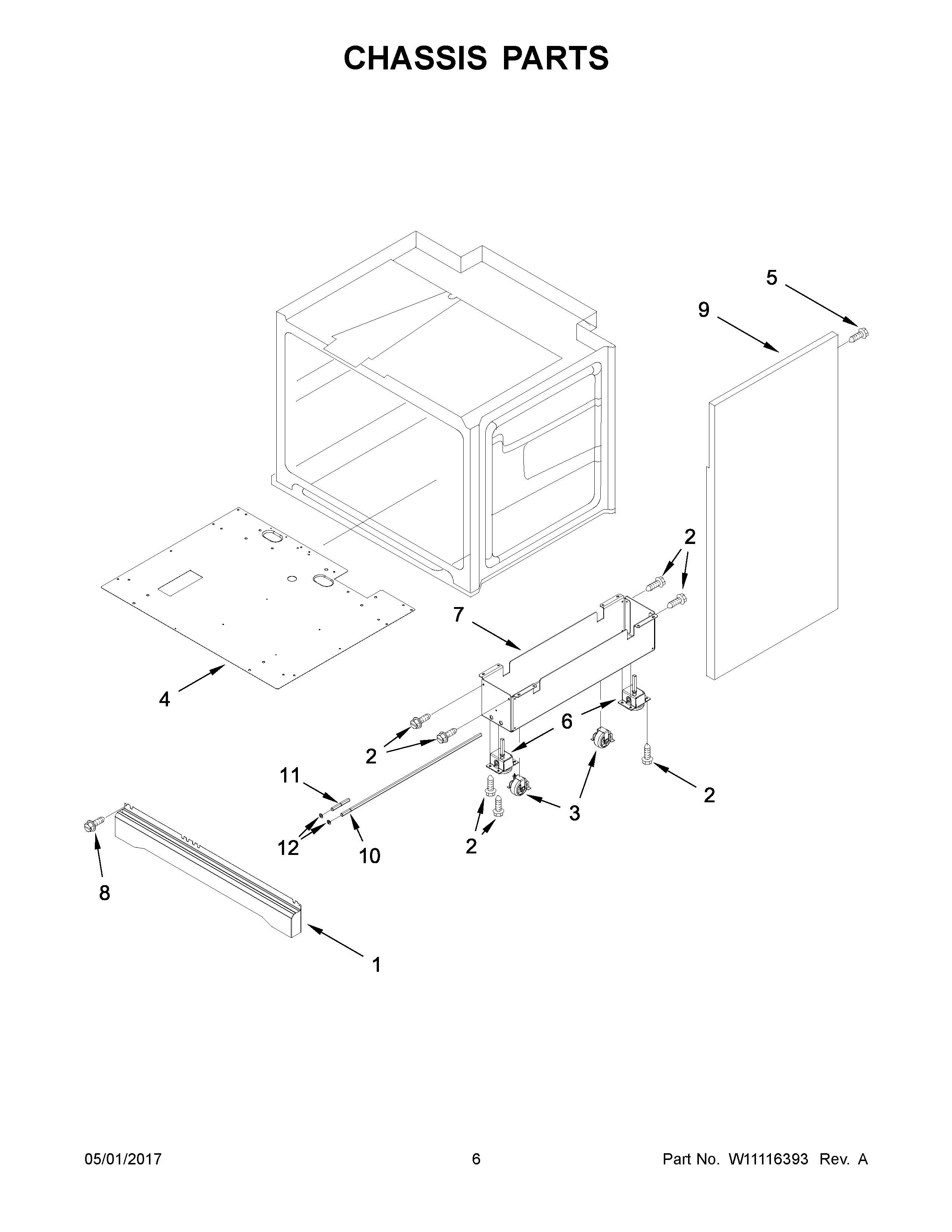

KDRS407VSS05 04 – CHASSIS PARTS

KDRS407VSS05 04 – CHASSIS PARTS

Written by

in

KDRS407VSS05 04 – CHASSIS PARTS

Products

PositionProduct
1KICKPLATE
2WP4449743 Whirlpool Screw
3WPW10138054 Whirlpool Refrigerator Cabinet Roller
4DUCT, BOTTOM
6W10859931 Whirlpool Foot Level
7W10249333 Whirlpool Dishwasher Mounting Bracket
8WP3196557 Whirlpool Screw
9AW11333303 Whirlpool Side Complete Assembly
9WPW10250465 Whirlpool Cabinet Panel
10W10115869 Whirlpool Shaft
11W10115793 Whirlpool Shaft
12489504 Whirlpool Oven Ring
