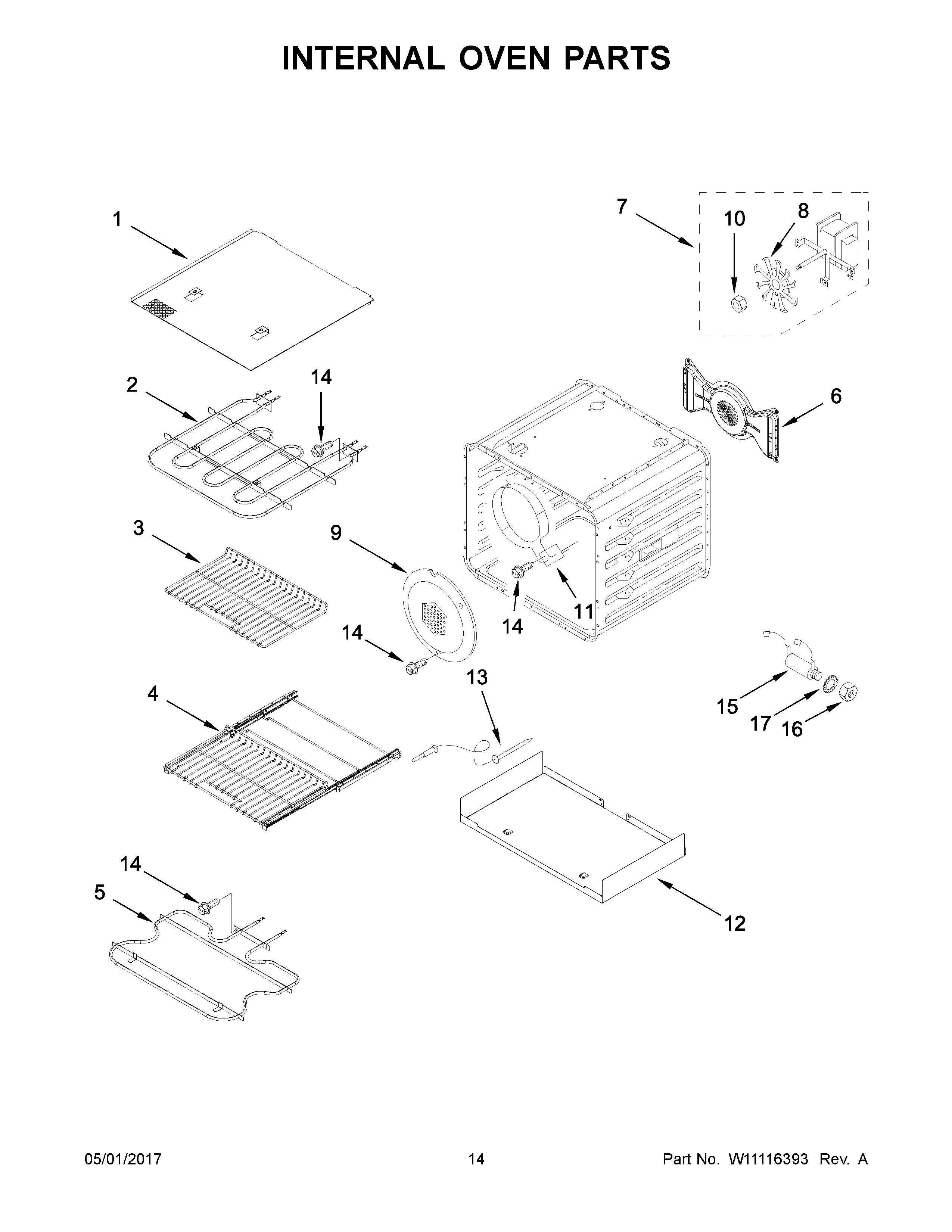

KDRS407VSS05 08 – INTERNAL OVEN PARTS

Products

PositionProduct
1SHIELD, ELEMENT BROIL
2W10115994 Whirlpool Broil Element
3W11550107 Whirlpool Oven Rack
4W11186364 Whirlpool Oven Rack
5ELEMENT, HIDDEN BAKE
6W10860133 Whirlpool Convection Baffle
7W10860984 Whirlpool Fan Motor
8W10819914 Whirlpool Convection Fan
9W10261523 Whirlpool Plate
10W10794042 Whirlpool Nut
11W11643125 Whirlpool Element
12TRAY, HIDDEN BAKE
13WP9755542 Whirlpool Oven Meat Probe
14WP4449154 Whirlpool Screw
158186589 Whirlpool Jack Probe
16WP9755546 Whirlpool Locknut
17WP9755547 Whirlpool Lockwasher
