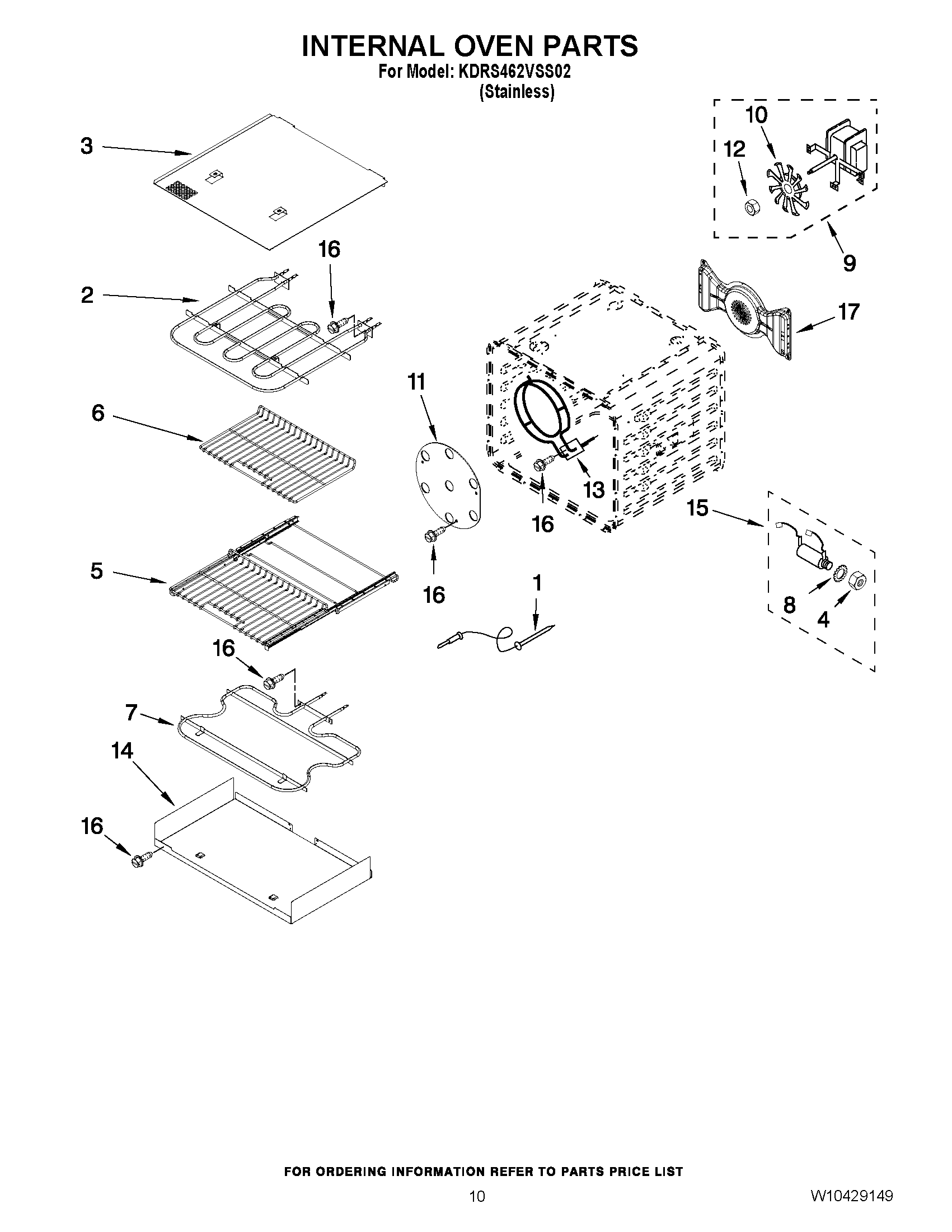

KDRS462VSS02 07 – INTERNAL OVEN PARTS

Products

Position	Product
1	WP9755542 Whirlpool Oven Meat Probe
2	W10857686 Whirlpool Broil Element
3	SHIELD, BROIL ELEMENT
4	WP9755546 Whirlpool Locknut
5	RACK, SLIDING
6	W10822069 Whirlpool Oven Rack
7	W10860270 Whirlpool Bake Element Assembly
8	WP9755547 Whirlpool Lockwasher
9	W10794022 Whirlpool Oven Cooktop Fan Motor
10	W10758272 Whirlpool Convection Fan
11	W10261523 Whirlpool Plate
12	WPW10116349 Whirlpool Nut
13	W11643125 Whirlpool Element
14	TRAY, HIDDEN BAKE
15	8186589 Whirlpool Jack Probe
16	WP4449154 Whirlpool Screw
17	W10860133 Whirlpool Convection Baffle
