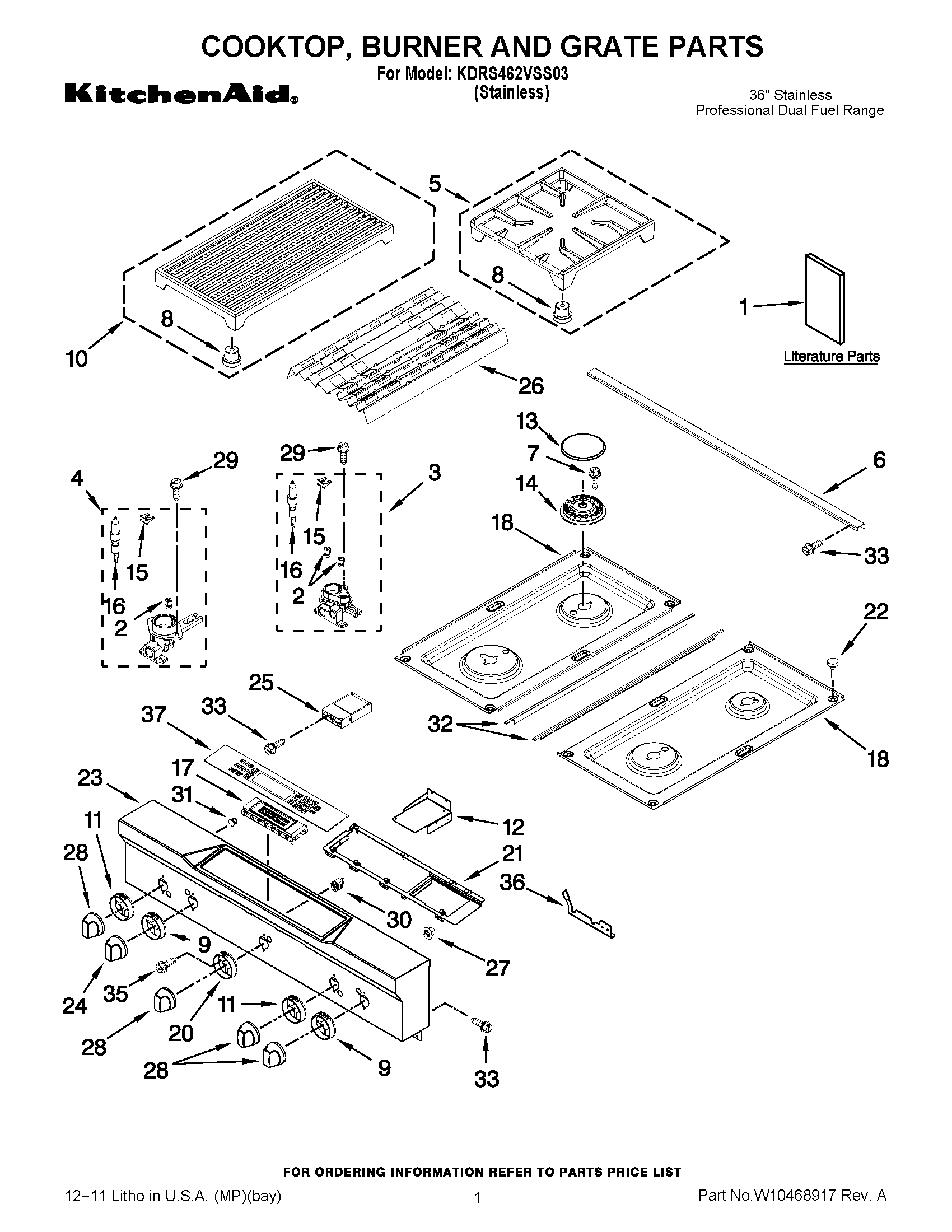

KDRS462VSS03 01 – COOKTOP, BURNER AND GRATE PARTS

KDRS462VSS03 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KDRS462VSS03 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1SHEET, TECH (ENGLISH)
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1SHEET, TECH (FRENCH)
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
2W11051480 Whirlpool Orifice Assembly
2W10819958 Whirlpool Orifice Spud
2SPUD-ORFCE
24456495 Whirlpool Oven Orifice
3WPW10364555 Whirlpool Orifice Holder
4W10282659 Whirlpool Orifice Holder
4WPW10364556 Whirlpool Orifice Holder
5WPW10115928 Whirlpool Burner Grate
6W10269217 Whirlpool Trim Top Assembly
7WPW10373929 Whirlpool Screw
8W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9W10261510 Whirlpool Knob Bezel
10W11241676 Whirlpool Grille Grate
11W10261512 Whirlpool Knob Bezel
12BRACKET, SPARK MODULE
13CAP-BURNER
13CAP-BURNER
13CAP-BURNER
14BURNR-HEAD
14W11106799 Whirlpool Range Burner Base Surface
14BURNR-HEAD
158286863 Whirlpool Oven Clip
15W10256046 Whirlpool Clip
16WPW10145991 Whirlpool Surface Igniter
16W10833887 Whirlpool Surface Igniter
17WPW10298119-includeCORE Whirlpool WPW10298119 Refrigerator Electronic Control Board with Core
18W10352968 Whirlpool Cooktop
18W10352969 Whirlpool Cooktop Assembly
20BEZEL, GRILL
21W10250476 Whirlpool Mounting Bracket
224448520 Whirlpool Oven Bumper
23PANEL, CONTROL
24W11244176 Whirlpool Knob Assembly
25MODULE, SPARK
26WAVE, TRAY
27WPL 7103P16660
28W11177673 Whirlpool Knob
29WP3177991 Whirlpool Screw
30W10116114 Whirlpool Indicator Light
31W10116115 Whirlpool Light Lens
32W10291193 Whirlpool Trim Top
33SCREW
35SCREW
36W10130759 Whirlpool Mounting Bracket
36W10130760 Whirlpool Bracket Mounting
37WPW10116104 Whirlpool Membrane Switch
