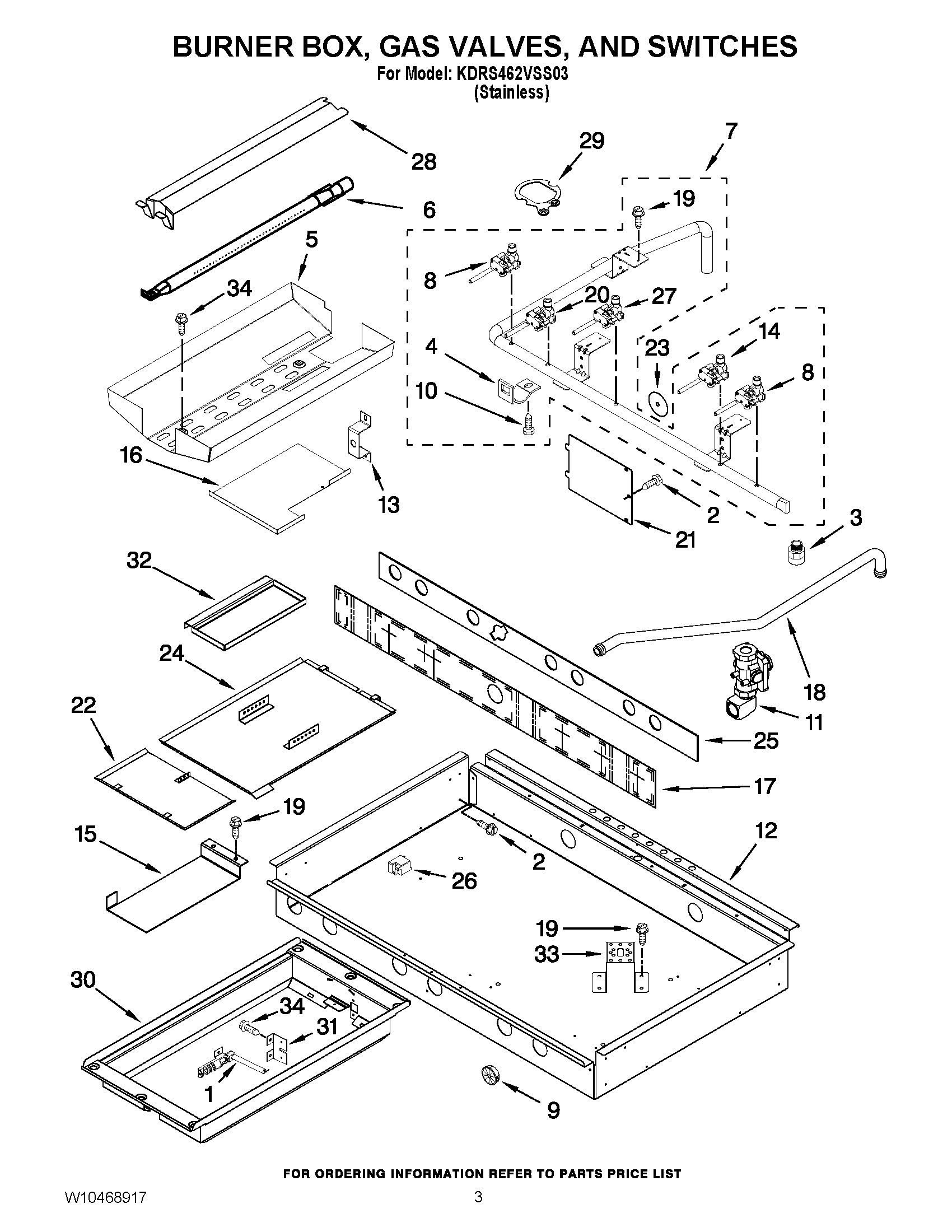

KDRS462VSS03 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIW10280797 Whirlpool Gas Tubing
NIW10158807 Whirlpool Burner Tube
NIW10353152 Whirlpool Gas Tubing
NIW10353141 Whirlpool Gas Tubing Assembly
NIW10353154 Whirlpool Gas Tubing
NIWPW10353133 Whirlpool Gas Tubing
1W10268770 Whirlpool Surface Igniter
34453115 Whirlpool Oven Adapter
34453116 Whirlpool Oven Adapter
4BRACKET, VALVE
5DEFLECTOR, GRILL
6W10223569 Whirlpool Burner Grille
7WPW10402600 Whirlpool Manifold
8WPW10385582 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
11W10293267 Whirlpool Regulator Assembly
12BURNER BOX
13BRACKET, GRILL ORIFICE MOUNTING
14WPW10385583 Whirlpool Burner Valve
15SHIELD, GREASE
16HOLDER, DRIP TRAY
17INSULATION, GRILL
18W10269191 Whirlpool Gas Tubing
19SCREW
20WPW10371235 Whirlpool Burner Valve
21W10115843 Whirlpool Access Cover
22W10250468 Whirlpool Grille Guard
23W10423373 Whirlpool Switch Seal
24DRIP TRAY, ROUTER 1
25W11688578 Whirlpool Insulation
26W11601369 Whirlpool Spark Module
27W10385584 Whirlpool Grill Valve
28FLAME SPREADER
298286930 Whirlpool Oven Gasket
30WPW10267890 Whirlpool Module
31BRACKET, GRILL IGNITOR
32W10250473 Whirlpool Drip Tray
33W10369547 Whirlpool Mounting Bracket
34SCREW
