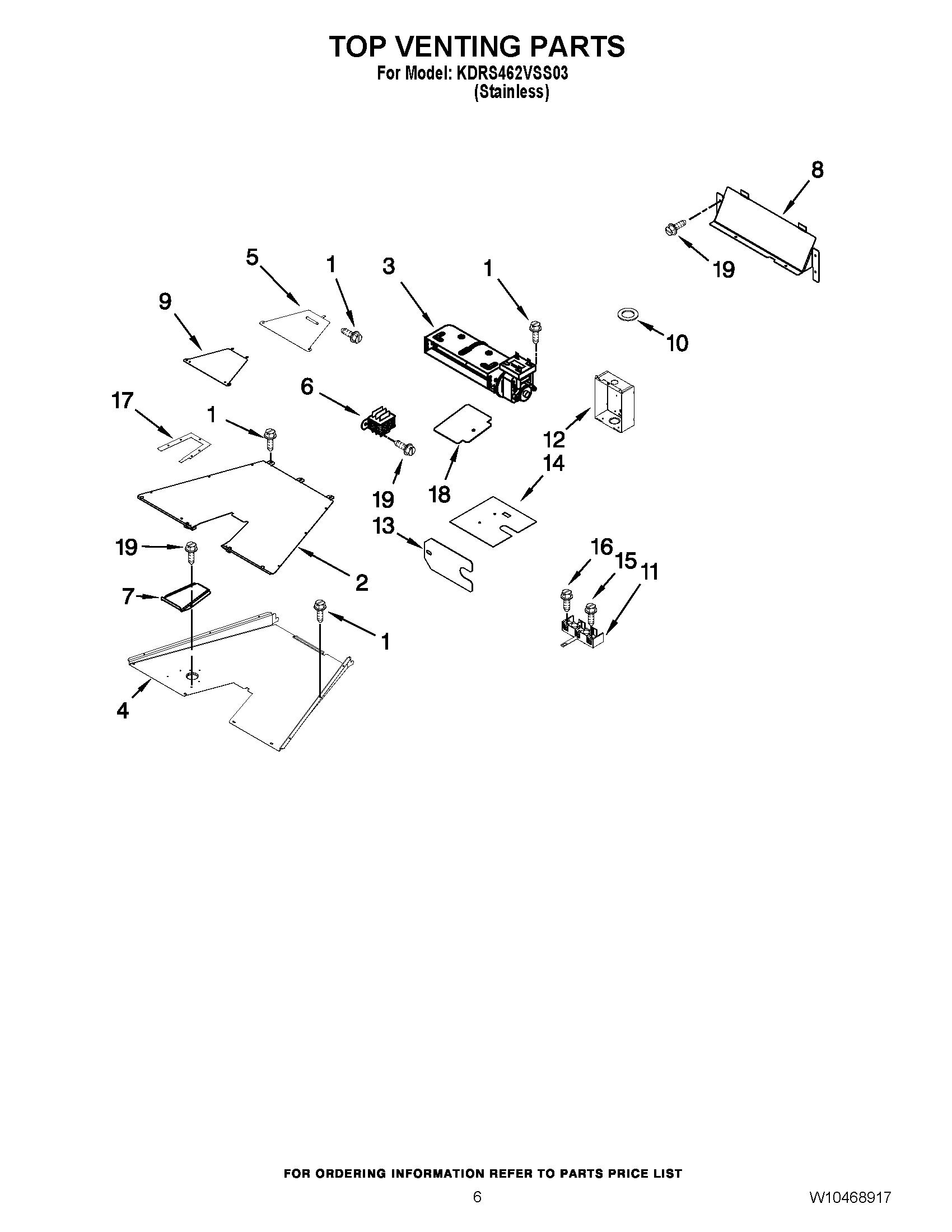

KDRS462VSS03 04 – TOP VENTING PARTS

KDRS462VSS03 04 – TOP VENTING PARTS

Written by

in

KDRS462VSS03 04 – TOP VENTING PARTS

Products

PositionProduct
1WP12990527 Whirlpool Microwave Screw
2VENT, COOLING TOP (30")
3WPW10245511 Whirlpool Blower
4W10246078 Whirlpool Vent Panel
5PLATE, COOLING LATCH
6WPW10111628 Whirlpool Transformer
7W10246075 Whirlpool Exhaust Vent
8W10160844 Whirlpool Bracket Mounting
9W10160858 Whirlpool Lid Cover
10SEAL, CHIMNEY
11WP9761958 Whirlpool Range Terminal Block
12W10115858 Whirlpool Box Terminal
13COVER, CHANNEL
149759721 Whirlpool Oven Insulator
15WP3400015 Whirlpool Screw
16WP3196163 Whirlpool Screw
17W10270397 Whirlpool Vent Seal
18W10287036 Whirlpool Access Cover
19SCREW
