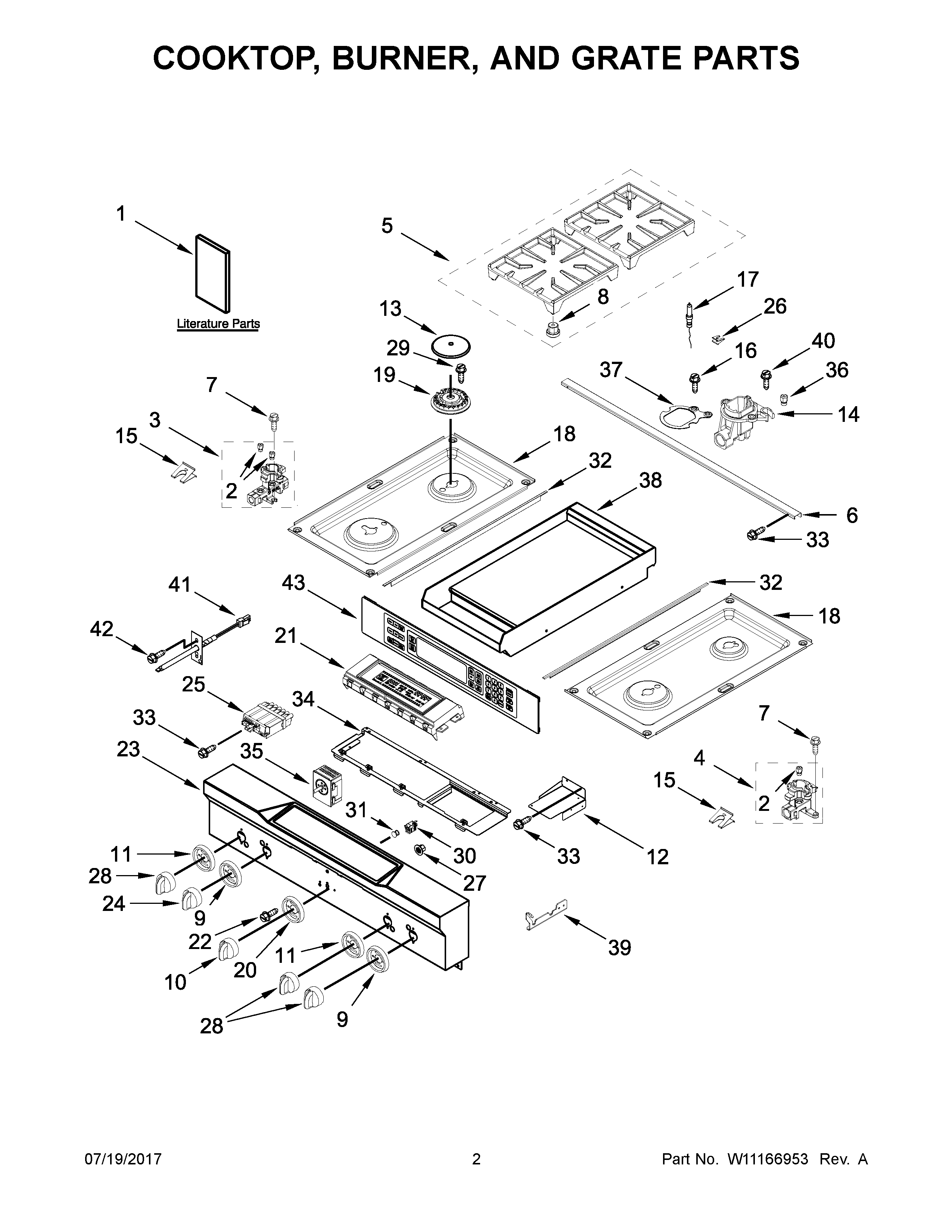

KDRS463VMW01 02 – COOKTOP, BURNER, AND GRATE PARTS

KDRS463VMW01 02 – COOKTOP, BURNER, AND GRATE PARTS

Written by

in

KDRS463VMW01 02 – COOKTOP, BURNER, AND GRATE PARTS

Products

PositionProduct
NI9757778 Whirlpool Oven Bushing
NIWPL 8019P01360
NIWPL 8010P08660
NIW10856625 Whirlpool Venturi
NIW10763501 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NIW10726866 Whirlpool Wire Harness
NIW10494088 Whirlpool Wire Harness
NIW10338986 Whirlpool Wire Harness
NISCREW, ANTI-TIP KIT
NIW11544575 Whirlpool Anti-Tip Bracket
NIW10116182 Whirlpool Wire Harness
NIWPL W10327536
NIWPL W10766100
NIWP112432 Whirlpool Nut Assembly
NICABINET (NOT A SERVICEABLE PART)
NI4450800 Whirlpool Oven Screw
NIWPL W10283996
NI16515 Whirlpool Clip
NI8287106 Whirlpool Clip Assembly
1BGUIDE, USE & CARE
1SHEET, TECH (ENGLISH)
1ASHEET, TECH (FRENCH)
1CINSTRUCTIONS, INSTALLATION
2BW11051480 Whirlpool Orifice Assembly
2W10657945 Whirlpool Orifice Spud
2AW10819958 Whirlpool Orifice Spud
3W10846622 Whirlpool Orifice Holder
4W10846623 Whirlpool Orifice Holder
5W11569347 Whirlpool Grate Kit
6W10269217 Whirlpool Trim Top Assembly
7WP3177991 Whirlpool Screw
88186321 Whirlpool Range Foot Pads Set of 4
9BEZEL, FRONT
10W10250390 Whirlpool Knob
10AW11107763 Whirlpool Knob
11BEZEL, REAR
12BRACKET, SPARK MODULE
13ACAP-BURNER
13CAP-BURNER
13BCAP-BURNER
14W10883622 Whirlpool Orifice Holder
15W11684564 Whirlpool Clip Assembly
16W11676349 Whirlpool Screw
17W10146042 Whirlpool Surface Igniter
18AW10352968 Whirlpool Cooktop
18W10352969 Whirlpool Cooktop Assembly
19BBURNR-HEAD
19W11106799 Whirlpool Range Burner Base Surface
19ABURNR-HEAD
20BEZEL, GRIDDLE
21WPW10298119-includeCORE Whirlpool WPW10298119 Refrigerator Electronic Control Board with Core
22SCREW
23WPW10284668 Whirlpool Control Panel
24AW11103350 Whirlpool Knob
24W11244176 Whirlpool Knob Assembly
25WPW10475147 Whirlpool Spark Module
268286863 Whirlpool Oven Clip
27WPL 7103P16660
28W11177673 Whirlpool Knob
28AW11103351 Whirlpool Knob Assembly
29W11241230 Whirlpool Screw
30W10116151 Whirlpool Indicator Light
31W10116115 Whirlpool Light Lens
32W10291193 Whirlpool Trim Top
33SCREW
34W10250476 Whirlpool Mounting Bracket
35WPW10116113 Whirlpool Infinite Switch
36W10791075 Whirlpool Orifice Spud
378286930 Whirlpool Oven Gasket
38W10625221 Whirlpool Module
39W10130760 Whirlpool Bracket Mounting
39AW10130759 Whirlpool Mounting Bracket
40W10491985 Whirlpool Screw
41W10319835 Whirlpool Sensor
42SCREW
43WPW10116104 Whirlpool Membrane Switch
