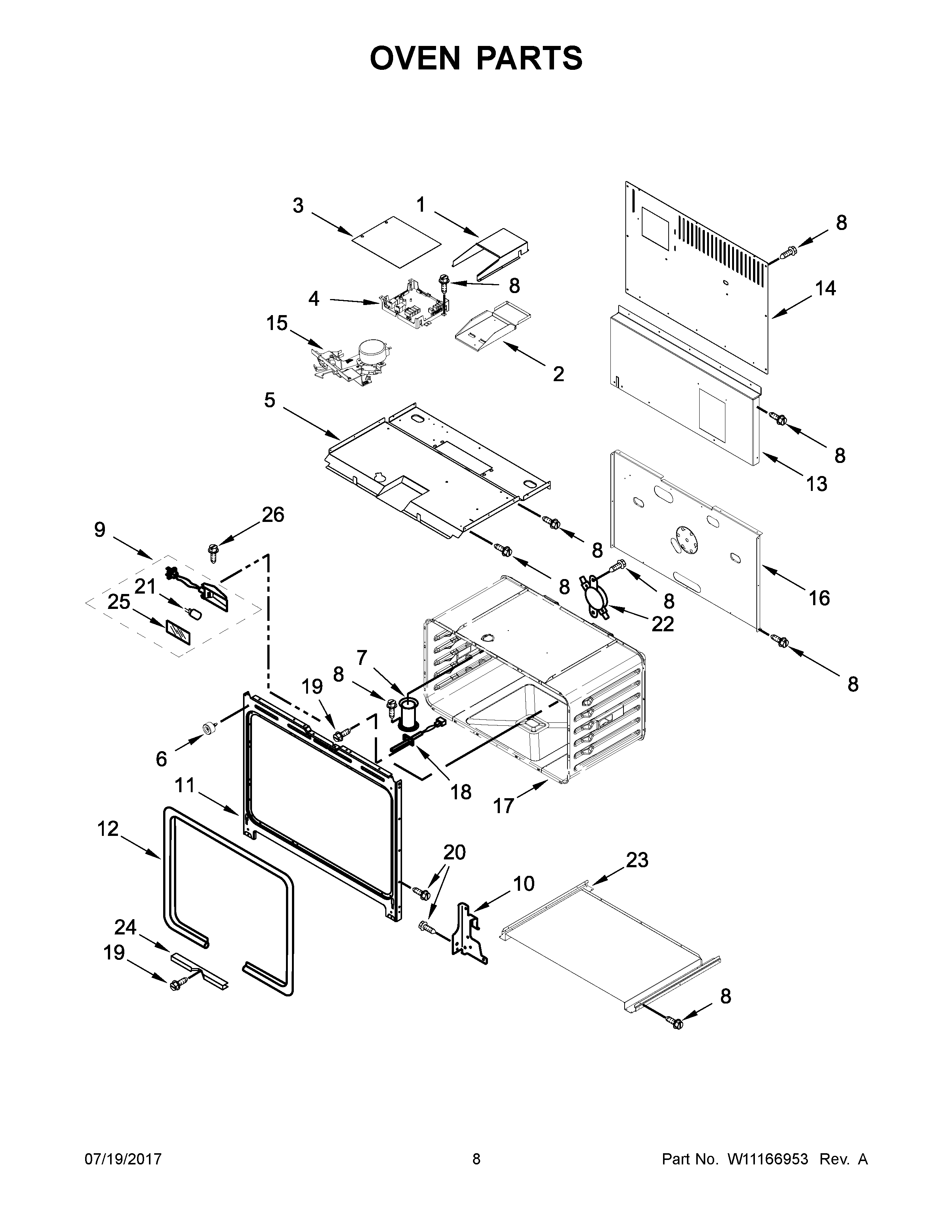

KDRS463VMW01 05 – OVEN PARTS

Products

Position	Product
NI	WP3400968 Whirlpool Nut
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10160807 Whirlpool Insulation
NI	W10860322 Whirlpool Insulation
1	ASSEMBLY, DRAWER
2	SUPPORT, CONTROL
3	W10239444 Whirlpool Foam Seal
4	W10852104 Whirlpool Electronic Control Board + Core
5	TOP, CHASSIS
6	W10105790 Whirlpool Bumper
7	TUBE, VENT
8	SCREW
9	WPW10307114 Whirlpool Light
10	WP4455605 Whirlpool Left Hand Hinge
10A	WP4455606 Whirlpool Right Hand Hinge
11	W10160867 Whirlpool Front Frame
12	W11676901 Whirlpool Range Gasket
13	PANEL, BACK BOTTOM
14	W10269208 Whirlpool Rear Cover
15	W11029221 Whirlpool Door Latch
16	BACK, CHASSIS
18	WPW10131825 Whirlpool Oven Temperature Sensor
19	WP4449154 Whirlpool Screw
20	Screw
21	BULB-LIGHT
22	WP4449751 Whirlpool Range Oven Thermostat Fix
23	W10235536 Whirlpool Main Bottom
24	W11368870 Whirlpool Retainer Assembly
25	W10169756 Whirlpool Light Lens
26	4449748 Whirlpool Oven Screw
