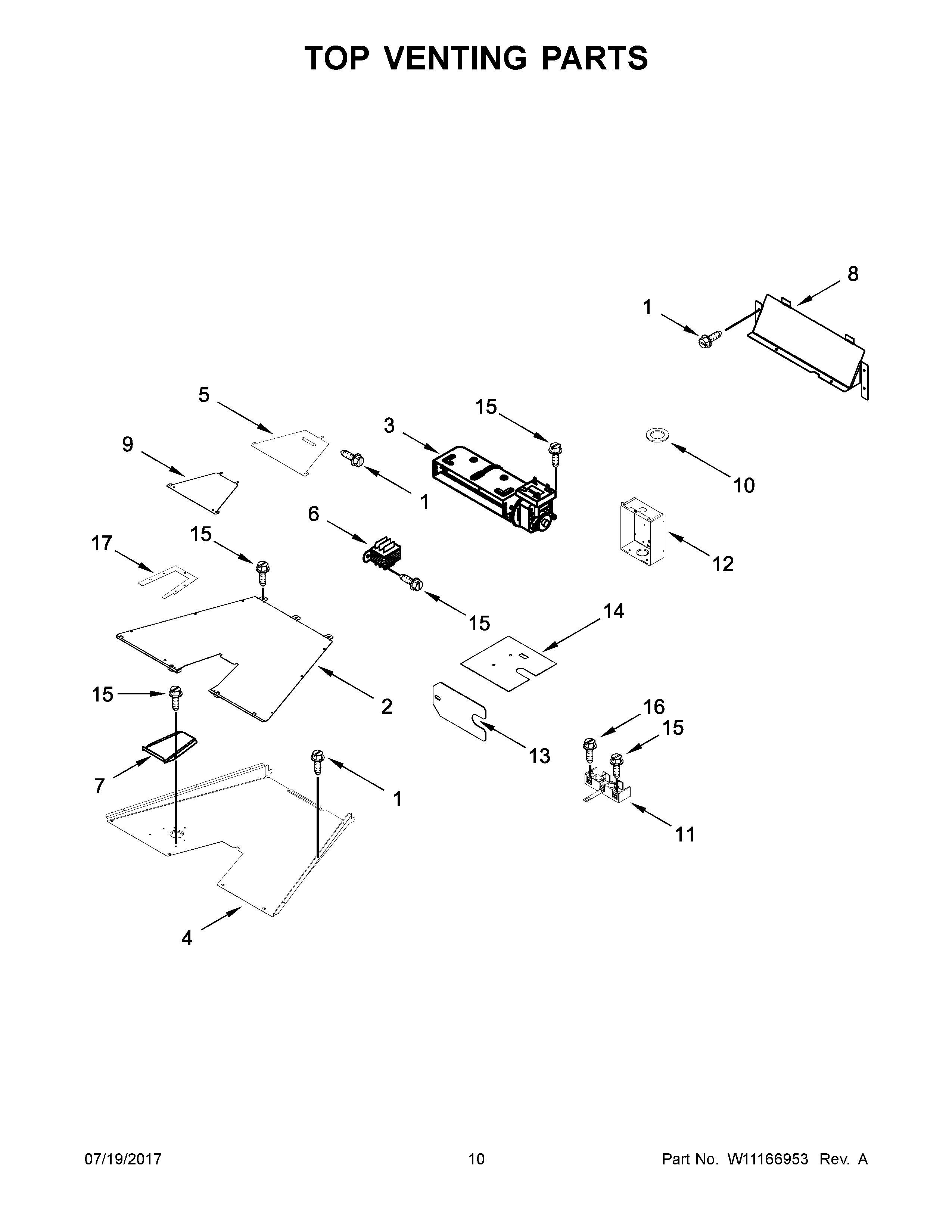

KDRS463VMW01 06 – TOP VENTING PARTS

Products

Position	Product
1	SCREW
2	VENT, COOLING TOP (30")
3	WPW10245511 Whirlpool Blower
4	W10246078 Whirlpool Vent Panel
5	PLATE, COOLING LATCH
6	W10495854 Whirlpool Transformer
7	SLOPE, EXHAUST VENT (30")
8	W10160844 Whirlpool Bracket Mounting
9	W10160858 Whirlpool Lid Cover
10	SEAL, CHIMNEY
11	WP9761958 Whirlpool Range Terminal Block
12	W10467022 Whirlpool Box Terminal
13	COVER, CHANNEL
14	9759721 Whirlpool Oven Insulator
15	WP3400015 Whirlpool Screw
16	WP3196163 Whirlpool Screw
17	W10270397 Whirlpool Vent Seal
