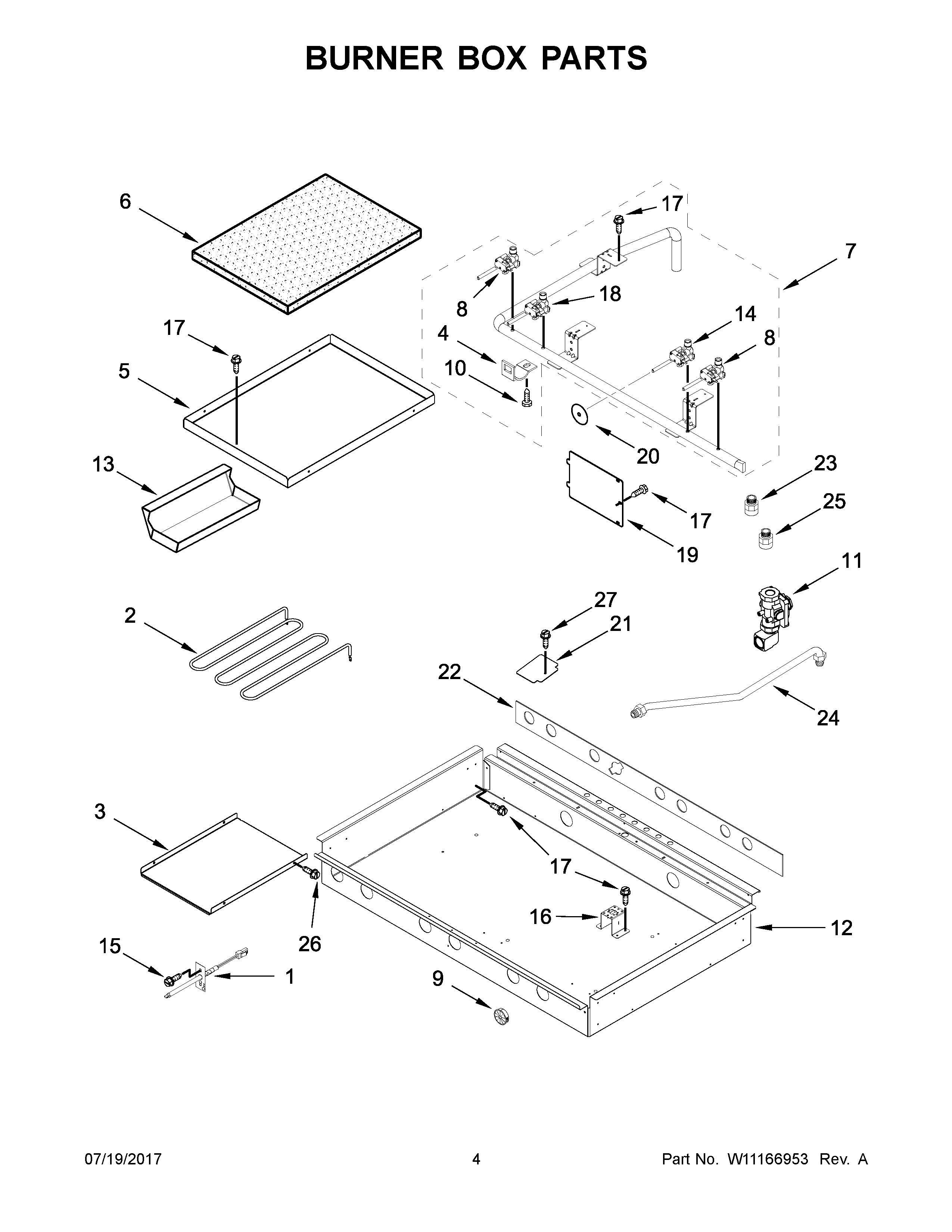

KDRS463VSD01 03 – BURNER BOX PARTS

Products

Position	Product
NI	WPW10353133 Whirlpool Gas Tubing
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10353154 Whirlpool Gas Tubing
NI	W10353152 Whirlpool Gas Tubing
NI	W10353141 Whirlpool Gas Tubing Assembly
NI	W10280797 Whirlpool Gas Tubing
1	W10319835 Whirlpool Sensor
2	W10138296 Whirlpool Element Grille
3	W10145620 Whirlpool Bottom Model
4	BRACKET, VALVE
5	W10246074 Whirlpool Insulation Tray
6	W11684995 Whirlpool Insulation
7	W10402610 Whirlpool Manifold
8	WPW10385582 Whirlpool Burner Valve
9	W10189097 Whirlpool Bushing Assembly
10	W10189140 Whirlpool Screw
11	W10449141 Whirlpool Regulator
12	W10371516 Whirlpool Burner Box
13	W10276497 Whirlpool Drip Tray
14	WPW10385583 Whirlpool Burner Valve
15	SCREW
16	W10560553 Whirlpool Mounting Bracket
17	SCREW
18	WPW10371235 Whirlpool Burner Valve
19	W10115843 Whirlpool Access Cover
20	W10189177 Whirlpool Seal Switch
21	W10287036 Whirlpool Access Cover
22	W11688578 Whirlpool Insulation
23	4453116 Whirlpool Oven Adapter
24	W10269191 Whirlpool Gas Tubing
25	4453115 Whirlpool Oven Adapter
26	SCREW
27	WP486754 Whirlpool Compactor Screw
