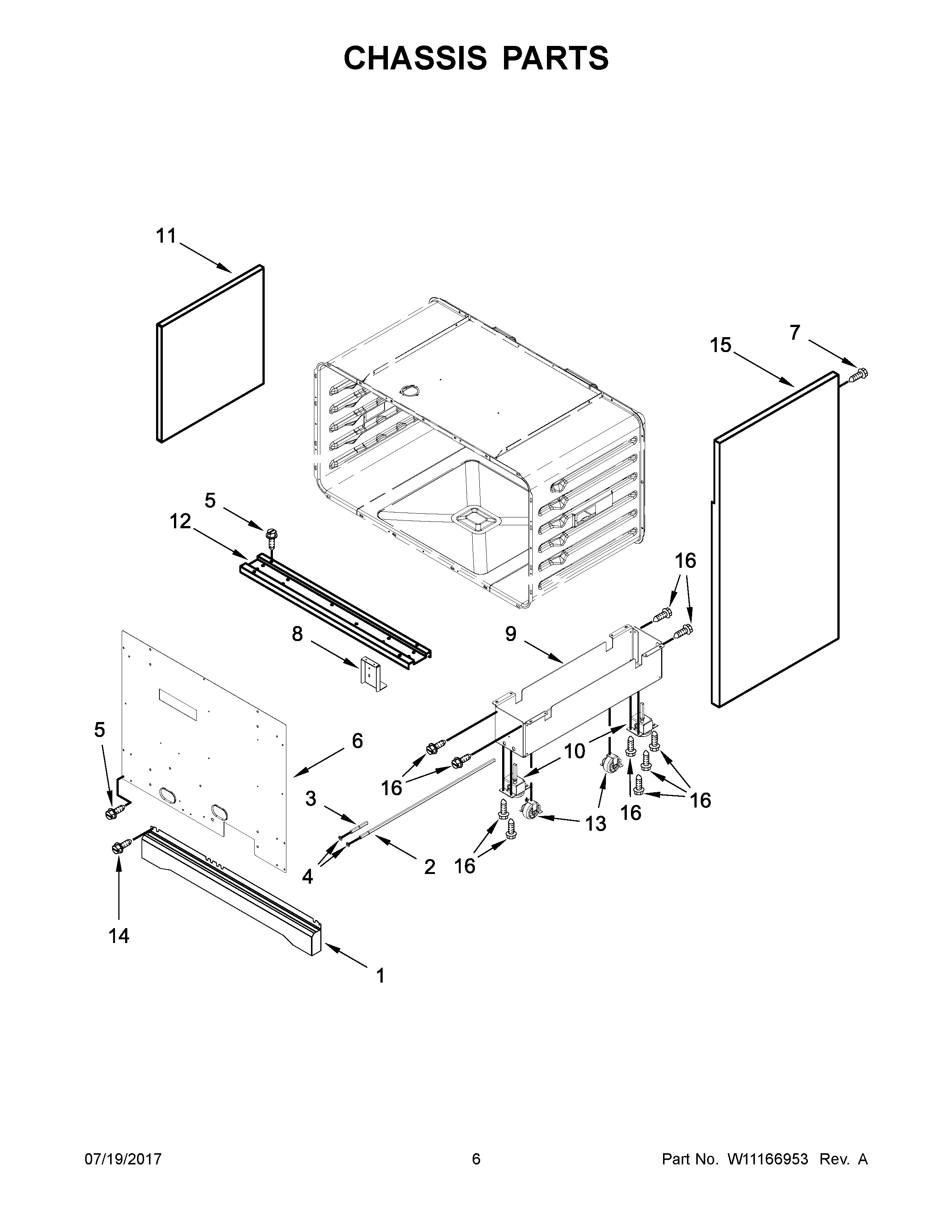

KDRS463VSD01 04 – CHASSIS PARTS

KDRS463VSD01 04 – CHASSIS PARTS

Written by

in

KDRS463VSD01 04 – CHASSIS PARTS

Products

PositionProduct
1W11127306 Whirlpool Cover Plate
1AW11134154 Whirlpool Cover Plate
1BW11127307 Whirlpool Cover Plate
1CKICKPLATE (SIGNATURE RED)
2W10115869 Whirlpool Shaft
3W10115793 Whirlpool Shaft
4489504 Whirlpool Oven Ring
5SCREW
6W10269196 Whirlpool Duct
8W10115850 Whirlpool Mounting Bracket
9W10249333 Whirlpool Dishwasher Mounting Bracket
10W10859931 Whirlpool Foot Level
11AW10269205 Whirlpool Side Compartment
11W10269206 Whirlpool Side Compartment
12W10269193 Whirlpool Support
13WPW10138054 Whirlpool Refrigerator Cabinet Roller
14AWP3196557 Whirlpool Screw
14WP3400832 Whirlpool Screw
15WPW10250465 Whirlpool Cabinet Panel
15AW11333303 Whirlpool Side Complete Assembly
16WP4449743 Whirlpool Screw
