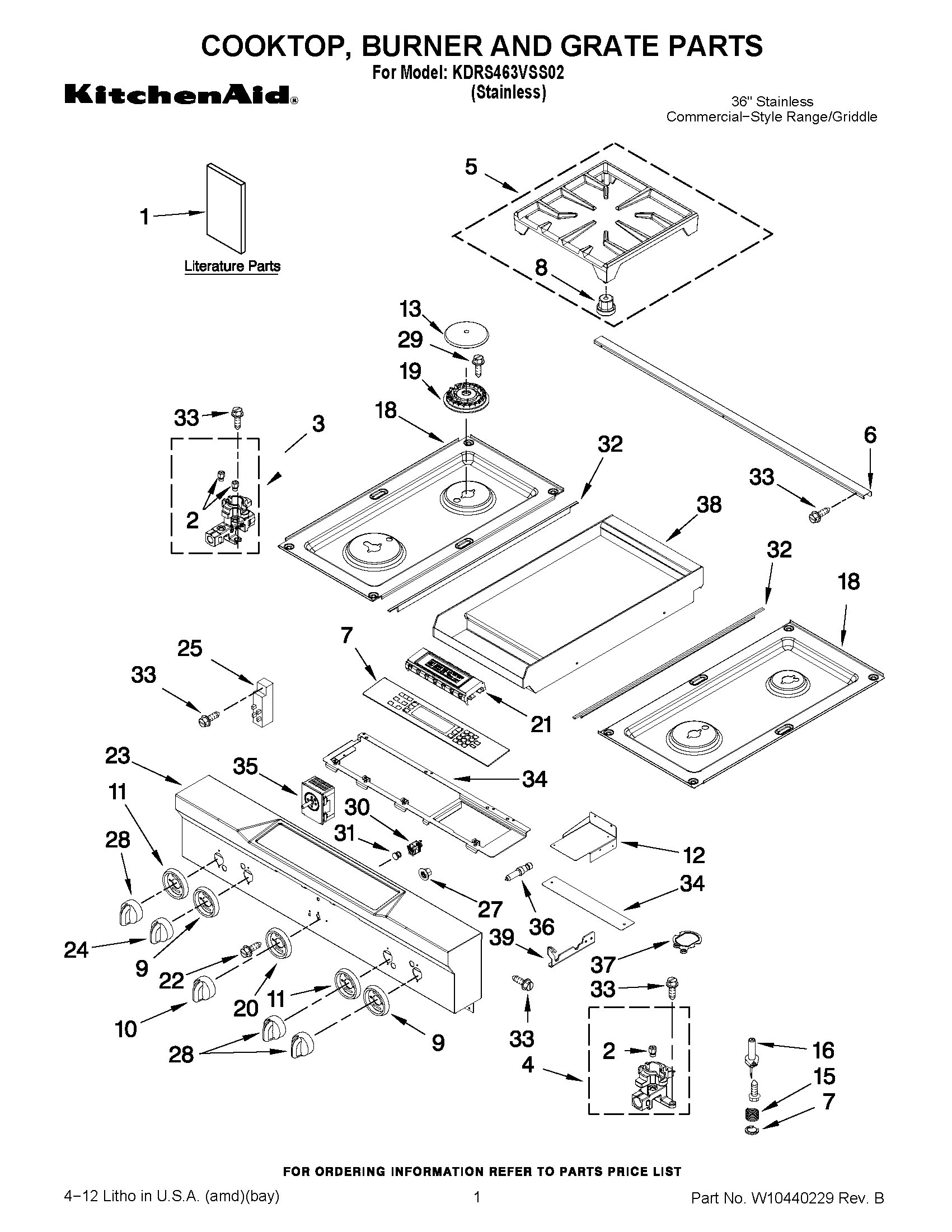

KDRS463VSS02 01 – COOKTOP, BURNER AND GRATE PARTS

KDRS463VSS02 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KDRS463VSS02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1SHEET, TECH (FRENCH)
1SHEET, TECH (ENGLISH)
1USE & CARE GUIDE
2W11051480 Whirlpool Orifice Assembly
2SPUD-ORFCE
2W10819958 Whirlpool Orifice Spud
3WPW10364555 Whirlpool Orifice Holder
4W10282659 Whirlpool Orifice Holder
4WPW10364556 Whirlpool Orifice Holder
5WPW10115928 Whirlpool Burner Grate
6W10269217 Whirlpool Trim Top Assembly
7WPW10116104 Whirlpool Membrane Switch
88186321 Whirlpool Range Foot Pads Set of 4
9W10261510 Whirlpool Knob Bezel
10W10250390 Whirlpool Knob
11W10261512 Whirlpool Knob Bezel
12W10367052 Whirlpool Switch Bracket
13CAP-BURNER
13CAP-BURNER
13CAP-BURNER
15W10256046 Whirlpool Clip
158286863 Whirlpool Oven Clip
16WPW10145991 Whirlpool Surface Igniter
16W10833887 Whirlpool Surface Igniter
18W10352968 Whirlpool Cooktop
18W10352969 Whirlpool Cooktop Assembly
19W11106799 Whirlpool Range Burner Base Surface
19BURNR-HEAD
19BURNR-HEAD
20W10261515 Whirlpool Knob Bezel
21WPW10298119-includeCORE Whirlpool WPW10298119 Refrigerator Electronic Control Board with Core
22SCREW
23WPW10284668 Whirlpool Control Panel
24W11244176 Whirlpool Knob Assembly
25MODULE, SPARK
27WPL 7103P16660
28W11177673 Whirlpool Knob
29Screw
30W10116151 Whirlpool Indicator Light
31W10116115 Whirlpool Light Lens
32W10291193 Whirlpool Trim Top
33SCREW
34W10250476 Whirlpool Mounting Bracket
35WPW10116113 Whirlpool Infinite Switch
36W10146042 Whirlpool Surface Igniter
378286930 Whirlpool Oven Gasket
38W10625221 Whirlpool Module
39W10130759 Whirlpool Mounting Bracket
39W10130760 Whirlpool Bracket Mounting
