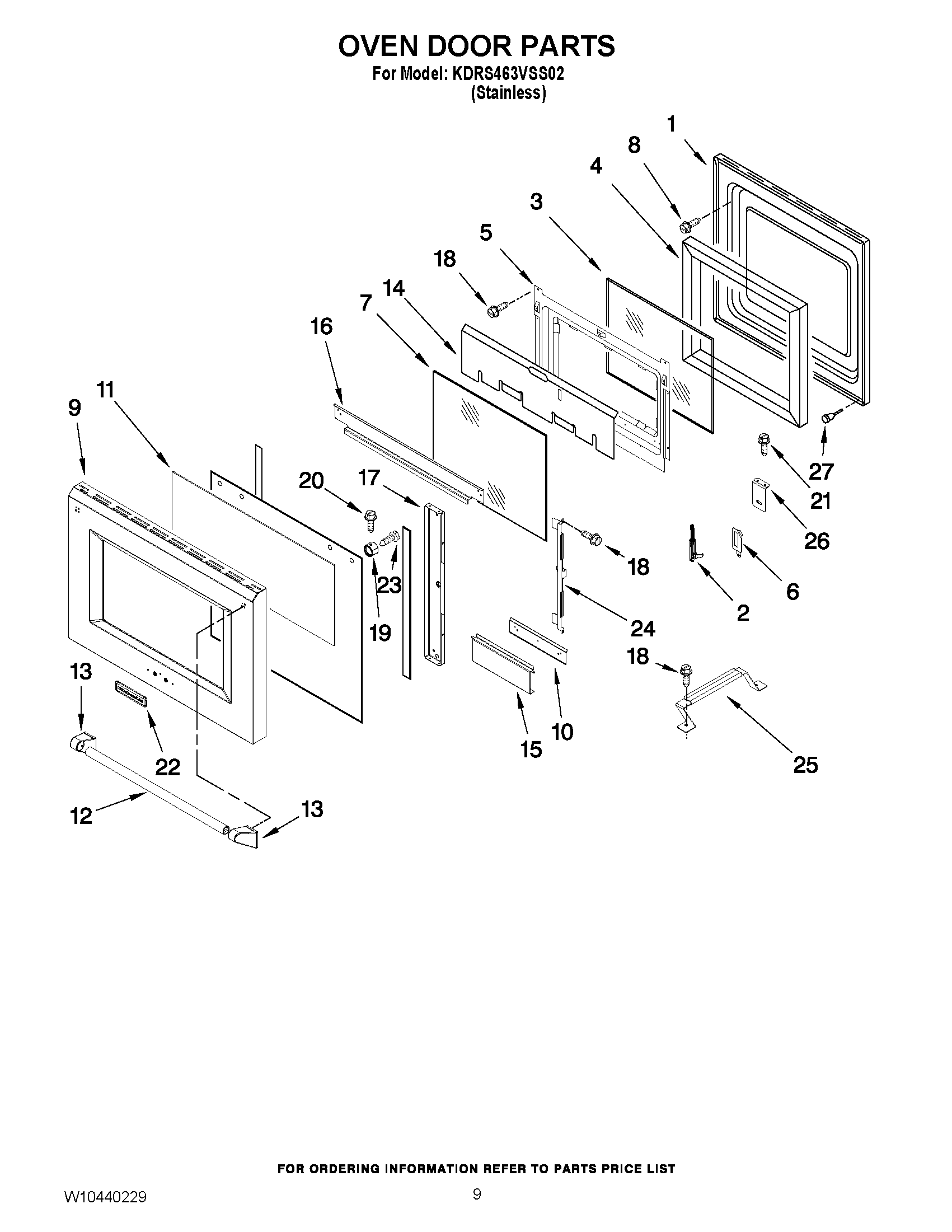

KDRS463VSS02 06 – OVEN DOOR PARTS

Products

PositionProduct
1PANEL, DOOR
2HINGE, DOOR (RIGHT)
2W10877227 Whirlpool Hinge Assembly
3WPW10226005 Whirlpool Door Glass
4W11706557 Whirlpool Insulation
5W10859077 Whirlpool Retainer Assembly
6W10115876 Whirlpool Cover
6W10115877 Whirlpool Cover
7WPW10188327 Whirlpool Door Glass
8WP4449743 Whirlpool Screw
9PANEL, DOOR
10W10226024 Whirlpool Heat Shield
11WPW10115712 Whirlpool Door Glass
12W10115718 Whirlpool Door Handle
13END CAP, HANDLE (LEFT)
13W10771437 Whirlpool Screw
13W10226025 Whirlpool Handle Endcap
14SHIELD, HEAT TOP
15BRACKET, BOTTOM
16W10145806 Whirlpool Glass Bracket
17BRACKET, OUTER GLASS (SIDE)
18WP3196557 Whirlpool Screw
19SUPPORT, HANDLE
20W10061760 Whirlpool Screw
21SCREW
22W10852683 Whirlpool Nameplate
23W10217130 Whirlpool Screw
24WP9759229 Whirlpool Mounting Bracket
25Bracket (3rd Glsss)
26W10115715 Whirlpool Bracket Mounting
274448520 Whirlpool Oven Bumper
