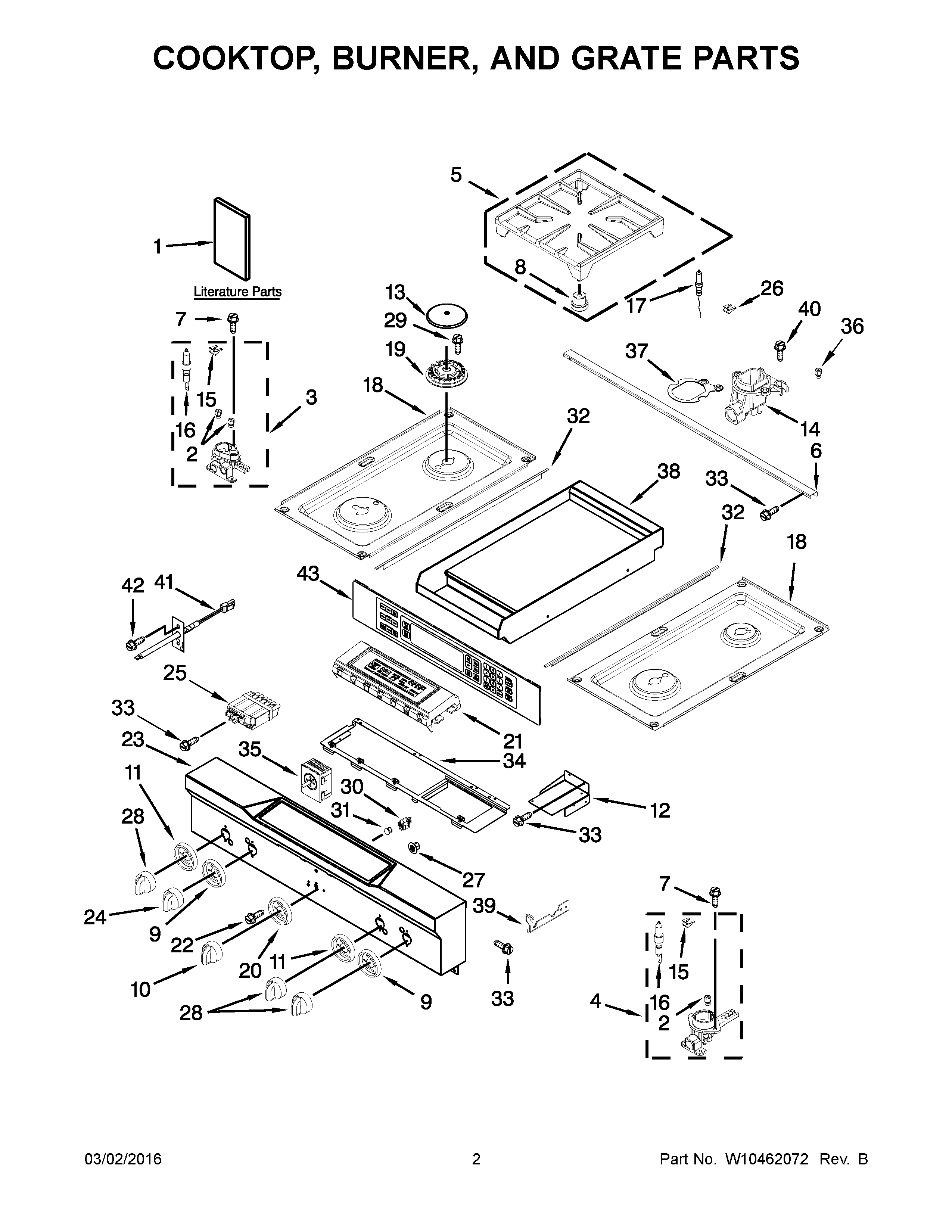

KDRS463VSS03 02 – COOKTOP, BURNER, AND GRATE PARTS

Products

PositionProduct
NIWPL W10327536
NIW11544575 Whirlpool Anti-Tip Bracket
NISCREW, ANTI-TIP KIT
NIW10780278 Whirlpool Wire Harness
NIGrommet, Flex
NI8287106 Whirlpool Clip Assembly
NIW10338986 Whirlpool Wire Harness
NIW10494088 Whirlpool Wire Harness
NIW10363280 Whirlpool Wire Harness
NIW10726866 Whirlpool Wire Harness
NIW10856625 Whirlpool Venturi
NIW10116182 Whirlpool Wire Harness
NIWPL 8019P01360
NIWPL W10766100
NI9757778 Whirlpool Oven Bushing
NI16515 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NIWP112432 Whirlpool Nut Assembly
NICABINET (NOT A SERVICEABLE PART)
1SHEET, TECH (ENGLISH)
1DSAFER COOKING TIPS (ENGLISH
1CINSTRUCTIONS, INSTALLATION
1BUSE & CARE GUIDE
1ESafer Cooking Tips (French)
1ASHEET, TECH (FRENCH)
2AW10819958 Whirlpool Orifice Spud
2BW11051480 Whirlpool Orifice Assembly
2SPUD-ORFCE
3WPW10364555 Whirlpool Orifice Holder
4WPW10364556 Whirlpool Orifice Holder
5WPW10115928 Whirlpool Burner Grate
6W10269217 Whirlpool Trim Top Assembly
7WP3177991 Whirlpool Screw
8W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9W10261510 Whirlpool Knob Bezel
10W10250390 Whirlpool Knob
11W10261512 Whirlpool Knob Bezel
12BRACKET, SPARK MODULE
13ACAP-BURNER
13CAP-BURNER
13BCAP-BURNER
14W10282659 Whirlpool Orifice Holder
15W10256046 Whirlpool Clip
16W10833887 Whirlpool Surface Igniter
17W10146042 Whirlpool Surface Igniter
18AW10352968 Whirlpool Cooktop
18W10352969 Whirlpool Cooktop Assembly
19ABURNR-HEAD
19W11106799 Whirlpool Range Burner Base Surface
19BBURNR-HEAD
20W10261515 Whirlpool Knob Bezel
21WPW10298119-includeCORE Whirlpool WPW10298119 Refrigerator Electronic Control Board with Core
22SCREW
23WPW10284668 Whirlpool Control Panel
24W11244176 Whirlpool Knob Assembly
25WPW10475147 Whirlpool Spark Module
268286863 Whirlpool Oven Clip
27WPL 7103P16660
28W11177673 Whirlpool Knob
29WPW10373929 Whirlpool Screw
30W10116151 Whirlpool Indicator Light
31W10116115 Whirlpool Light Lens
32W10291193 Whirlpool Trim Top
33SCREW
34W10250476 Whirlpool Mounting Bracket
35WPW10116113 Whirlpool Infinite Switch
36W10791075 Whirlpool Orifice Spud
378286930 Whirlpool Oven Gasket
38W10625221 Whirlpool Module
39W10130760 Whirlpool Bracket Mounting
39AW10130759 Whirlpool Mounting Bracket
40W10491985 Whirlpool Screw
41W10319835 Whirlpool Sensor
42SCREW
43WPW10116104 Whirlpool Membrane Switch
