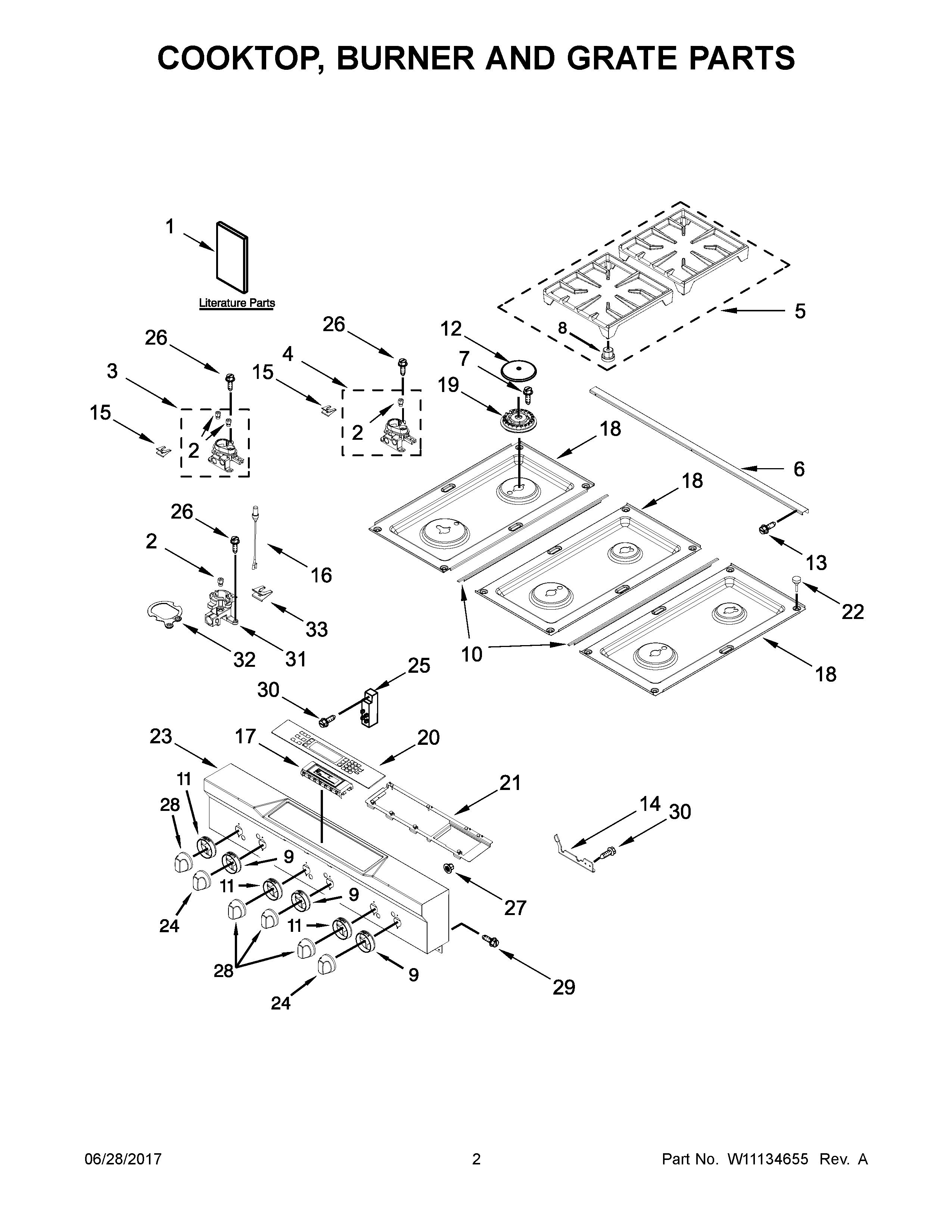

KDRS467VSD01 02 – COOKTOP, BURNER AND GRATE PARTS

KDRS467VSD01 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KDRS467VSD01 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	SCREW, ANTI-TIP KIT
NI	W10780278 Whirlpool Wire Harness
NI	WPL 8019P01360
NI	W11676349 Whirlpool Screw
NI	WPL 8010P08660
NI	WP9759877 Whirlpool Retainer
NI	Grommet, Flex
NI	CORD-POWER
NI	8287106 Whirlpool Clip Assembly
NI	W10856625 Whirlpool Venturi
NI	W10338986 Whirlpool Wire Harness
NI	W10494088 Whirlpool Wire Harness
NI	W11675299 Whirlpool Tie Wire
NI	WPL W10766100
NI	W10726866 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	16515 Whirlpool Clip
NI	WPL W10283996
NI	9757778 Whirlpool Oven Bushing
NI	W11544575 Whirlpool Anti-Tip Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP112432 Whirlpool Nut Assembly
NI	W10399614 Whirlpool Wire Harness
NI	W11379158 Whirlpool Wire Harness
1C	INSTRUCTIONS, INSTALLATION
1A	SHEET, TECH (FRENCH)
1B	GUIDE, USE & CARE
1	SHEET, TECH (ENGLISH)
2C	W10791075 Whirlpool Orifice Spud
2	W10657945 Whirlpool Orifice Spud
2B	W11051480 Whirlpool Orifice Assembly
2A	W10819958 Whirlpool Orifice Spud
3	W10846622 Whirlpool Orifice Holder
4	W10846623 Whirlpool Orifice Holder
5	W11569347 Whirlpool Grate Kit
6	W10269217 Whirlpool Trim Top Assembly
7	W11241230 Whirlpool Screw
8	8186321 Whirlpool Range Foot Pads Set of 4
9	BEZEL, FRONT
10	W10271524 Whirlpool Trim Top
11	BEZEL, REAR
12B	CAP-BURNER
12	CAP-BURNER
12A	CAP-BURNER
13	SCREW
14	W10130760 Whirlpool Bracket Mounting
14A	W10130759 Whirlpool Mounting Bracket
15	W11684564 Whirlpool Clip Assembly
16	W10854967 Whirlpool Surface Igniter
17	WPW10298119-includeCORE Whirlpool WPW10298119 Refrigerator Electronic Control Board with Core
18	W10352969 Whirlpool Cooktop Assembly
18B	W10352967 Whirlpool Cooktop
18A	W10352966 Whirlpool Cooktop
19B	BURNR-HEAD
19A	BURNR-HEAD
19	W11106799 Whirlpool Range Burner Base Surface
20	WPW10116104 Whirlpool Membrane Switch
21	W10250476 Whirlpool Mounting Bracket
22	4448520 Whirlpool Oven Bumper
23	WPW10115888 Whirlpool Console
24A	W11103350 Whirlpool Knob
24	W11244176 Whirlpool Knob Assembly
25	W11601369 Whirlpool Spark Module
26A	W10491985 Whirlpool Screw
26	WP3177991 Whirlpool Screw
27	WPL 7103P16660
28A	W11103351 Whirlpool Knob Assembly
28	W11177673 Whirlpool Knob
29	SCREW
30	SCREW
31	W10883622 Whirlpool Orifice Holder
32	8286930 Whirlpool Oven Gasket
33	8286863 Whirlpool Oven Clip
