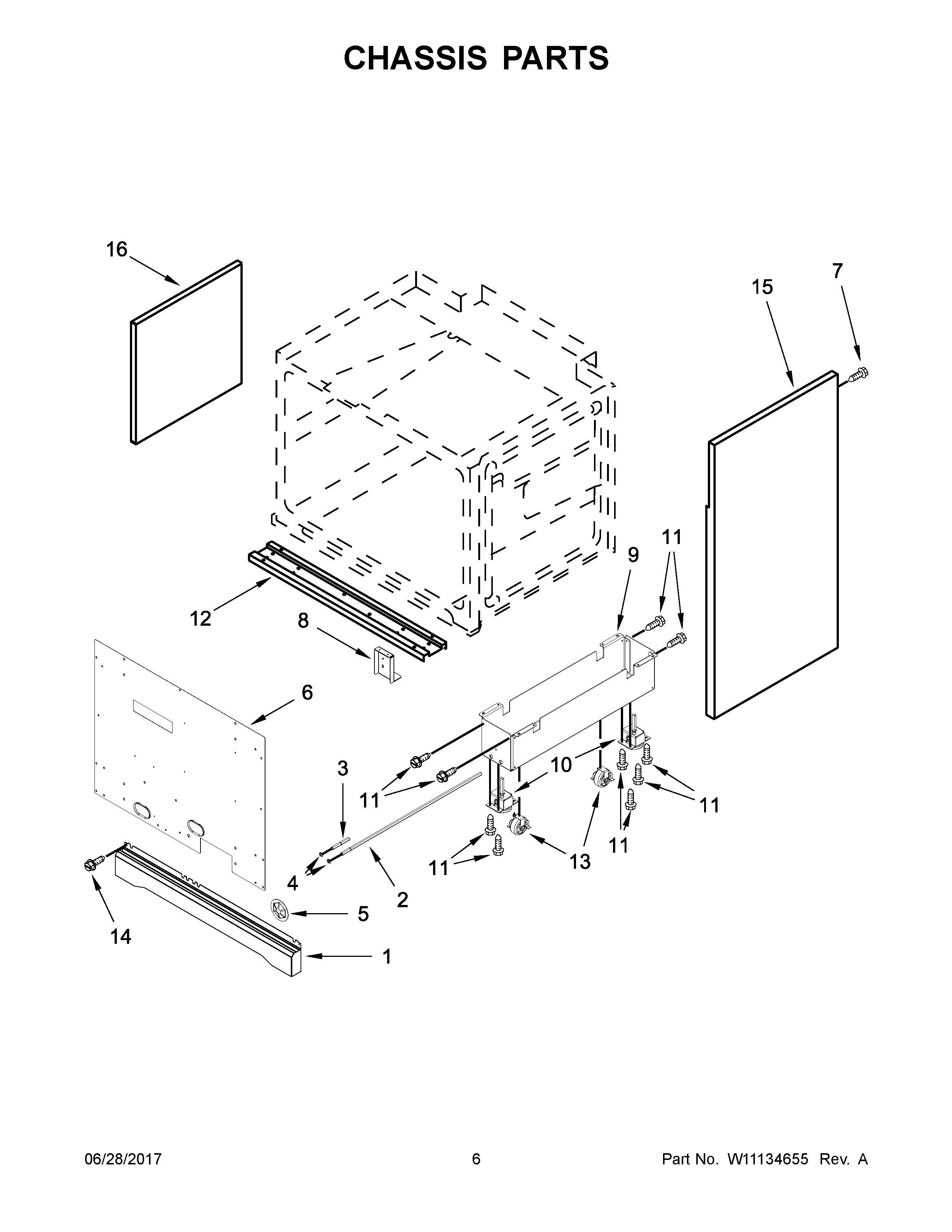

KDRS467VSD01 04 – CHASSIS PARTS

Products

PositionProduct
1W11127306 Whirlpool Cover Plate
1CKICKPLATE (SIGNATURE RED)
1BW11127307 Whirlpool Cover Plate
1AW11134154 Whirlpool Cover Plate
2W10115869 Whirlpool Shaft
3W10115793 Whirlpool Shaft
4489504 Whirlpool Oven Ring
5WP3400968 Whirlpool Nut
6W10269196 Whirlpool Duct
8W10115850 Whirlpool Mounting Bracket
9W10249333 Whirlpool Dishwasher Mounting Bracket
10W10859931 Whirlpool Foot Level
11WP4449743 Whirlpool Screw
12W10269193 Whirlpool Support
13WPW10138054 Whirlpool Refrigerator Cabinet Roller
14WP3196557 Whirlpool Screw
15WPW10250465 Whirlpool Cabinet Panel
15AW11333303 Whirlpool Side Complete Assembly
16W10269206 Whirlpool Side Compartment
16AW10269205 Whirlpool Side Compartment
