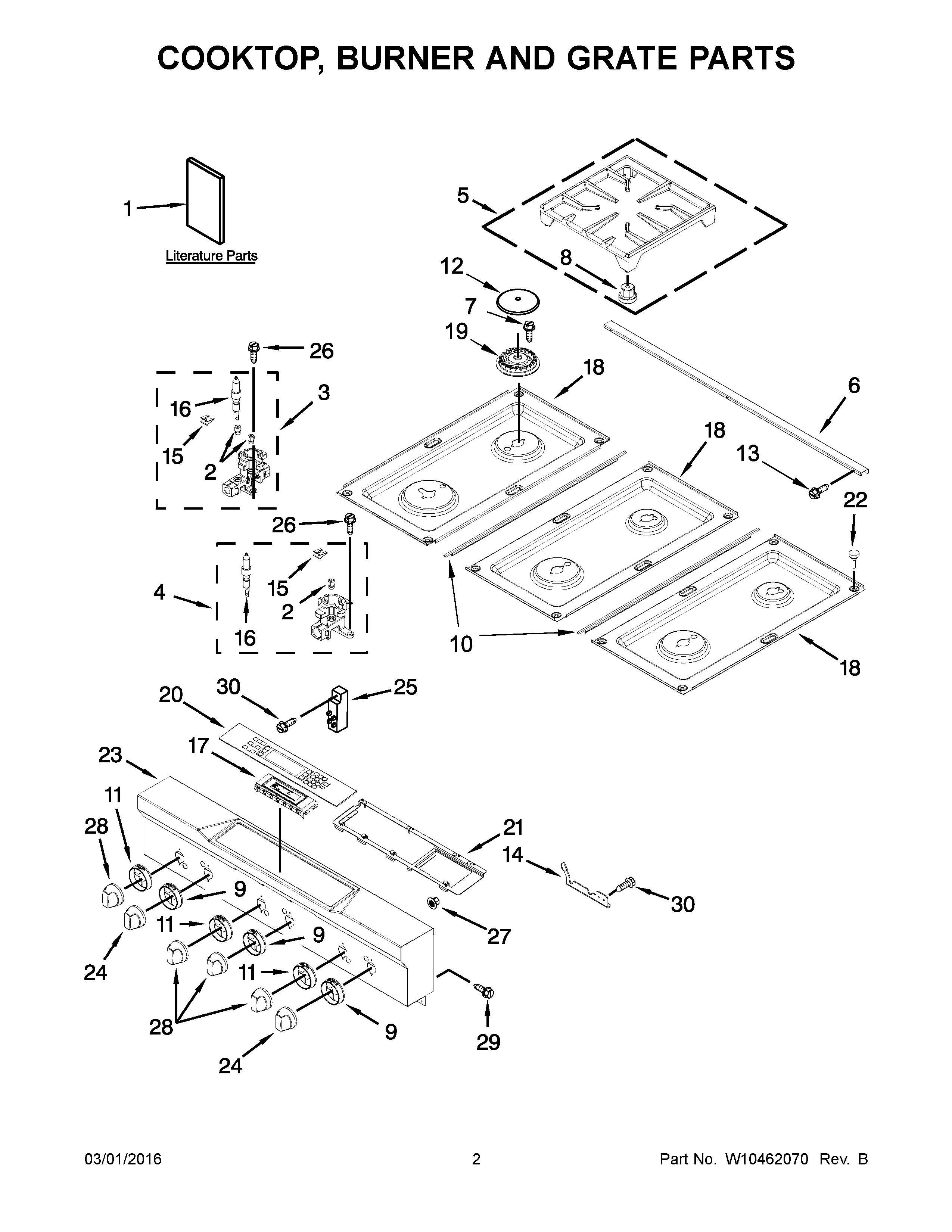

KDRS467VSS04 02 – COOKTOP, BURNER AND GRATE PARTS

KDRS467VSS04 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KDRS467VSS04 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIW11544575 Whirlpool Anti-Tip Bracket
NISCREW, ANTI-TIP KIT
NIW10856625 Whirlpool Venturi
NIW10780278 Whirlpool Wire Harness
NIWPL W10766100
NIWPL 8019P01360
NIGrommet, Flex
NICORD-POWER
NI8287106 Whirlpool Clip Assembly
NIW10338986 Whirlpool Wire Harness
NIW10494088 Whirlpool Wire Harness
NIW11675299 Whirlpool Tie Wire
NIW10726866 Whirlpool Wire Harness
NI9757778 Whirlpool Oven Bushing
NIWP9759877 Whirlpool Retainer
NI16515 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NIWP112432 Whirlpool Nut Assembly
NIW10507834 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NIW10399614 Whirlpool Wire Harness
1FINSTRUCTIONS, INSTALLATION (BI-LINGUAL)
1DSAFER COOKING TIPS (ENGLISH
1ASHEET, TECH (FRENCH)
1CINSTRUCTIONS, INSTALLATION
1SHEET, TECH (ENGLISH)
1BUSE & CARE GUIDE
1ESafer Cooking Tips (French)
2CW10791075 Whirlpool Orifice Spud
2AW10819958 Whirlpool Orifice Spud
2SPUD-ORFCE
2BW11051480 Whirlpool Orifice Assembly
3WPW10364555 Whirlpool Orifice Holder
4WPW10364556 Whirlpool Orifice Holder
4AW10282659 Whirlpool Orifice Holder
5WPW10115928 Whirlpool Burner Grate
6W10269217 Whirlpool Trim Top Assembly
7WPW10373929 Whirlpool Screw
8W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9W10261510 Whirlpool Knob Bezel
10W10271524 Whirlpool Trim Top
11W10261512 Whirlpool Knob Bezel
12BCAP-BURNER
12ACAP-BURNER
12CAP-BURNER
13SCREW
14W10130760 Whirlpool Bracket Mounting
14AW10130759 Whirlpool Mounting Bracket
15A8286863 Whirlpool Oven Clip
15W10256046 Whirlpool Clip
16W10833887 Whirlpool Surface Igniter
16AW10854967 Whirlpool Surface Igniter
17WPW10298119-includeCORE Whirlpool WPW10298119 Refrigerator Electronic Control Board with Core
18W10352969 Whirlpool Cooktop Assembly
18AW10352966 Whirlpool Cooktop
18BW10352967 Whirlpool Cooktop
19W11106799 Whirlpool Range Burner Base Surface
19CBURNR-HEAD
19ABURNR-HEAD
20WPW10116104 Whirlpool Membrane Switch
21W10250476 Whirlpool Mounting Bracket
224448520 Whirlpool Oven Bumper
23WPW10115888 Whirlpool Console
24W11244176 Whirlpool Knob Assembly
25W11601369 Whirlpool Spark Module
26WP3177991 Whirlpool Screw
27WPL 7103P16660
28W11177673 Whirlpool Knob
29SCREW
30SCREW
