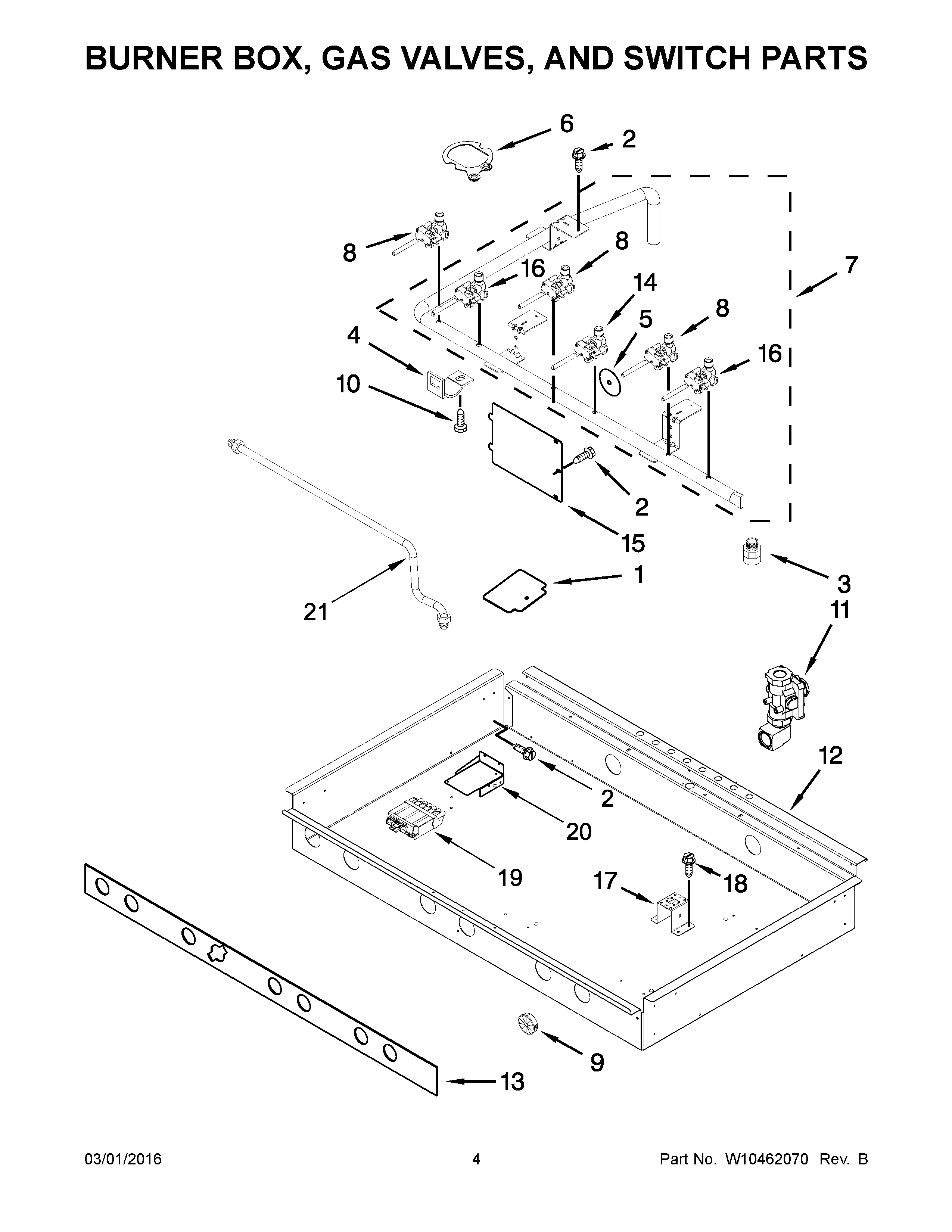

KDRS467VSS04 03 – BURNER BOX, GAS VALVES, AND SWITCH PARTS

Products

Position	Product
NI	W10353141 Whirlpool Gas Tubing Assembly
NI	W10353154 Whirlpool Gas Tubing
NI	WPW10353133 Whirlpool Gas Tubing
NI	W10353152 Whirlpool Gas Tubing
NI	W10280797 Whirlpool Gas Tubing
NI	CABINET (NOT A SERVICEABLE PART)
1	W10287036 Whirlpool Access Cover
3A	4453116 Whirlpool Oven Adapter
3	4453115 Whirlpool Oven Adapter
4	BRACKET, VALVE
5	W10189177 Whirlpool Seal Switch
6	8286930 Whirlpool Oven Gasket
7	ASSEMBLY, MANIFOLD
8	WPW10385582 Whirlpool Burner Valve
9	W10189097 Whirlpool Bushing Assembly
10	W10189140 Whirlpool Screw
11	W10293267 Whirlpool Regulator Assembly
12	W10371516 Whirlpool Burner Box
13	W11688578 Whirlpool Insulation
14	WPW10385583 Whirlpool Burner Valve
15	W10115843 Whirlpool Access Cover
16	WPW10371235 Whirlpool Burner Valve
17	W10560553 Whirlpool Mounting Bracket
18	SCREW
19	WPW10475147 Whirlpool Spark Module
20	BRACKET, SPARK MODULE
21	W10269191 Whirlpool Gas Tubing
