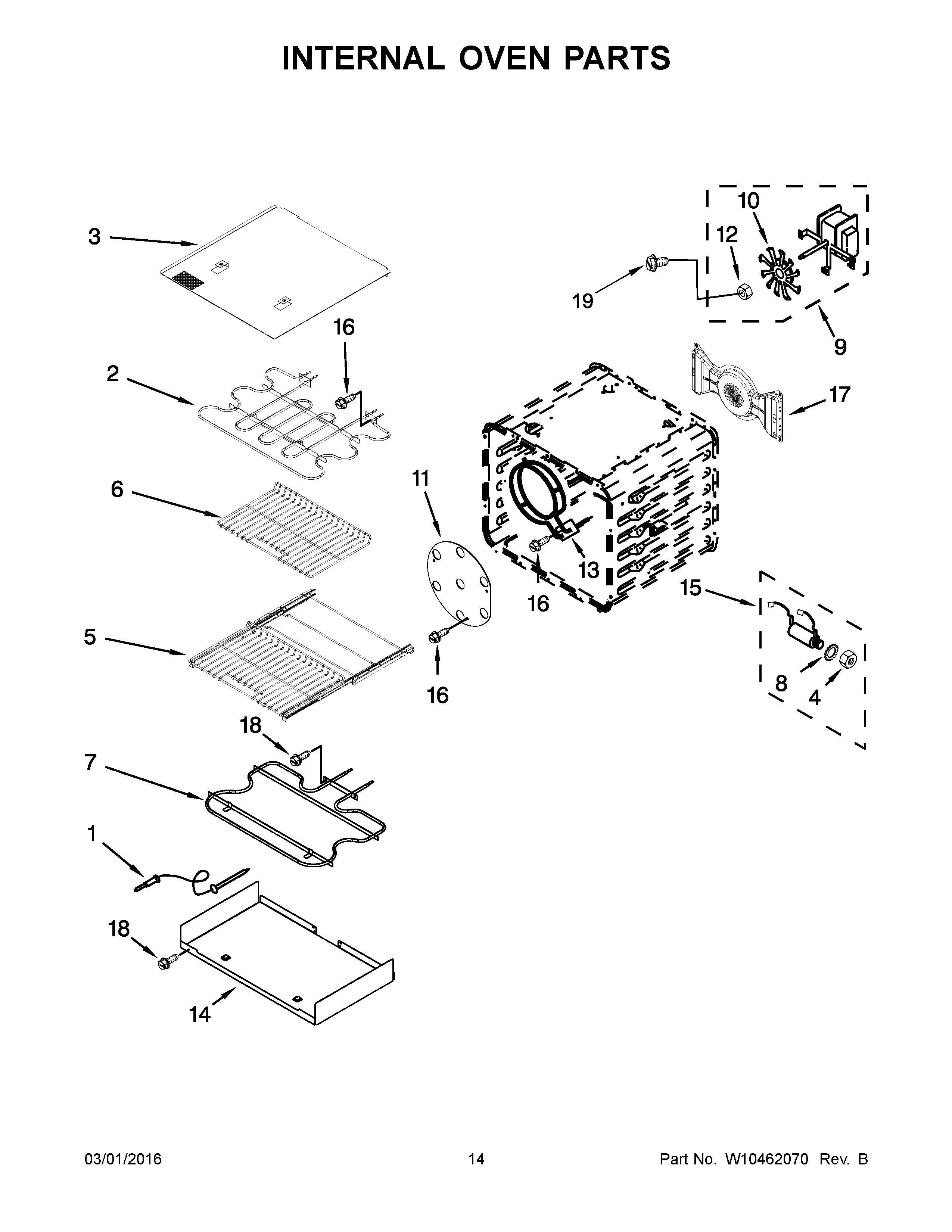

KDRS467VSS04 08 – INTERNAL OVEN PARTS

Products

PositionProduct
1WP9755542 Whirlpool Oven Meat Probe
2W10857686 Whirlpool Broil Element
3SHIELD, BROIL ELEMENT
4WP9755546 Whirlpool Locknut
5RACK, OVEN (SLIDING)
6W10822069 Whirlpool Oven Rack
7W10860270 Whirlpool Bake Element Assembly
8WP9755547 Whirlpool Lockwasher
9W10860984 Whirlpool Fan Motor
10W10819914 Whirlpool Convection Fan
11W10261523 Whirlpool Plate
12W10794042 Whirlpool Nut
13W11643125 Whirlpool Element
14TRAY, HIDDEN BAKE
158186589 Whirlpool Jack Probe
16WP4449154 Whirlpool Screw
17W10860133 Whirlpool Convection Baffle
18SCREW
19W10850807 Whirlpool Screw
