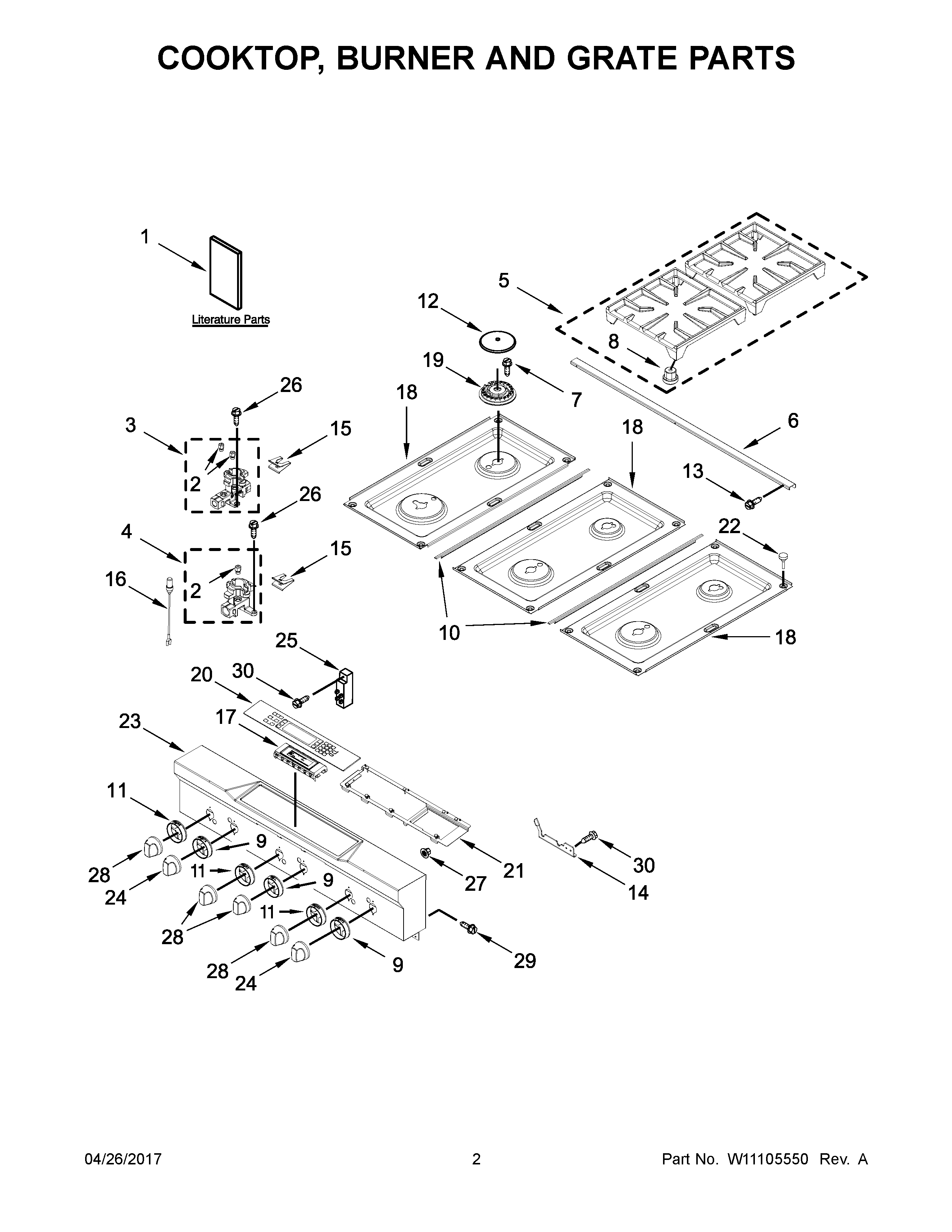

KDRS467VSS05 02 – COOKTOP, BURNER AND GRATE PARTS

KDRS467VSS05 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KDRS467VSS05 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIWPL W10283996
NIW10399614 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NIW11676349 Whirlpool Screw
NIGrommet, Flex
NI8287106 Whirlpool Clip Assembly
NIW10338986 Whirlpool Wire Harness
NIW10494088 Whirlpool Wire Harness
NIW11675299 Whirlpool Tie Wire
NIW10726866 Whirlpool Wire Harness
NIW10856625 Whirlpool Venturi
NICORD-POWER
NIWP9759877 Whirlpool Retainer
NIWPL W10766100
NIWPL 8019P01360
NIW11379158 Whirlpool Wire Harness
NISCREW, ANTI-TIP KIT
NIWPL 8010P08660
NI16515 Whirlpool Clip
NICABINET (NOT A SERVICEABLE PART)
NI4450800 Whirlpool Oven Screw
NIWP112432 Whirlpool Nut Assembly
NI9757778 Whirlpool Oven Bushing
NIW11544575 Whirlpool Anti-Tip Bracket
1SHEET, TECH (ENGLISH)
1FINSTRUCTIONS, INSTALLATION (BI-LINGUAL)
1DSAFER COOKING TIPS (ENGLISH
1ESafer Cooking Tips (French)
1ASHEET, TECH (FRENCH)
1CINSTRUCTIONS, INSTALLATION
1BGUIDE, USE & CARE
2AW10819958 Whirlpool Orifice Spud
2BW11051480 Whirlpool Orifice Assembly
2W10657945 Whirlpool Orifice Spud
2CORIFICE (5K) (CENTER REAR)
3W10846622 Whirlpool Orifice Holder
4W10846623 Whirlpool Orifice Holder
4AW10883622 Whirlpool Orifice Holder
5W11569347 Whirlpool Grate Kit
6W10269217 Whirlpool Trim Top Assembly
7WPW10373929 Whirlpool Screw
88186321 Whirlpool Range Foot Pads Set of 4
9W10261510 Whirlpool Knob Bezel
10W10271524 Whirlpool Trim Top
11W10261512 Whirlpool Knob Bezel
12BCAP-BURNER
12ACAP-BURNER
12CAP-BURNER
13SCREW
14AW10130759 Whirlpool Mounting Bracket
14W10130760 Whirlpool Bracket Mounting
15A8286863 Whirlpool Oven Clip
15W11684564 Whirlpool Clip Assembly
16W10854967 Whirlpool Surface Igniter
17WPW10298119-includeCORE Whirlpool WPW10298119 Refrigerator Electronic Control Board with Core
18AW10352966 Whirlpool Cooktop
18BW10352967 Whirlpool Cooktop
18W10352969 Whirlpool Cooktop Assembly
19BBURNR-HEAD
19ABURNR-HEAD
19W11106799 Whirlpool Range Burner Base Surface
20WPW10116104 Whirlpool Membrane Switch
21W10250476 Whirlpool Mounting Bracket
224448520 Whirlpool Oven Bumper
23WPW10115888 Whirlpool Console
24W11103350 Whirlpool Knob
25W11601369 Whirlpool Spark Module
26WP3177991 Whirlpool Screw
26AW10491985 Whirlpool Screw
27WPL 7103P16660
28W11103351 Whirlpool Knob Assembly
29SCREW
30SCREW
