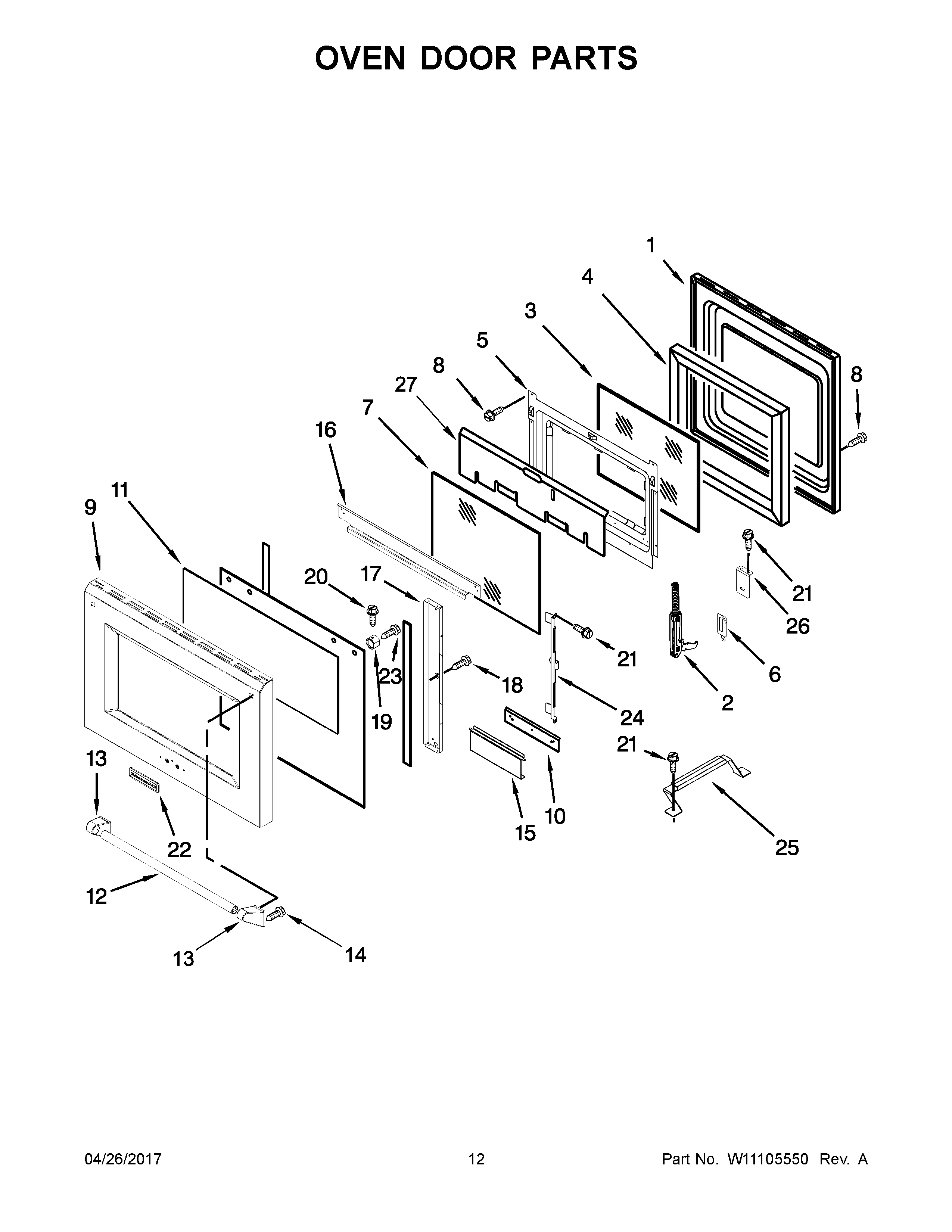

KDRS467VSS05 07 – OVEN DOOR PARTS

Products

Position	Product
1	PANEL, DOOR
2A	HINGE, DOOR (RIGHT)
2	W10877227 Whirlpool Hinge Assembly
3	WPW10226005 Whirlpool Door Glass
4	W11706557 Whirlpool Insulation
5	W10859077 Whirlpool Retainer Assembly
6A	W10115877 Whirlpool Cover
6	W10115876 Whirlpool Cover
7	WPW10188327 Whirlpool Door Glass
8	WPW10292297 Whirlpool Screw
9	PANEL, DOOR
10	W10226024 Whirlpool Heat Shield
11	WPW10115712 Whirlpool Door Glass
12	W10115718 Whirlpool Door Handle
13A	W10226025 Whirlpool Handle Endcap
13	END CAP, HANDLE (LEFT)
14	W10771437 Whirlpool Screw
15	BRACKET, BOTTOM
16	W10145806 Whirlpool Glass Bracket
17	BRACKET, OUTER GLASS (SIDE)
18	WP3196557 Whirlpool Screw
19	SUPPORT, HANDLE
20	W10061760 Whirlpool Screw
21	SCREW
22	W10852683 Whirlpool Nameplate
23	W10217130 Whirlpool Screw
24	WP9759229 Whirlpool Mounting Bracket
25	Bracket (3rd Glsss)
26	W10115715 Whirlpool Bracket Mounting
27	SHIELD, HEAT TOP
