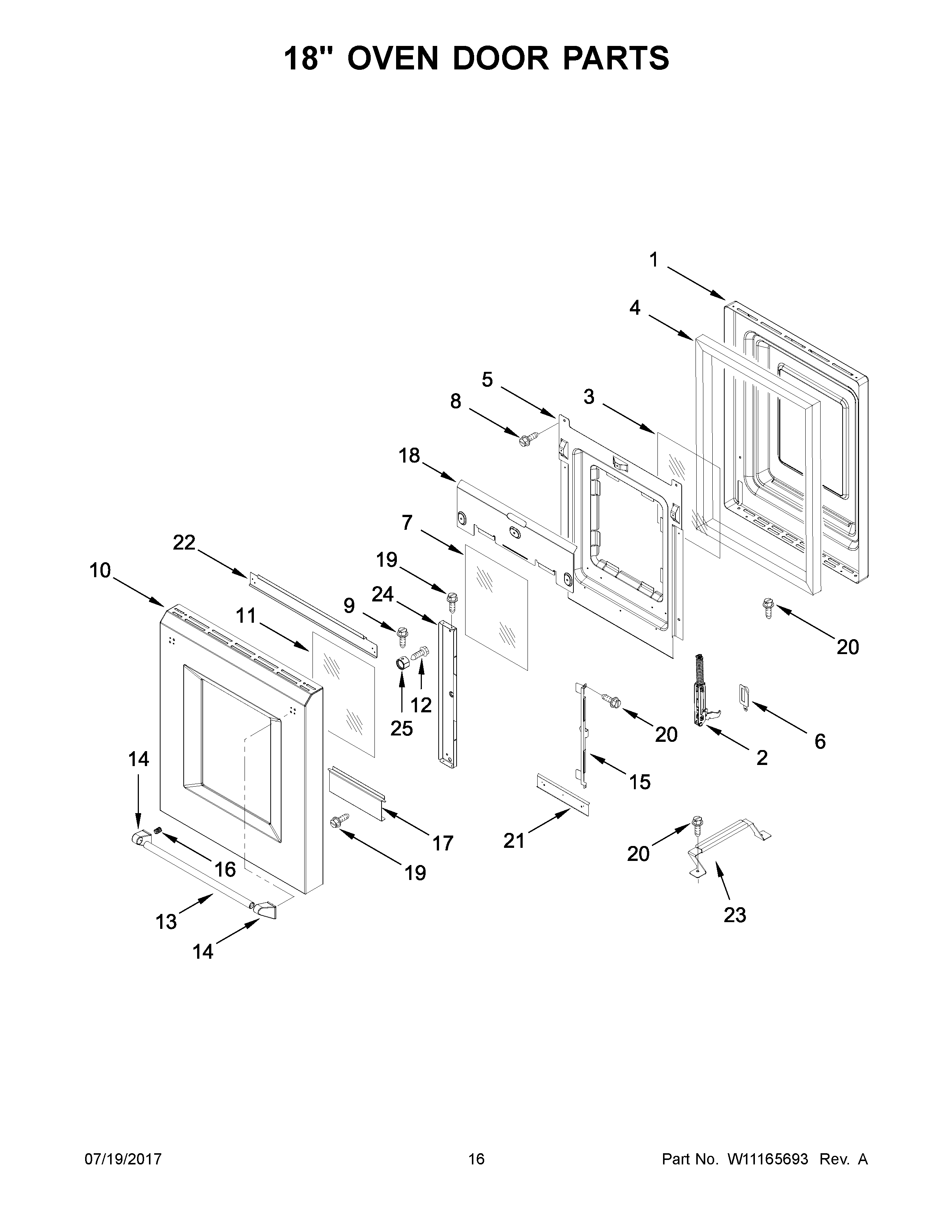

KDRS483VBU01 09 – 18″ OVEN DOOR PARTSadmin2025-04-26T10:25:50+00:00KDRS483VBU01 09 – 18″ OVEN DOOR PARTS
Products
| Position | Product |
|---|
| 1 | W10188323 Whirlpool Door Liner |
| 2A | HINGE, DOOR (RIGHT) |
| 2 | W10774089 Whirlpool Door Hinge |
| 3 | GLASS, INNER DOOR |
| 4 | W10115737 Whirlpool Insulation |
| 5 | W10188325 Whirlpool Retainer |
| 6 | W10115876 Whirlpool Cover |
| 6A | W10115877 Whirlpool Cover |
| 7 | WPW10115695 Whirlpool Door Glass |
| 8 | WPW10292297 Whirlpool Screw |
| 9 | W10061760 Whirlpool Screw |
| 10C | PANEL, EXTERIOR DOOR (SIGNATURE RED) |
| 10B | PANEL, EXTERIOR DOOR (COBALT BLUE) |
| 10A | PANEL, EXTERIOR DOOR (IMPERIAL WHITE) |
| 10 | PANEL, EXTERIOR DOOR (IMPERIAL BLACK) |
| 11 | WPW10115710 Whirlpool Door Glass |
| 12 | W10217130 Whirlpool Screw |
| 13 | HANDLE, DOOR |
| 14A | W11428542 Whirlpool Handle End Cap |
| 14 | W11428546 Whirlpool Handle Endcap |
| 15 | WP9759229 Whirlpool Mounting Bracket |
| 16 | W10771437 Whirlpool Screw |
| 17 | BRACKET, OUTER GLASS BOTTOM |
| 18 | SHIELD, TOP HEAT |
| 19 | WP3196557 Whirlpool Screw |
| 20 | SCREW |
| 21 | SHIELD, LOWER HEAT |
| 22 | W10145807 Whirlpool Glass Bracket |
| 23 | Bracket (3rd Glsss) |
| 24 | BRACKET, OUTER GLASS (SIDE) |
| 25 | SUPPORT, HANDLE |
