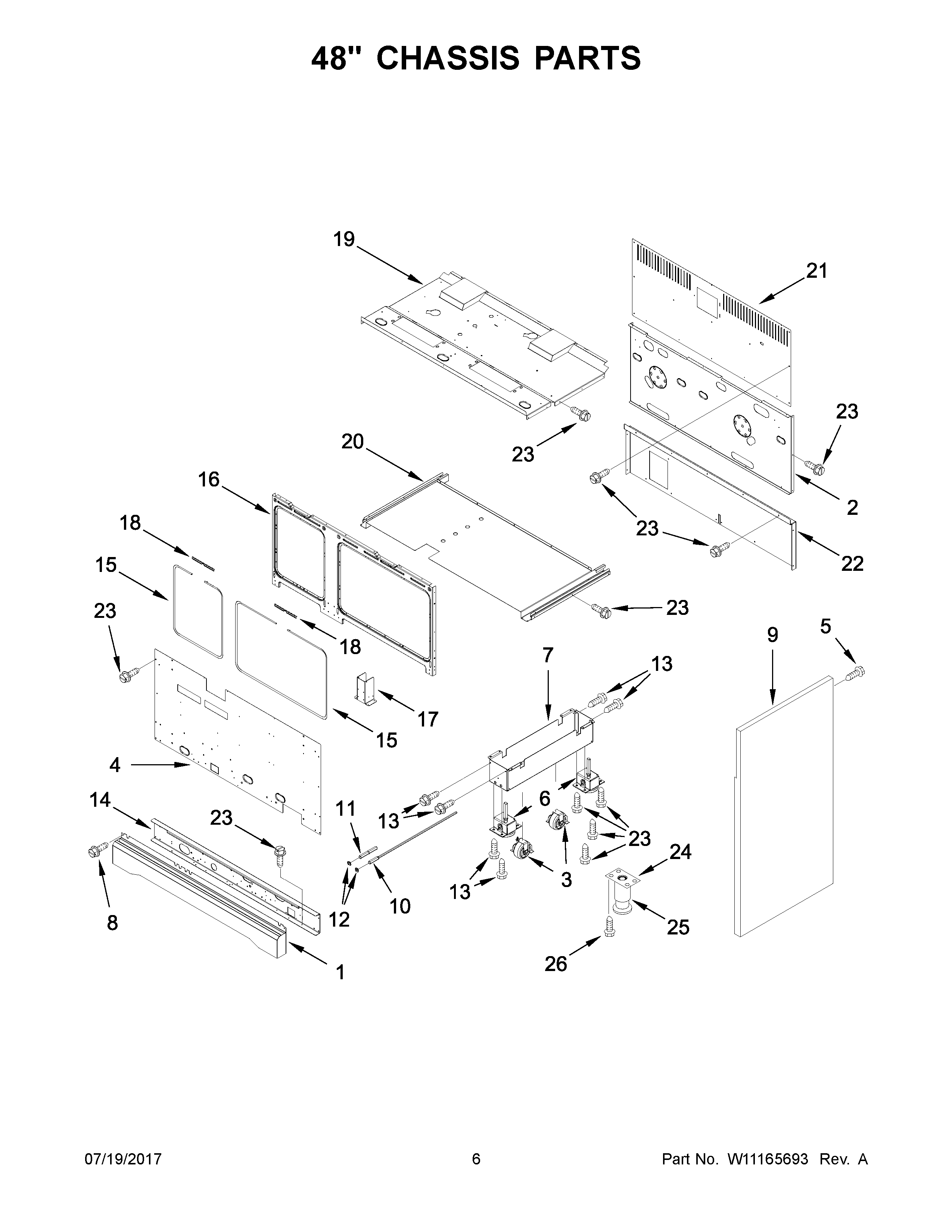

KDRS483VMW01 04 – 48″ CHASSIS PARTS

Products

Position	Product
1B	W11166987 Whirlpool Cover Plate
1	KICKPLATE (IMPERIAL BLACK)
1A	KICKPLATE (IMPERIAL WHITE)
1C	KICKPLATE (SIGNATURE RED)
2	BACK, CHASSIS
3	WPW10138054 Whirlpool Refrigerator Cabinet Roller
4	W10269195 Whirlpool Duct Assembly
5	W10129030 Whirlpool Screw
6	W10859931 Whirlpool Foot Level
7	W10249333 Whirlpool Dishwasher Mounting Bracket
8A	WP3196557 Whirlpool Screw
8	WP3400832 Whirlpool Screw
9A	W10250466 Whirlpool Cabinet Panel
9	W11321067 Whirlpool Complete Side Assembly
10	W10115869 Whirlpool Shaft
11	W10115793 Whirlpool Shaft
12	489504 Whirlpool Oven Ring
13	WP4449743 Whirlpool Screw
14	W10269192 Whirlpool Support
15A	W10775946 Whirlpool Door Gasket
15	W11675844 Whirlpool Oven Gasket
16	FRAME, FRONT
17	W10115819 Whirlpool Brace
18A	W10216520 Whirlpool Retainer
18	W11368870 Whirlpool Retainer Assembly
19	CHASSIS, TOP
20	W10235535 Whirlpool Bottom Main
21	PANEL, BACK TOP
22	W10145397 Whirlpool Rear Cover
23	SCREW
24	WP9759118 Whirlpool Mounting Plate
25	WP9759117 Whirlpool Leveling Foot
26	3400518 Whirlpool Oven Foot Mount Screw
