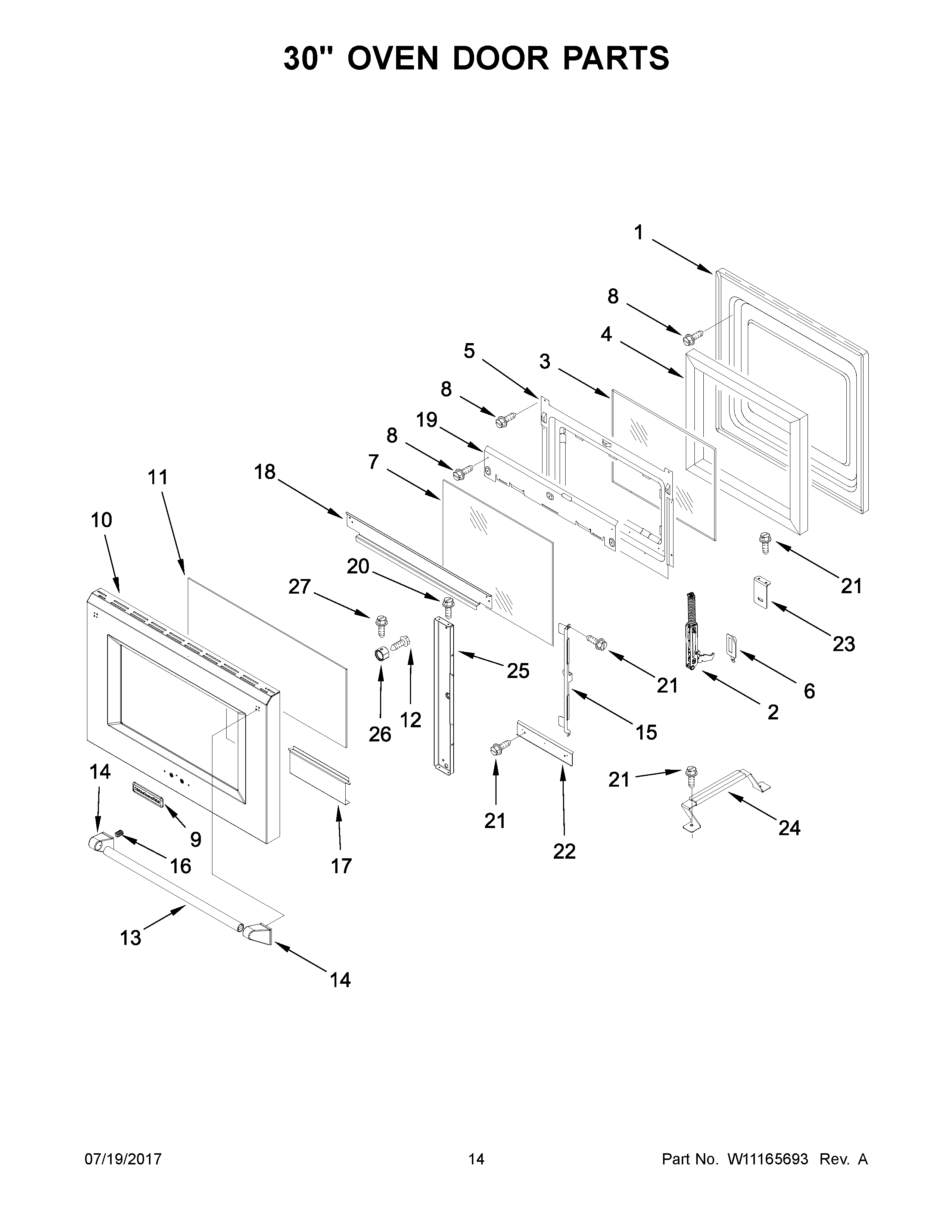

KDRS483VMW01 08 – 30″ OVEN DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2W10782123 Whirlpool Door Hinge Assembly
2AW10782122 Whirlpool Door Hinge
3WP4449259 Whirlpool Glass Window
4WP4451722 Whirlpool Door Insulation Assembly
5WP4457132 Whirlpool Retainer
6W10115876 Whirlpool Cover
6AW10115877 Whirlpool Cover
7WP9759225 Whirlpool Inner Door Glass
8WPW10292297 Whirlpool Screw
9W10839793 Whirlpool Refrigerator Nameplate
10APANEL, EXTERIOR DOOR (IMPERIAL WHITE)
10BPANEL, EXTERIOR DOOR (COBALT BLUE)
10CW11167354 Whirlpool Door Panel
10PANEL, EXTERIOR DOOR (IMPERIAL BLACK)
11GLASS, OUTER DOOR
12W10217130 Whirlpool Screw
13HANDLE, DOOR
14W11428546 Whirlpool Handle Endcap
14AW11428542 Whirlpool Handle End Cap
15WP9759229 Whirlpool Mounting Bracket
16W10771437 Whirlpool Screw
17BRACKET, OUTER GLASS (BOTTOM)
18W10145805 Whirlpool Glass Bracket
19SHIELD, HEAT TOP
20WP3196557 Whirlpool Screw
21SCREW
224457114 Whirlpool Oven Heat Shield
23W10115715 Whirlpool Bracket Mounting
24Bracket (3rd Glsss)
25BRACKET, OUTER GLASS (SIDE)
26SUPPORT, HANDLE
27W10061760 Whirlpool Screw
