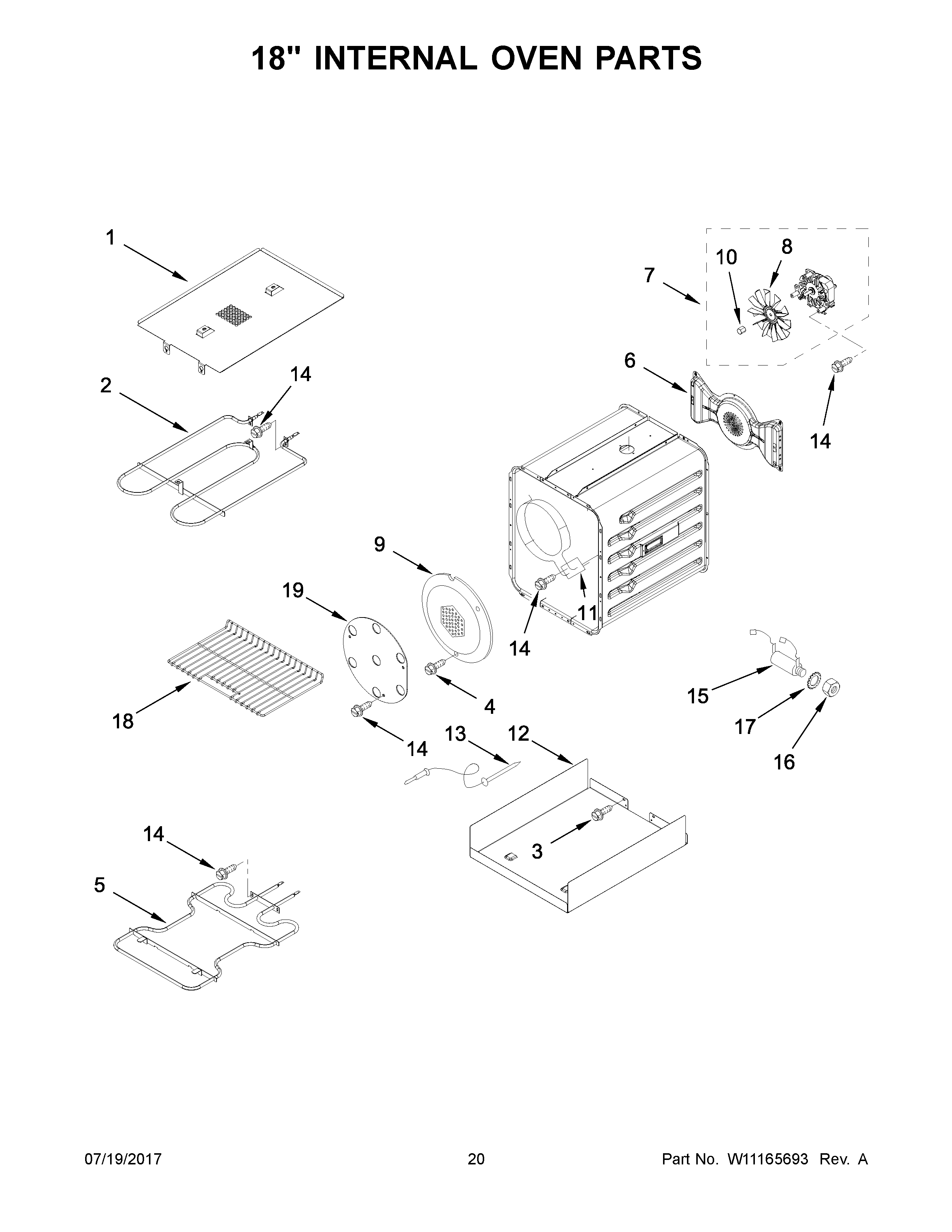

KDRS483VMW01 11 – 18″ INTERNAL OVEN PARTS

Products

PositionProduct
1W10160855 Whirlpool Heat Shield
2W10116010 Whirlpool Broil Element
3SCREW
4SCREW
5W10116033 Whirlpool Bake Element
6W10860133 Whirlpool Convection Baffle
7W10860984 Whirlpool Fan Motor
8W10819914 Whirlpool Convection Fan
9WPW10160821 Whirlpool Fan Cover
10W10794042 Whirlpool Nut
11W11643125 Whirlpool Element
12TRAY, HIDDEN BAKE
13WP9755542 Whirlpool Oven Meat Probe
14WP4449154 Whirlpool Screw
158186589 Whirlpool Jack Probe
16WP9755546 Whirlpool Locknut
17WP9755547 Whirlpool Lockwasher
18W10570879 Whirlpool Oven Rack Assembly
19W10261523 Whirlpool Plate
