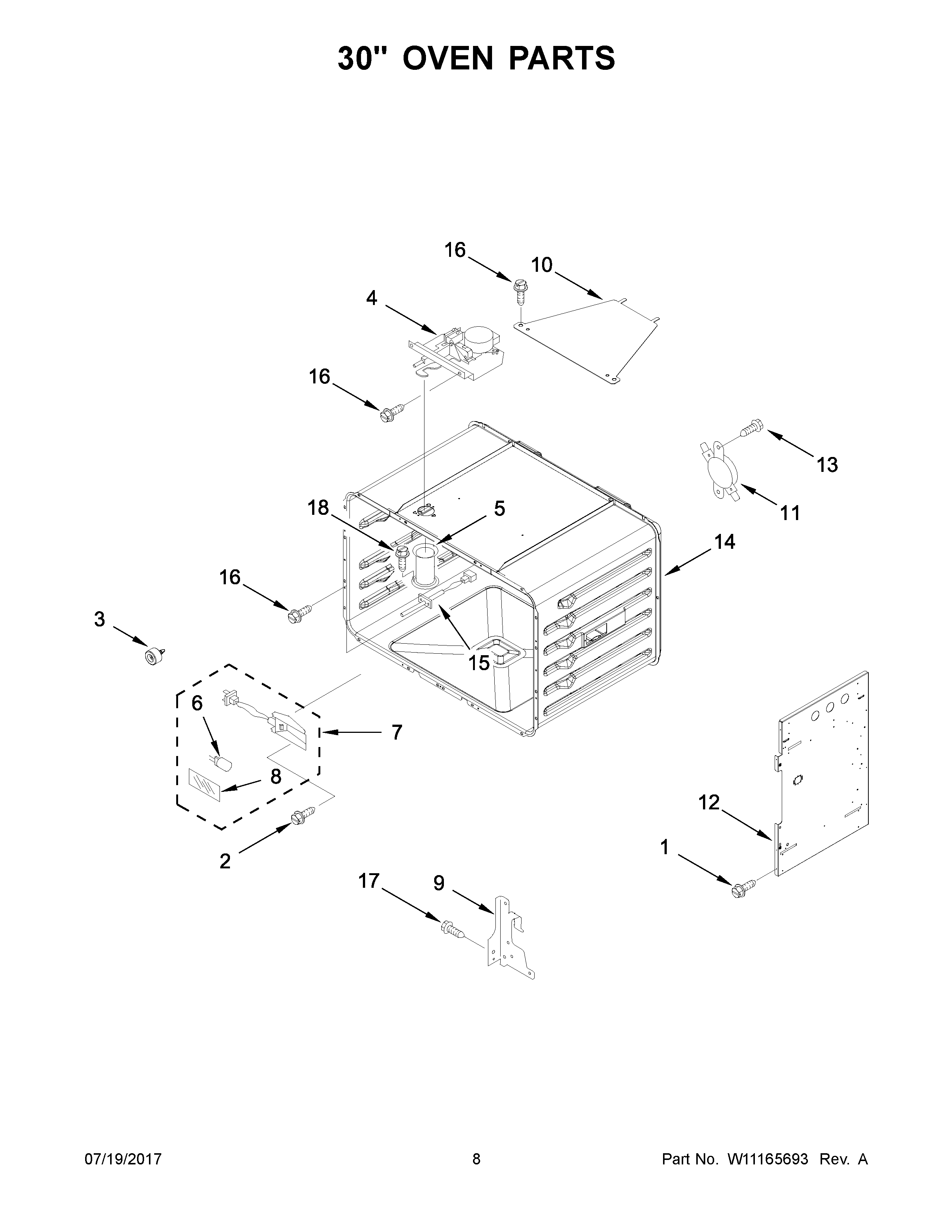

KDRS483VSD01 05 – 30″ OVEN PARTS

Products

Position	Product
NI	INSULATION, BACK, 30"
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP3400968 Whirlpool Nut
NI	W11684730 Whirlpool Insulation
2	4449748 Whirlpool Oven Screw
3	W10105790 Whirlpool Bumper
4	W11029221 Whirlpool Door Latch
5	TUBE, VENT
6	BULB-LIGHT
7	WPW10307114 Whirlpool Light
8	W10169756 Whirlpool Light Lens
9A	WP4455606 Whirlpool Right Hand Hinge
9	WP4455605 Whirlpool Left Hand Hinge
10	W10160858 Whirlpool Lid Cover
11	WP4449751 Whirlpool Range Oven Thermostat Fix
12	W10269206 Whirlpool Side Compartment
12A	W10269205 Whirlpool Side Compartment
13	SCREW
15	WPW10131825 Whirlpool Oven Temperature Sensor
16	WP4449154 Whirlpool Screw
17	Screw
18	SCREW
