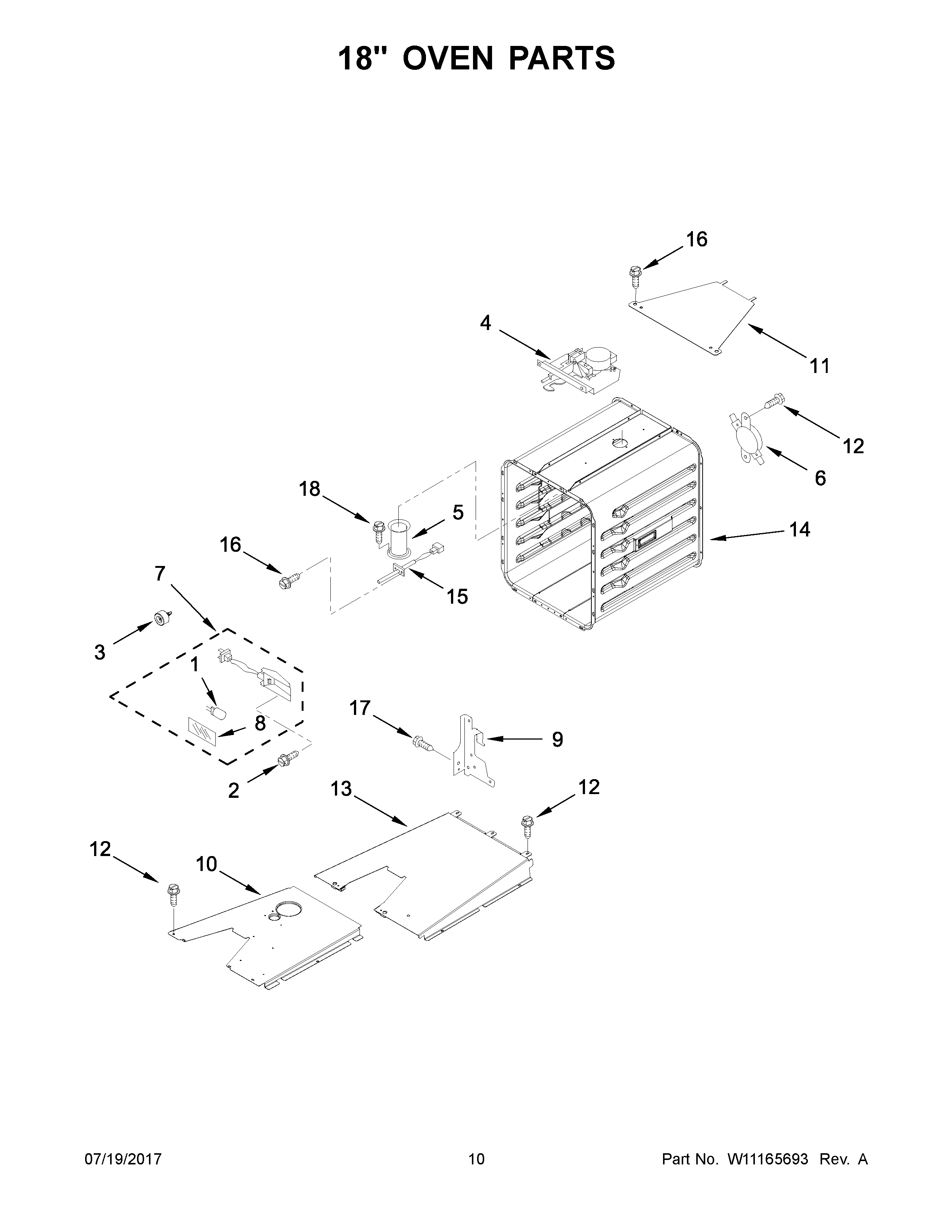

KDRS483VSD01 06 – 18″ OVEN PARTS

Products

Position	Product
NI	INSULATION, BACK, 18"
NI	WP3400968 Whirlpool Nut
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11688722 Whirlpool Insulation
1	BULB-LIGHT
2	4449748 Whirlpool Oven Screw
3	W10105790 Whirlpool Bumper
4	W11029221 Whirlpool Door Latch
5	TUBE, VENT
6	WP4449751 Whirlpool Range Oven Thermostat Fix
7	WPW10307114 Whirlpool Light
8	W10169756 Whirlpool Light Lens
9A	WP4455606 Whirlpool Right Hand Hinge
9	WP4455605 Whirlpool Left Hand Hinge
10	VENT, COOLING BOTTOM (18")
11	W10160858 Whirlpool Lid Cover
12	SCREW
13	W10160897 Whirlpool Exhaust Vent
15	WPW10131825 Whirlpool Oven Temperature Sensor
16	WP4449154 Whirlpool Screw
17	Screw
18	SCREW
