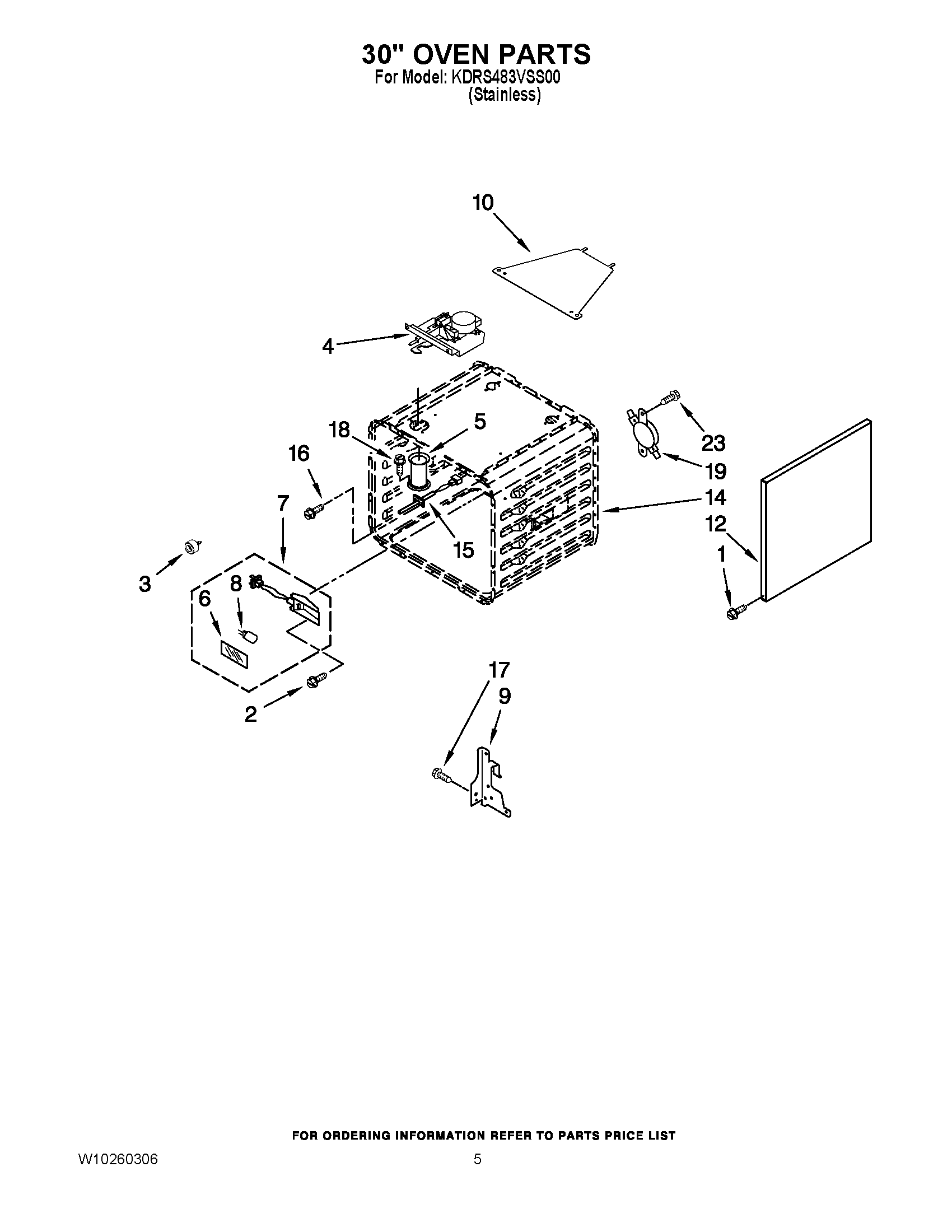

KDRS483VSS00 03 – 30“ OVEN PARTS

Products

PositionProduct
NIW11684730 Whirlpool Insulation
NIINSULATION, BACK, 30"
1WP4449743 Whirlpool Screw
24449748 Whirlpool Oven Screw
3W10105790 Whirlpool Bumper
4W11029221 Whirlpool Door Latch
5TUBE, VENT
6W10169756 Whirlpool Light Lens
7WPW10307114 Whirlpool Light
8BULB-LIGHT
9WP4455605 Whirlpool Left Hand Hinge
9WP4455606 Whirlpool Right Hand Hinge
10W10160858 Whirlpool Lid Cover
12W10269205 Whirlpool Side Compartment
12W10269206 Whirlpool Side Compartment
14CABINET (NOT A SERVICEABLE PART)
15WPW10131825 Whirlpool Oven Temperature Sensor
16WP4449154 Whirlpool Screw
17Screw
18SCREW
19WP4449751 Whirlpool Range Oven Thermostat Fix
23SCREW
