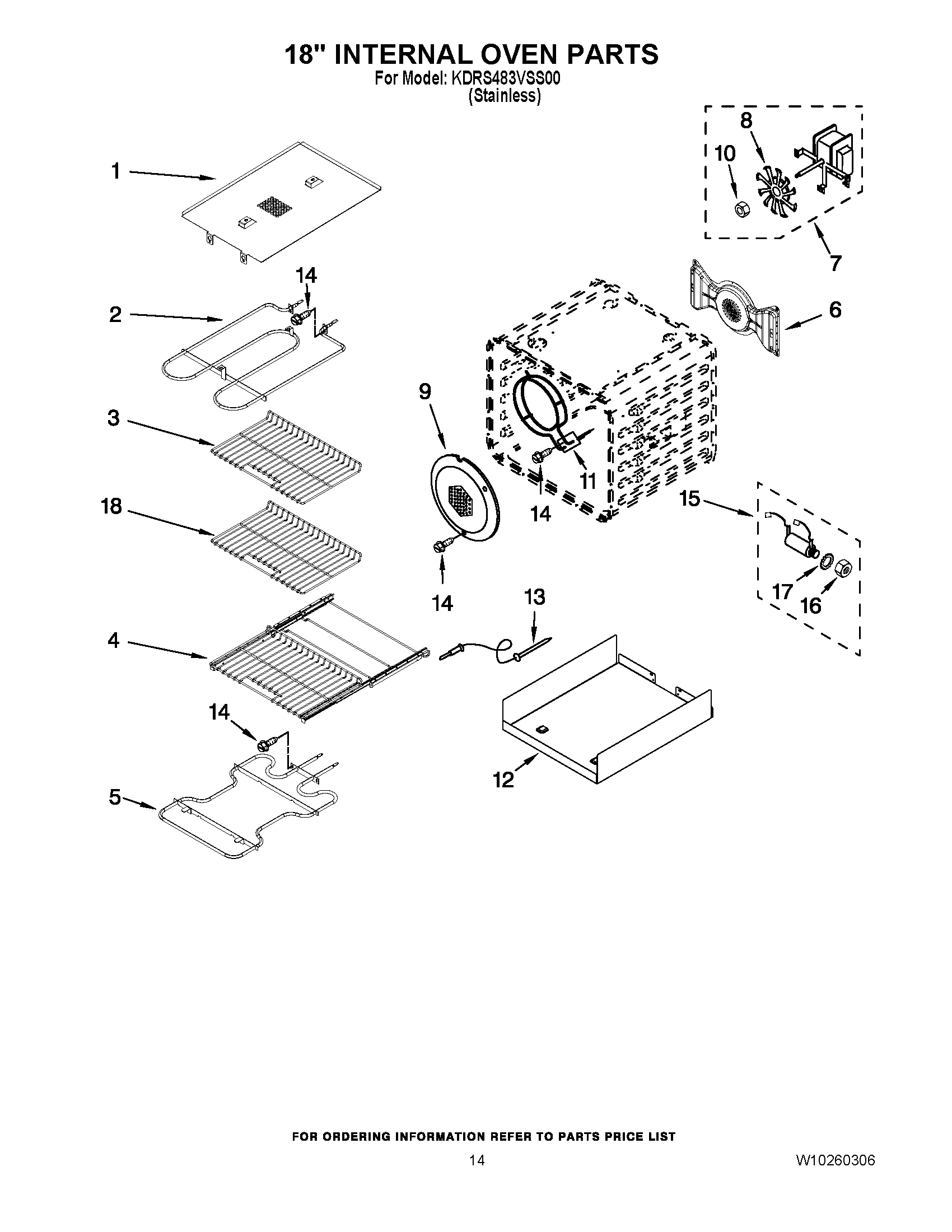

KDRS483VSS00 10 – 18“ INTERNAL OVEN PARTS

Products

PositionProduct
1W10160855 Whirlpool Heat Shield
2W10116010 Whirlpool Broil Element
3W11550107 Whirlpool Oven Rack
4W11186364 Whirlpool Oven Rack
5W10116033 Whirlpool Bake Element
6W10860133 Whirlpool Convection Baffle
7W10794022 Whirlpool Oven Cooktop Fan Motor
8W10758272 Whirlpool Convection Fan
9WPW10160821 Whirlpool Fan Cover
10WPW10116349 Whirlpool Nut
11W11643125 Whirlpool Element
12TRAY, HIDDEN BAKE
13WP9755542 Whirlpool Oven Meat Probe
14WP4449154 Whirlpool Screw
158186589 Whirlpool Jack Probe
16WP9755546 Whirlpool Locknut
17WP9755547 Whirlpool Lockwasher
18W10277391 Whirlpool Oven Rack
