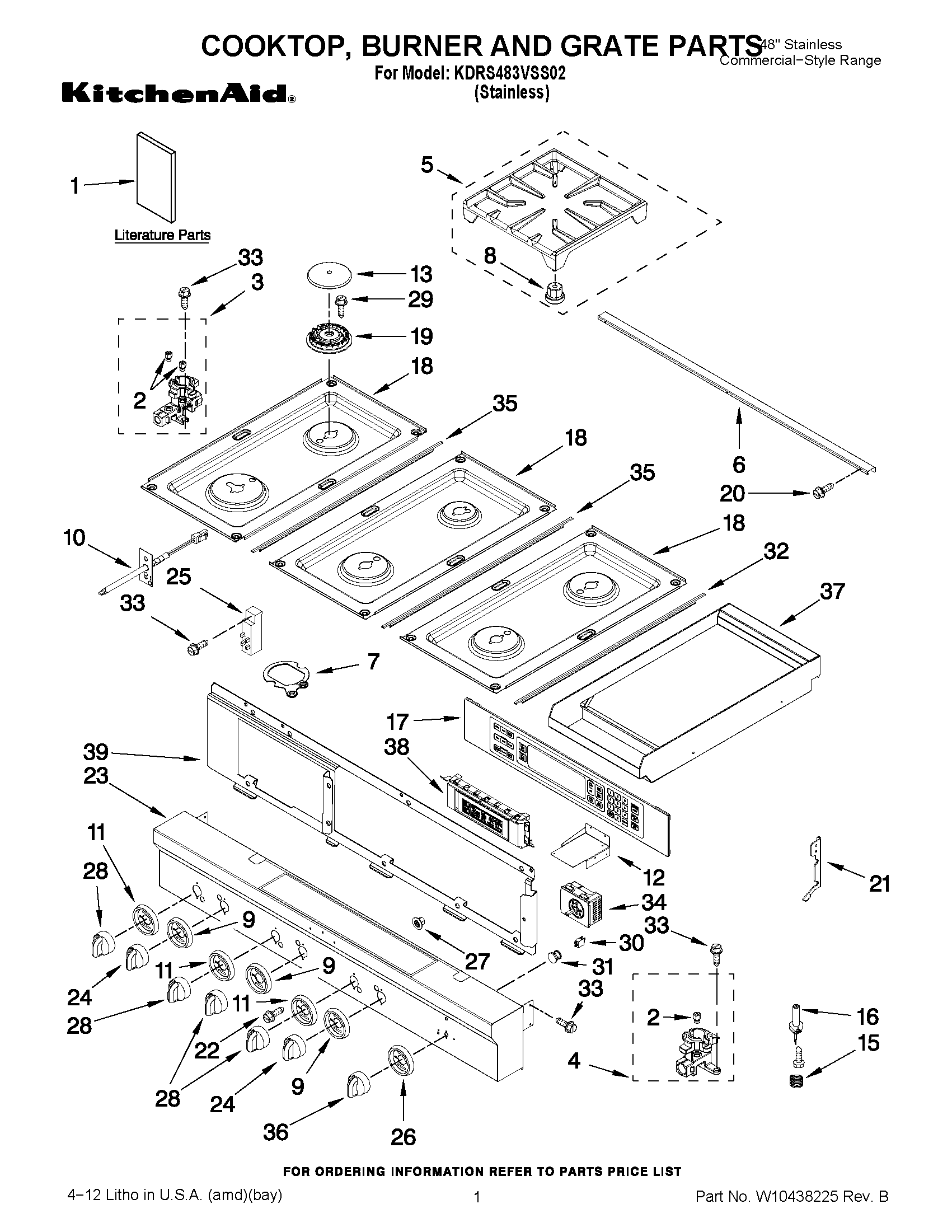

KDRS483VSS02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1SHEET, TECH (ENGLISH)
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1SHEET, TECH (FRENCH)
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
2SPUD-ORFCE
2W11051480 Whirlpool Orifice Assembly
2WPW10256128 Whirlpool Orifice Spud
2W10819958 Whirlpool Orifice Spud
3WPW10364555 Whirlpool Orifice Holder
4W10282659 Whirlpool Orifice Holder
4WPW10364556 Whirlpool Orifice Holder
5WPW10115928 Whirlpool Burner Grate
6W10269216 Whirlpool Top Trim
78286930 Whirlpool Oven Gasket
8W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9W10261510 Whirlpool Knob Bezel
10W10319835 Whirlpool Sensor
11W10261512 Whirlpool Knob Bezel
12W10367052 Whirlpool Switch Bracket
13CAP-BURNER
13CAP-BURNER
13CAP-BURNER
15W10256046 Whirlpool Clip
158286863 Whirlpool Oven Clip
16W10833887 Whirlpool Surface Igniter
16WPW10145991 Whirlpool Surface Igniter
17WPW10116117 Whirlpool Dishwasher Membrane Switch
18W10352966 Whirlpool Cooktop
18W10352963 Whirlpool Cooktop
18W10352969 Whirlpool Cooktop Assembly
19BURNR-HEAD
19W11106799 Whirlpool Range Burner Base Surface
19BURNR-HEAD
20SCREW
21W10130760 Whirlpool Bracket Mounting
21W10130759 Whirlpool Mounting Bracket
22SCREW
23ASSEMBLY, CONSOLE
24W11244176 Whirlpool Knob Assembly
25W11601369 Whirlpool Spark Module
26W10261515 Whirlpool Knob Bezel
27WPL 7103P16660
28W11177673 Whirlpool Knob
29Screw
30W10116151 Whirlpool Indicator Light
31W10116115 Whirlpool Light Lens
32W10291193 Whirlpool Trim Top
33SCREW
34WPW10116113 Whirlpool Infinite Switch
35W10271524 Whirlpool Trim Top
36W10250390 Whirlpool Knob
37W10625221 Whirlpool Module
38WPW10298120-includeCORE Whirlpool WPW10298120 Refrigerator Electronic Control Board + Core
39W10250476 Whirlpool Mounting Bracket
