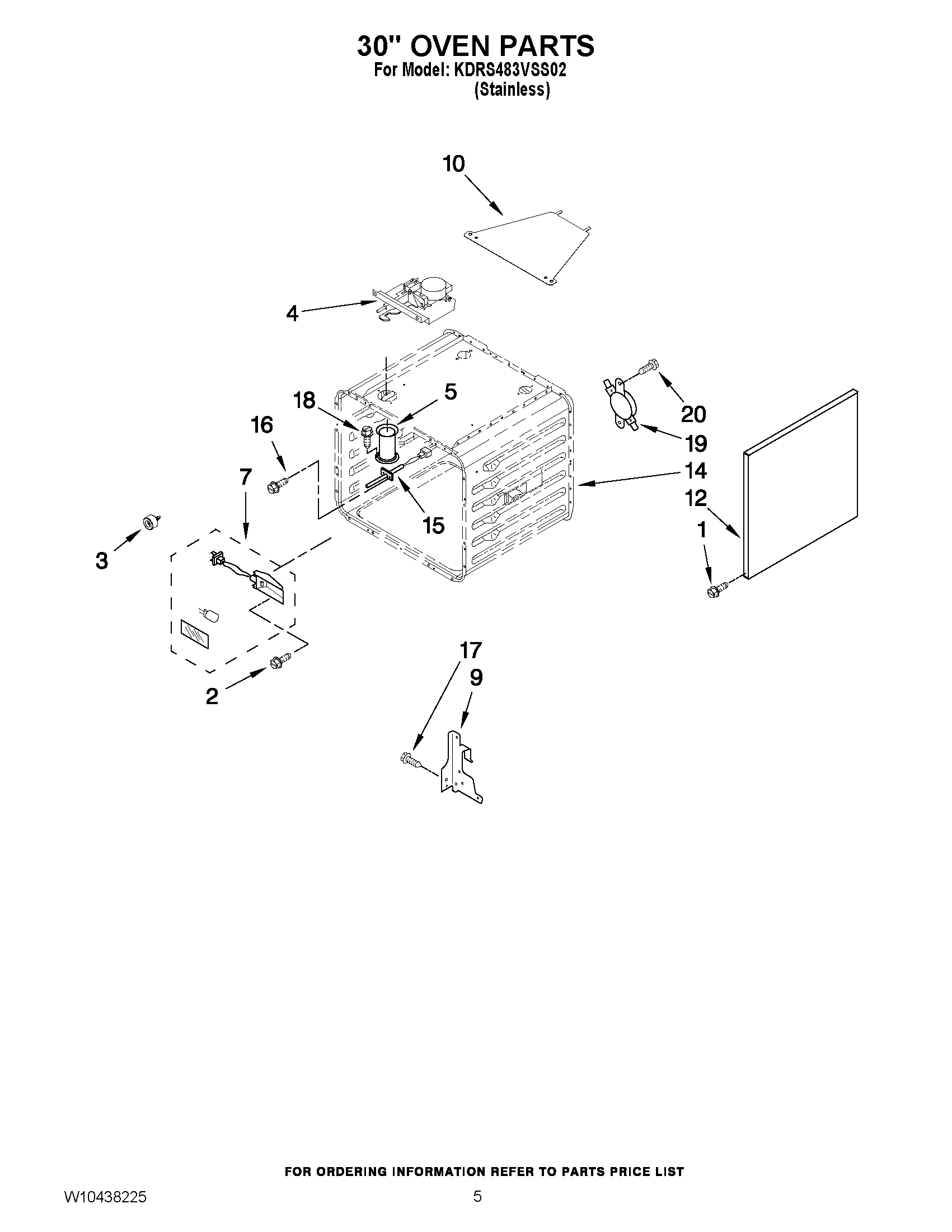

KDRS483VSS02 03 – 30“ OVEN PARTS

Products

Position	Product
NI	W11684730 Whirlpool Insulation
NI	INSULATION, BACK, 30"
1	WPW10292297 Whirlpool Screw
2	4449748 Whirlpool Oven Screw
3	W10105790 Whirlpool Bumper
4	W11029221 Whirlpool Door Latch
5	TUBE, VENT
7	WPW10307114 Whirlpool Light
9	WP4455605 Whirlpool Left Hand Hinge
9	WP4455606 Whirlpool Right Hand Hinge
10	W10160858 Whirlpool Lid Cover
12	W10269206 Whirlpool Side Compartment
12	W10269205 Whirlpool Side Compartment
14	CABINET (NOT A SERVICEABLE PART)
15	WPW10131825 Whirlpool Oven Temperature Sensor
16	WP4449154 Whirlpool Screw
17	Screw
18	SCREW
19	WP4449751 Whirlpool Range Oven Thermostat Fix
20	SCREW
