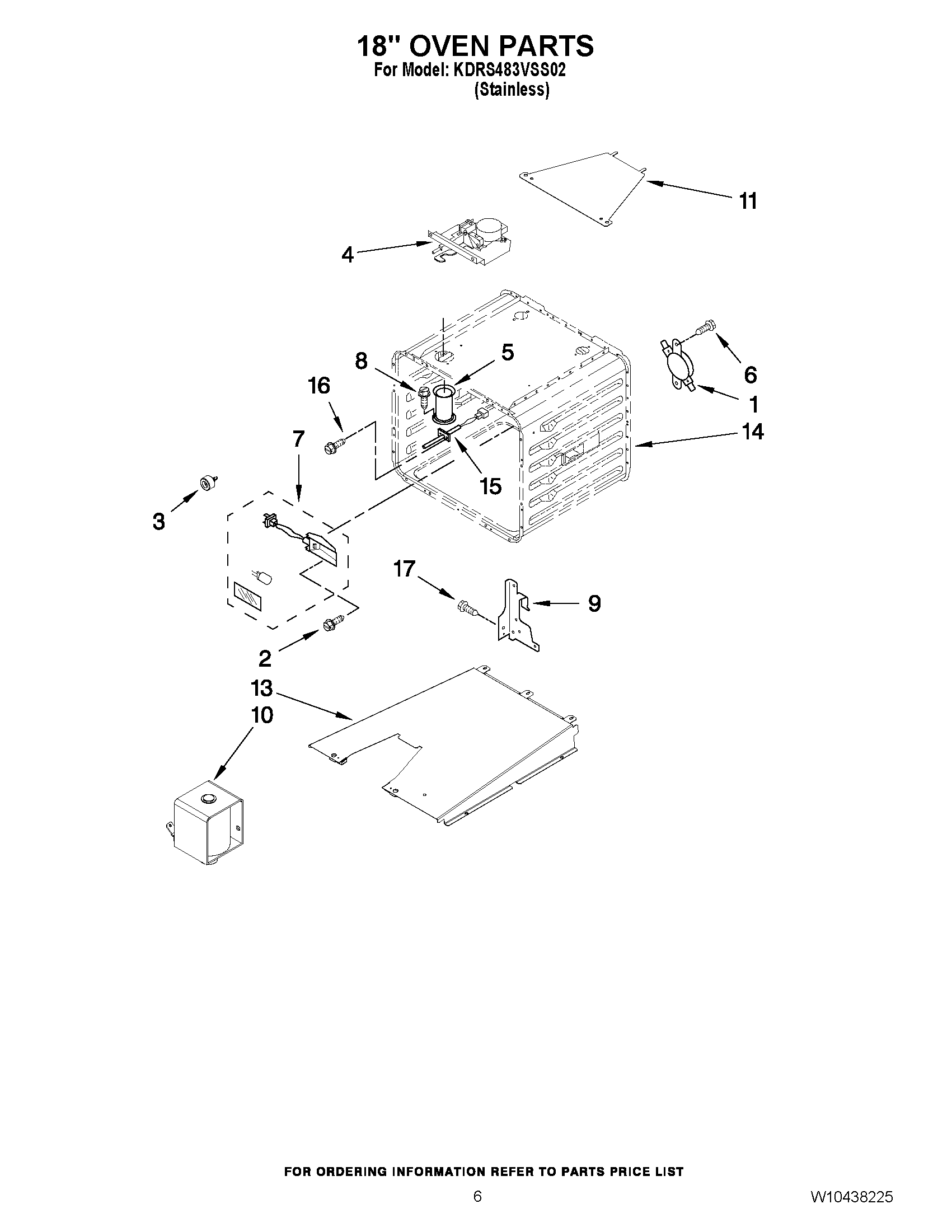

KDRS483VSS02 04 – 18“ OVEN PARTS

Products

Position	Product
NI	INSULATION, BACK, 18"
NI	W11688722 Whirlpool Insulation
1	WP4449751 Whirlpool Range Oven Thermostat Fix
2	4449748 Whirlpool Oven Screw
3	W10105790 Whirlpool Bumper
4	W11029221 Whirlpool Door Latch
5	TUBE, VENT
6	SCREW
7	WPW10307114 Whirlpool Light
8	SCREW
9	WP4455605 Whirlpool Left Hand Hinge
9	WP4455606 Whirlpool Right Hand Hinge
10	VENT, COOLING BOTTOM (18")
11	W10160858 Whirlpool Lid Cover
13	W10160897 Whirlpool Exhaust Vent
14	CABINET (NOT A SERVICEABLE PART)
15	W10319835 Whirlpool Sensor
16	WP4449154 Whirlpool Screw
17	Screw
