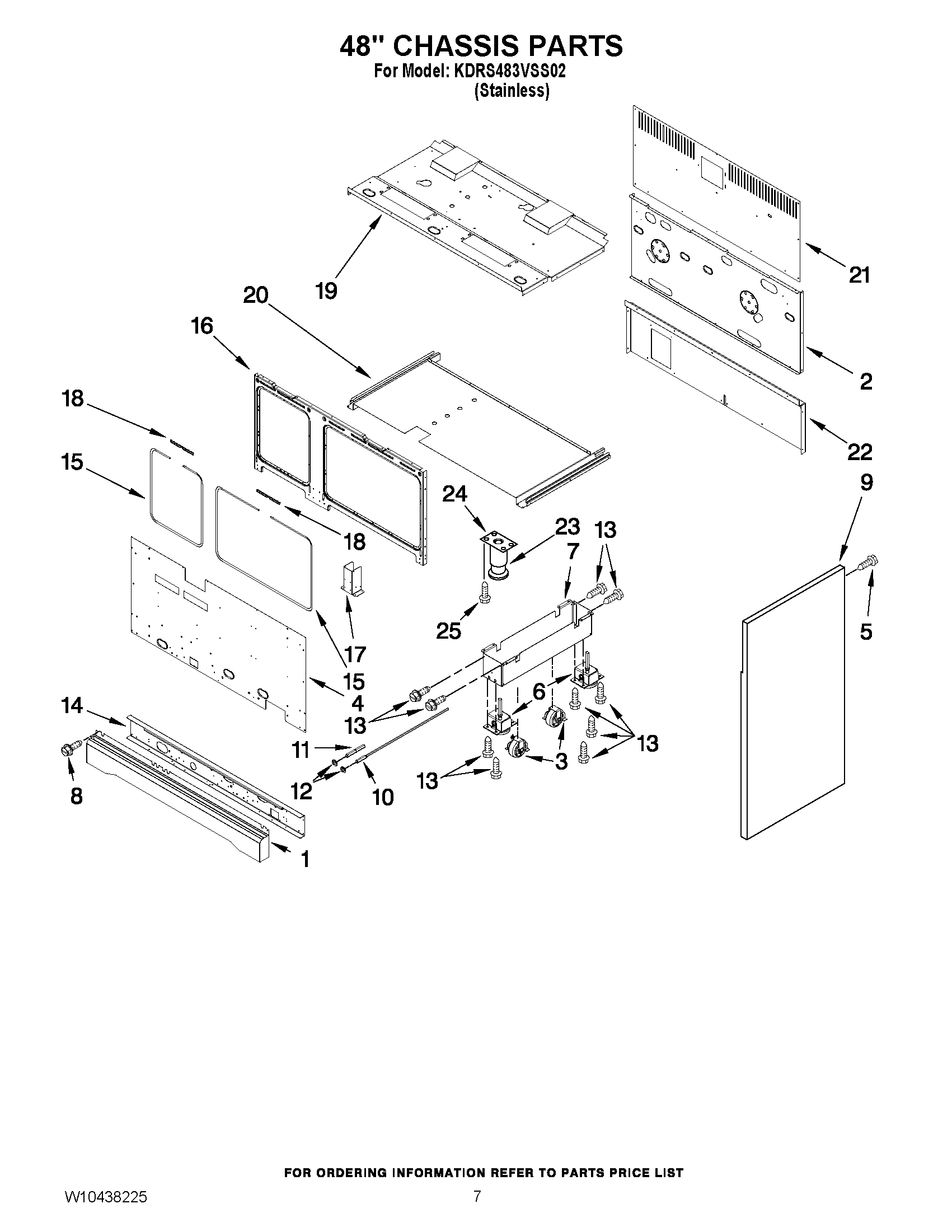

KDRS483VSS02 05 – 48“ CHASSIS PARTS

KDRS483VSS02 05 – 48“ CHASSIS PARTS

Written by

in

KDRS483VSS02 05 – 48“ CHASSIS PARTS

Products

PositionProduct
1WPW10225969 Whirlpool Oven Vent
2BACK, CHASSIS
3WPW10138054 Whirlpool Refrigerator Cabinet Roller
4W10269195 Whirlpool Duct Assembly
6W10859931 Whirlpool Foot Level
7W10249333 Whirlpool Dishwasher Mounting Bracket
8WP3196557 Whirlpool Screw
9W11321067 Whirlpool Complete Side Assembly
9W10250466 Whirlpool Cabinet Panel
10W10115869 Whirlpool Shaft
11W10115793 Whirlpool Shaft
12489504 Whirlpool Oven Ring
13WPW10292297 Whirlpool Screw
14W10269192 Whirlpool Support
15W11675844 Whirlpool Oven Gasket
15W10116039 Whirlpool Door Gasket
15FRAME, FRONT
16FRAME, FRONT
17W10115819 Whirlpool Brace
18W10216520 Whirlpool Retainer
18W11368870 Whirlpool Retainer Assembly
19CHASSIS, TOP
20W10235535 Whirlpool Bottom Main
21PANEL, BACK TOP
22W10145397 Whirlpool Rear Cover
23WP9759117 Whirlpool Leveling Foot
24WP9759118 Whirlpool Mounting Plate
253400518 Whirlpool Oven Foot Mount Screw
