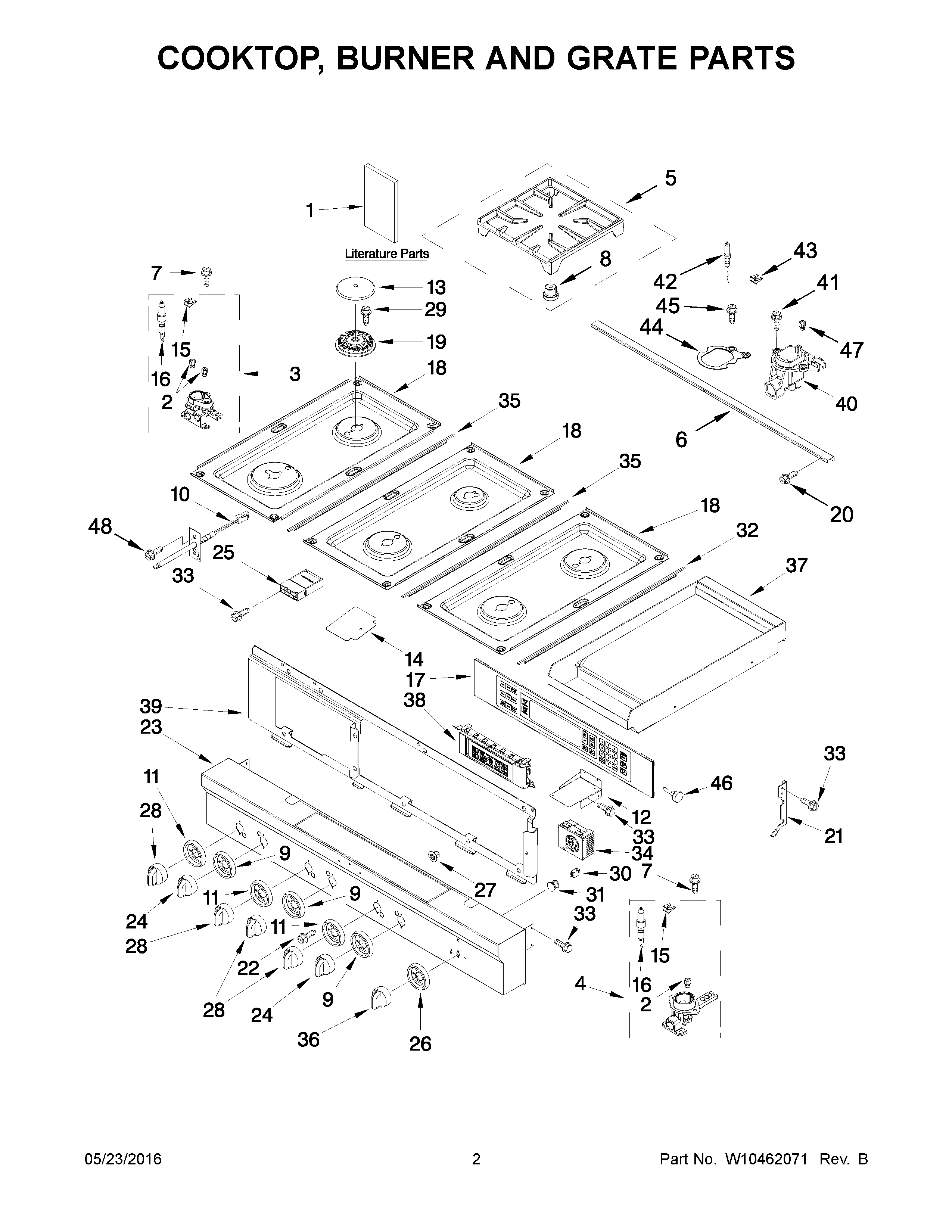

KDRS483VSS03 02 – COOKTOP, BURNER AND GRATE PARTS

KDRS483VSS03 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KDRS483VSS03 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIW10399621 Whirlpool Wire Harness
NIW10338986 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NI8287106 Whirlpool Clip Assembly
NI9757778 Whirlpool Oven Bushing
NIW11544575 Whirlpool Anti-Tip Bracket
NISCREW, ANTI-TIP KIT
NIGrommet, Flex
NIWPL W10507832
NIW10494088 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NIWPL W10766100
NIW10116182 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NIW10338989 Whirlpool Wire Harness
NIW10856625 Whirlpool Venturi
NI4450800 Whirlpool Oven Screw
NIW10726866 Whirlpool Wire Harness
NIW11675299 Whirlpool Tie Wire
1SHEET, TECH (ENGLISH)
1ESafer Cooking Tips (French)
1ASHEET, TECH (FRENCH)
1CINSTRUCTIONS, INSTALLATION
1BGUIDE, USE & CARE
1DSAFER COOKING TIPS (ENGLISH
2SPUD-ORFCE
2AW10819958 Whirlpool Orifice Spud
2BW11051480 Whirlpool Orifice Assembly
3WPW10364555 Whirlpool Orifice Holder
4WPW10364556 Whirlpool Orifice Holder
5W11569347 Whirlpool Grate Kit
6W10269216 Whirlpool Top Trim
7WP3177991 Whirlpool Screw
8W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9W10261510 Whirlpool Knob Bezel
10W10319835 Whirlpool Sensor
11W10261512 Whirlpool Knob Bezel
12BRACKET, SPARK MODULE
13BCAP-BURNER
13CAP-BURNER
13ACAP-BURNER
14W10287036 Whirlpool Access Cover
15W10256046 Whirlpool Clip
16W10833887 Whirlpool Surface Igniter
17WPW10116117 Whirlpool Dishwasher Membrane Switch
18BW10352963 Whirlpool Cooktop
18W10352969 Whirlpool Cooktop Assembly
18AW10352966 Whirlpool Cooktop
19W11106799 Whirlpool Range Burner Base Surface
19BBURNR-HEAD
19ABURNR-HEAD
20SCREW
21AW10130759 Whirlpool Mounting Bracket
21W10130760 Whirlpool Bracket Mounting
22SCREW
23ASSEMBLY, CONSOLE
24W11244176 Whirlpool Knob Assembly
25WPW10475147 Whirlpool Spark Module
26W10261515 Whirlpool Knob Bezel
27WPL 7103P16660
28W11177673 Whirlpool Knob
29WPW10373929 Whirlpool Screw
30W10116151 Whirlpool Indicator Light
31W10116115 Whirlpool Light Lens
32W10291193 Whirlpool Trim Top
33SCREW
34WPW10116113 Whirlpool Infinite Switch
35W10271524 Whirlpool Trim Top
36W10250390 Whirlpool Knob
37W10625221 Whirlpool Module
38WPW10298120-includeCORE Whirlpool WPW10298120 Refrigerator Electronic Control Board + Core
39W10250476 Whirlpool Mounting Bracket
40W10282659 Whirlpool Orifice Holder
41W11676349 Whirlpool Screw
42WPL 8286724
438286863 Whirlpool Oven Clip
448286930 Whirlpool Oven Gasket
45W10491985 Whirlpool Screw
464448520 Whirlpool Oven Bumper
47W10791075 Whirlpool Orifice Spud
48SCREW
