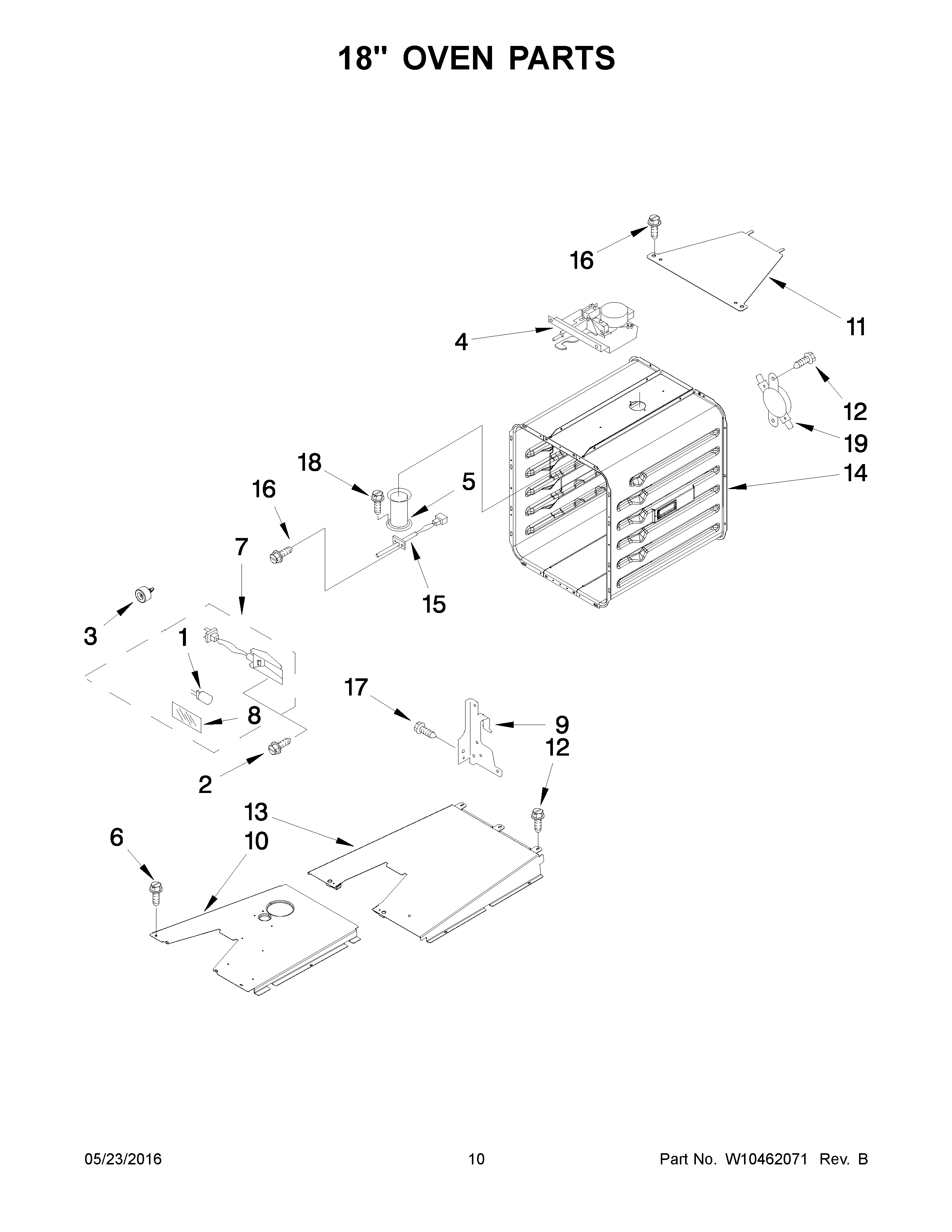

KDRS483VSS03 06 – 18 INCH OVEN PARTS

Products

PositionProduct
NIINSULATION, BACK, 18"
NIW11688722 Whirlpool Insulation
NIWP3400968 Whirlpool Nut
NICABINET (NOT A SERVICEABLE PART)
1BULB-LIGHT
24449748 Whirlpool Oven Screw
3W10105790 Whirlpool Bumper
4W11029221 Whirlpool Door Latch
5TUBE, VENT
6WP12990527 Whirlpool Microwave Screw
7WPW10307114 Whirlpool Light
8W10169756 Whirlpool Light Lens
9AWP4455606 Whirlpool Right Hand Hinge
9WP4455605 Whirlpool Left Hand Hinge
10VENT, COOLING BOTTOM (18")
11W10160858 Whirlpool Lid Cover
12SCREW
13W10160897 Whirlpool Exhaust Vent
15WPW10131825 Whirlpool Oven Temperature Sensor
16WP4449154 Whirlpool Screw
17Screw
18SCREW
19WP4449751 Whirlpool Range Oven Thermostat Fix
