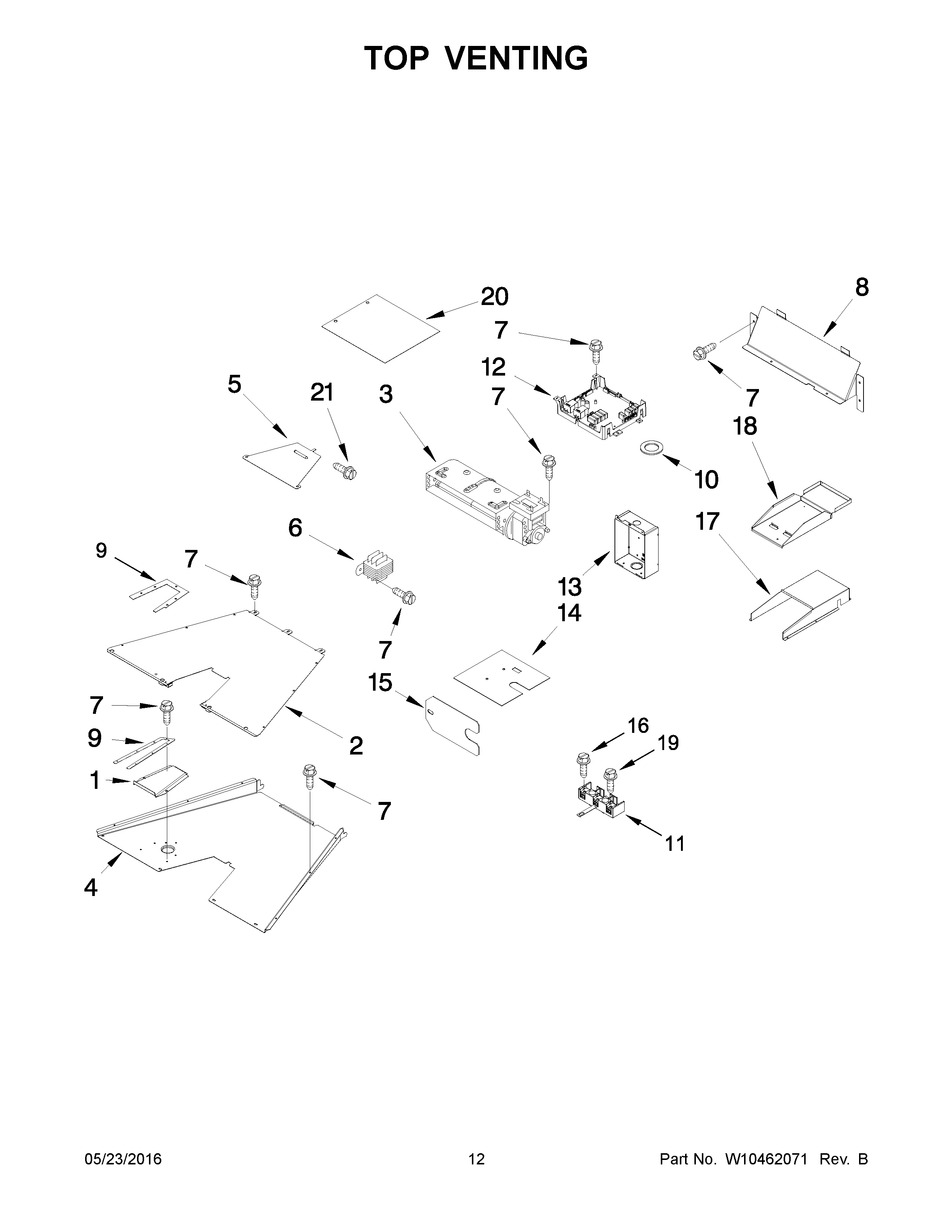

KDRS483VSS03 07 – TOP VENTING

Products

PositionProduct
1SLOPE, EXHAUST VENT (30")
1ASLOPE, EXHAUST VENT (18")
2VENT, COOLING TOP (30")
3WPW10245511 Whirlpool Blower
4W10246078 Whirlpool Vent Panel
5PLATE, COOLING LATCH
6W10495854 Whirlpool Transformer
7SCREW
8W10160844 Whirlpool Bracket Mounting
9W10270397 Whirlpool Vent Seal
9AW10270402 Whirlpool Seal Assembly
10SEAL, CHIMNEY
11WP9761958 Whirlpool Range Terminal Block
12W10852104 Whirlpool Electronic Control Board + Core
13W10467022 Whirlpool Box Terminal
149759721 Whirlpool Oven Insulator
15COVER, CHANNEL
16WP3196163 Whirlpool Screw
17ASSEMBLY, DRAWER
18SUPPORT, CONTROL
19WP3400015 Whirlpool Screw
20W10239444 Whirlpool Foam Seal
21WP12990527 Whirlpool Microwave Screw
