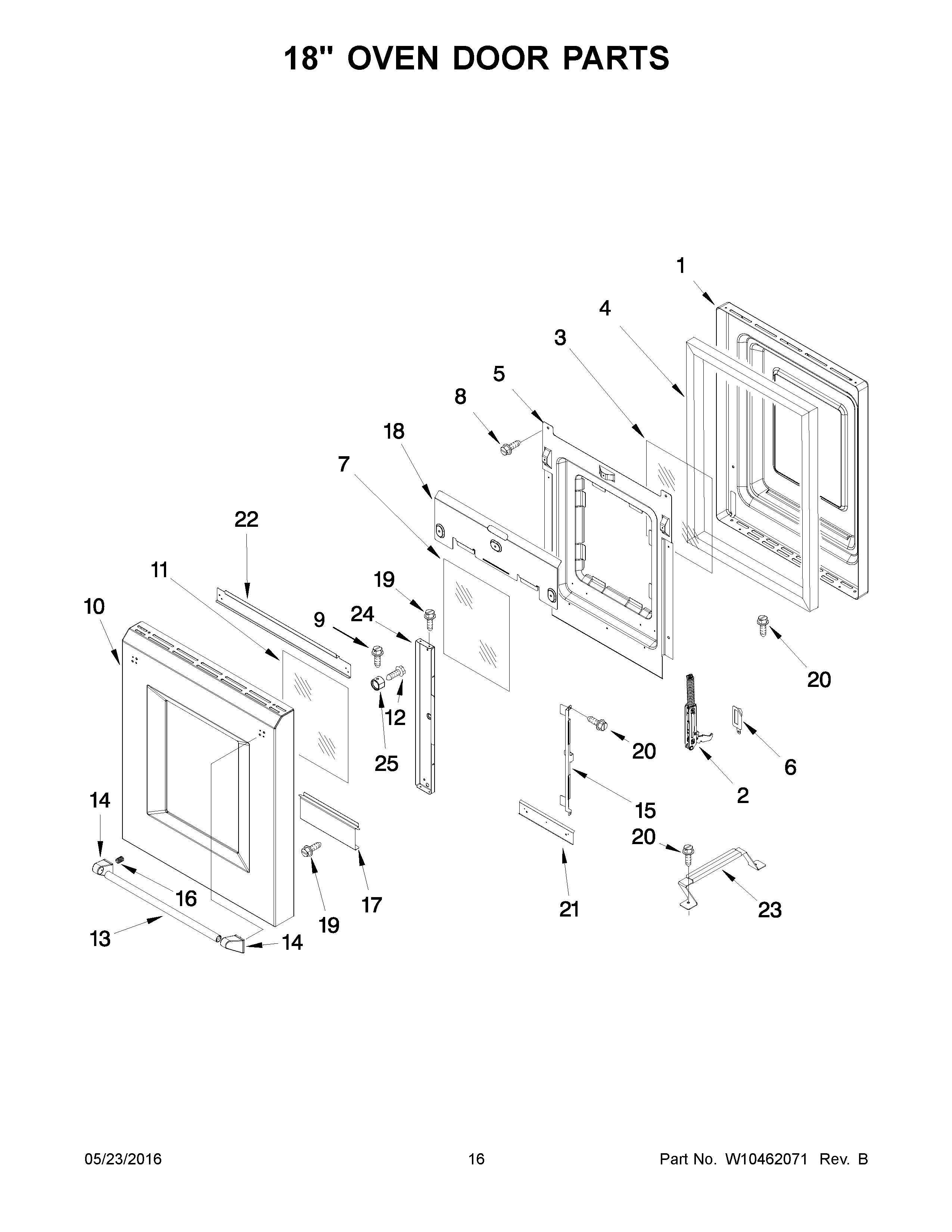

KDRS483VSS03 09 – 18 INCH OVEN DOOR PARTS

Products

Position	Product
1	W10188323 Whirlpool Door Liner
2A	HINGE, DOOR (RIGHT)
2	W10774089 Whirlpool Door Hinge
3	GLASS, INNER DOOR
4	W10115737 Whirlpool Insulation
5	W10188325 Whirlpool Retainer
6A	W10115877 Whirlpool Cover
6	W10115876 Whirlpool Cover
7	WPW10115695 Whirlpool Door Glass
8	WPW10292297 Whirlpool Screw
9	W10061760 Whirlpool Screw
10	WPW10226004 Whirlpool Door Panel
11	WPW10115710 Whirlpool Door Glass
12	W10217130 Whirlpool Screw
13	W10115719 Whirlpool Door Handle
14	END CAP, HANDLE (LEFT)
14A	W10226025 Whirlpool Handle Endcap
15	WP9759229 Whirlpool Mounting Bracket
16	W10771437 Whirlpool Screw
17	BRACKET, OUTER GLASS BOTTOM
18	SHIELD, TOP HEAT
19	WP3196557 Whirlpool Screw
20	SCREW
21	SHIELD, LOWER HEAT
22	W10145807 Whirlpool Glass Bracket
23	Bracket (3rd Glsss)
24	BRACKET, OUTER GLASS (SIDE)
25	SUPPORT, HANDLE
