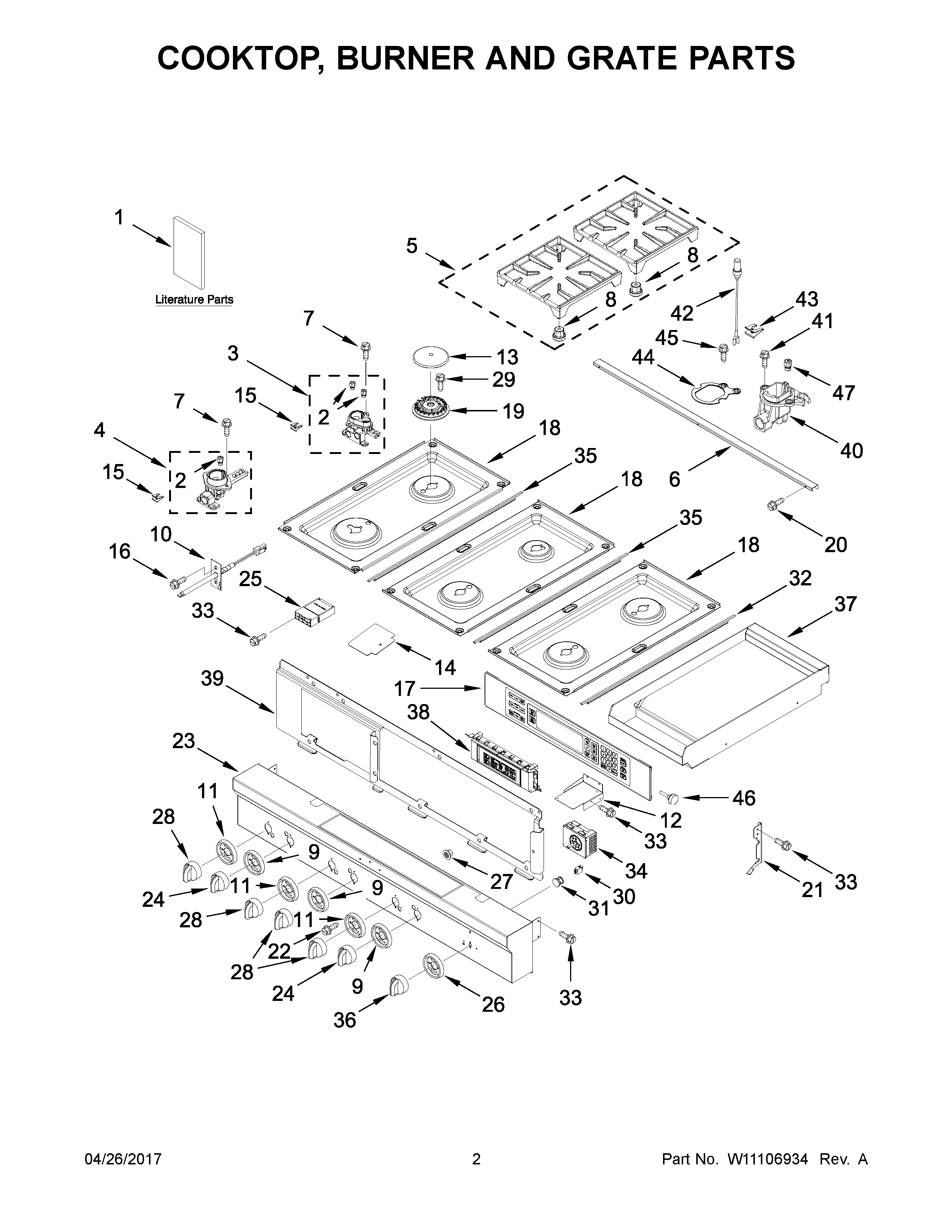

KDRS483VSS04 02 – COOKTOP, BURNER AND GRATE PARTS

KDRS483VSS04 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KDRS483VSS04 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	W10780278 Whirlpool Wire Harness
NI	W10763503 Whirlpool Wire Harness
NI	W10399621 Whirlpool Wire Harness
NI	W10338989 Whirlpool Wire Harness
NI	W10116182 Whirlpool Wire Harness
NI	WPL W10766100
NI	WPL 8010P08660
NI	W10856625 Whirlpool Venturi
NI	W10726866 Whirlpool Wire Harness
NI	W11675299 Whirlpool Tie Wire
NI	Grommet, Flex
NI	8287106 Whirlpool Clip Assembly
NI	W10338986 Whirlpool Wire Harness
NI	W10494088 Whirlpool Wire Harness
NI	WPL W10283996
NI	SCREW, ANTI-TIP KIT
NI	CABINET (NOT A SERVICEABLE PART)
NI	4450800 Whirlpool Oven Screw
NI	16515 Whirlpool Clip
NI	9757778 Whirlpool Oven Bushing
NI	W11544575 Whirlpool Anti-Tip Bracket
1C	INSTRUCTIONS, INSTALLATION
1D	SAFER COOKING TIPS (ENGLISH
1E	Safer Cooking Tips (French)
1B	GUIDE, USE & CARE
1A	SHEET, TECH (FRENCH)
1	SHEET, TECH (ENGLISH)
2A	W10819958 Whirlpool Orifice Spud
2	SPUD-ORFCE
2B	W11051480 Whirlpool Orifice Assembly
3	W10846622 Whirlpool Orifice Holder
4	W10846623 Whirlpool Orifice Holder
5	W11569347 Whirlpool Grate Kit
6	W10269216 Whirlpool Top Trim
7	WP3177991 Whirlpool Screw
8	8186321 Whirlpool Range Foot Pads Set of 4
9	W10261510 Whirlpool Knob Bezel
10	W10319835 Whirlpool Sensor
11	W10261512 Whirlpool Knob Bezel
12	BRACKET, SPARK MODULE
13B	CAP-BURNER
13A	CAP-BURNER
13	CAP-BURNER
14	W10287036 Whirlpool Access Cover
15	W11684564 Whirlpool Clip Assembly
16	SCREW
17	WPW10116117 Whirlpool Dishwasher Membrane Switch
18B	W10352963 Whirlpool Cooktop
18A	W10352966 Whirlpool Cooktop
18	W10352969 Whirlpool Cooktop Assembly
19B	BURNR-HEAD
19	W11106799 Whirlpool Range Burner Base Surface
19A	BURNR-HEAD
20	SCREW
21A	W10130759 Whirlpool Mounting Bracket
21	W10130760 Whirlpool Bracket Mounting
22	SCREW
23	ASSEMBLY, CONSOLE
24	W11103350 Whirlpool Knob
25	WPW10475147 Whirlpool Spark Module
26	W10261515 Whirlpool Knob Bezel
27	WPL 7103P16660
28	W11103351 Whirlpool Knob Assembly
29	W11241230 Whirlpool Screw
30	W10116151 Whirlpool Indicator Light
31	W10116115 Whirlpool Light Lens
32	W10291193 Whirlpool Trim Top
33	SCREW
34	WPW10116113 Whirlpool Infinite Switch
35	W10271524 Whirlpool Trim Top
36	W11107763 Whirlpool Knob
37	W10625221 Whirlpool Module
38	WPW10298120-includeCORE Whirlpool WPW10298120 Refrigerator Electronic Control Board + Core
39	W10250476 Whirlpool Mounting Bracket
40	W10883622 Whirlpool Orifice Holder
41	W11676349 Whirlpool Screw
42	WPL 8286724
43	8286863 Whirlpool Oven Clip
44	8286930 Whirlpool Oven Gasket
45	W10491985 Whirlpool Screw
46	4448520 Whirlpool Oven Bumper
47	W10791075 Whirlpool Orifice Spud
