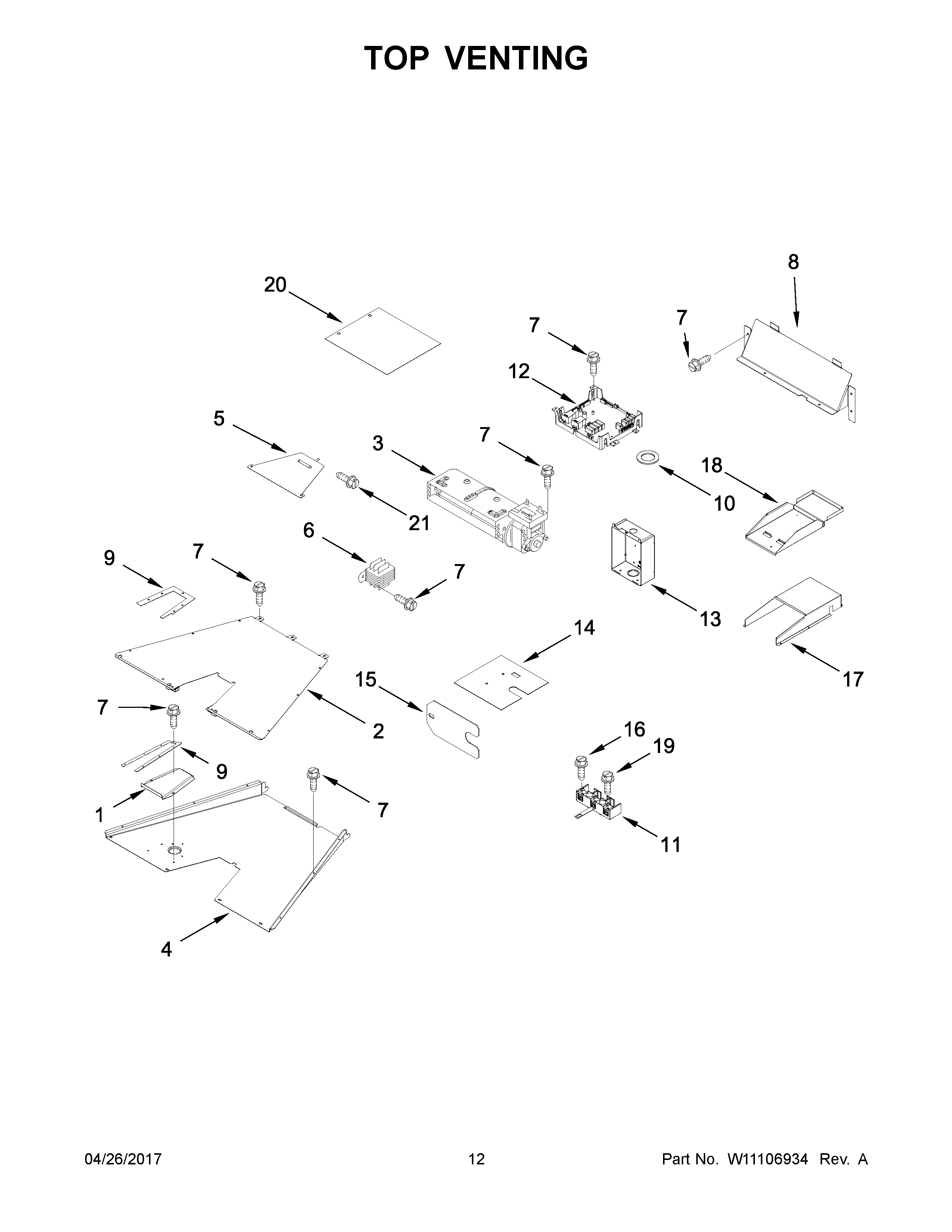

KDRS483VSS04 07 – TOP VENTING

Products

Position	Product
1	SLOPE, EXHAUST VENT (30")
1A	SLOPE, EXHAUST VENT (18")
2	VENT, COOLING TOP (30")
3	WPW10245511 Whirlpool Blower
4	W10246078 Whirlpool Vent Panel
5	PLATE, COOLING LATCH
6	W10495854 Whirlpool Transformer
7	SCREW
8	W10160844 Whirlpool Bracket Mounting
9	W10270397 Whirlpool Vent Seal
9A	W10270402 Whirlpool Seal Assembly
10	SEAL, CHIMNEY
11	WP9761958 Whirlpool Range Terminal Block
12	W10852104 Whirlpool Electronic Control Board + Core
13	W10467022 Whirlpool Box Terminal
14	9759721 Whirlpool Oven Insulator
15	COVER, CHANNEL
16	WP3196163 Whirlpool Screw
17	ASSEMBLY, DRAWER
18	SUPPORT, CONTROL
19	WP3400015 Whirlpool Screw
20	W10239444 Whirlpool Foam Seal
21	WP12990527 Whirlpool Microwave Screw
