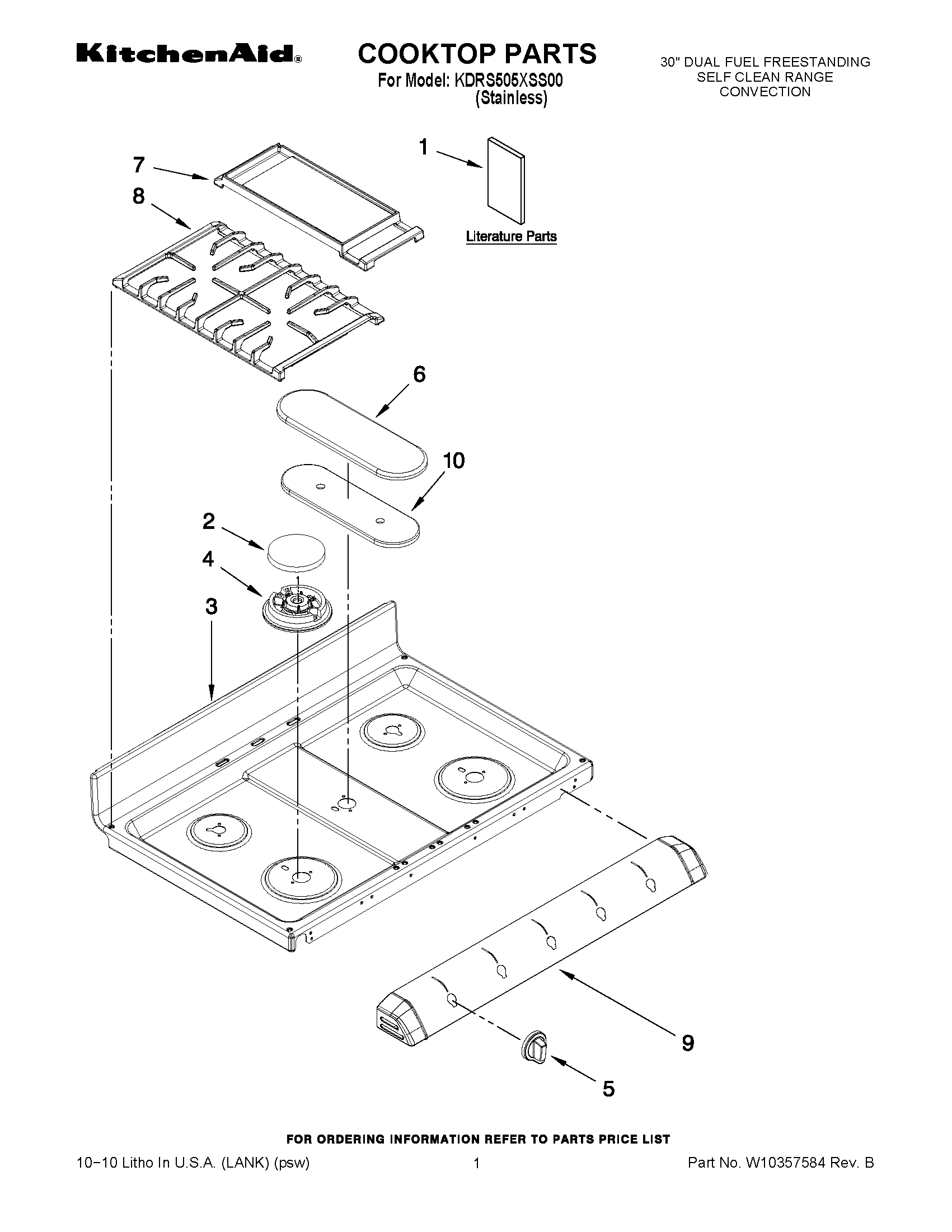

KDRS505XSS00 01 – COOKTOP PARTS

KDRS505XSS00 01 – COOKTOP PARTS

Written by

in

KDRS505XSS00 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1INSTRUCTIONS, INSTALLATION
1OWNERS MANUAL
1SHEET, TECH
2WPW10299236 Whirlpool Burner Cap
3W10401393 Whirlpool Cooktop
4WPW10406878 Whirlpool Burner Base (16K)
4WPW10336094 Whirlpool Burner Assembly Top
4WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4WPW10406243 Whirlpool Burner Head Auxiliary 6K
5WPW10295131 Whirlpool Stainless Steel Knob
6WPW10171140 Whirlpool Burner Cap
7GRIDDLE
8WPW10260069 Whirlpool Grate Kit
9WPW10284717 Whirlpool Manifold Panel
10WPW10333445 Whirlpool Burner Base
