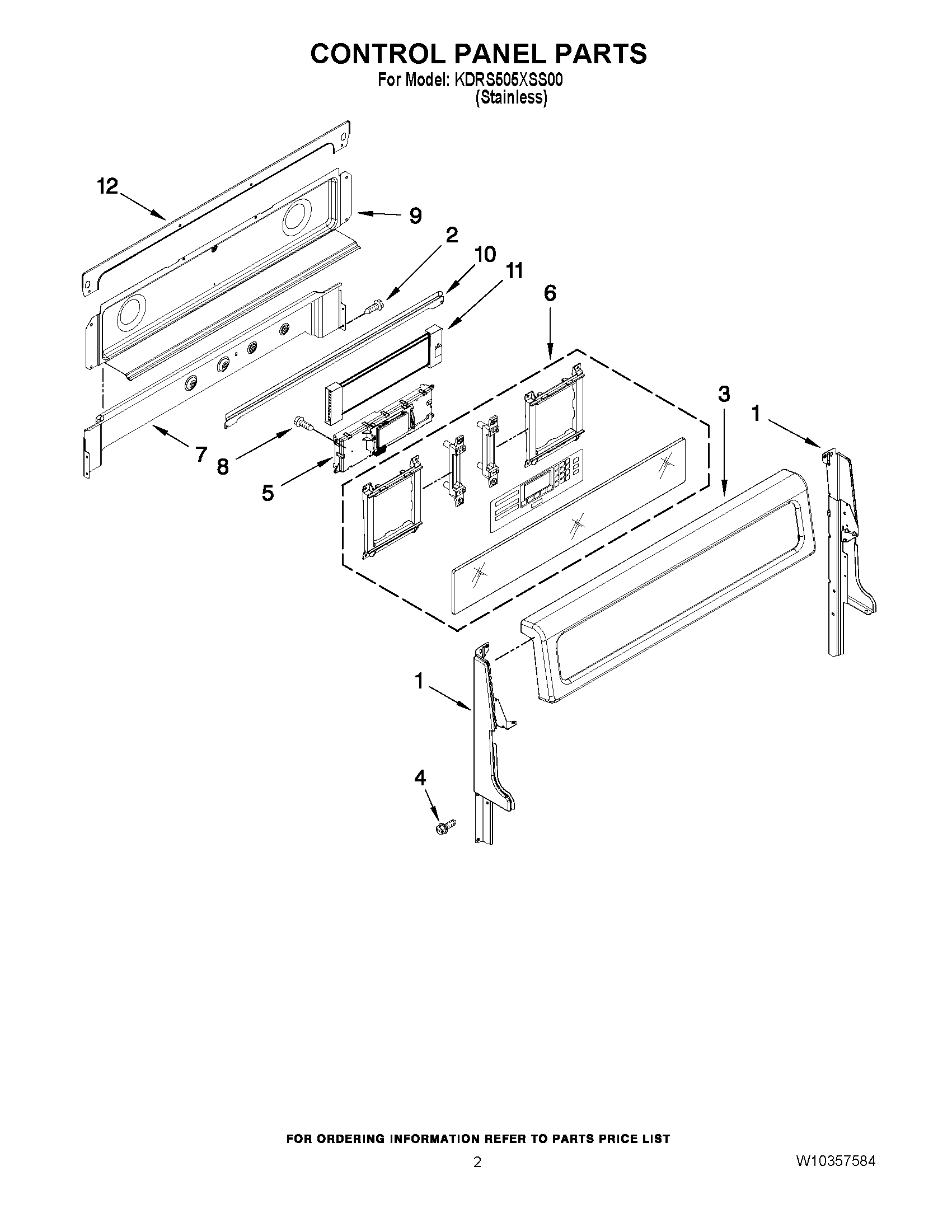

KDRS505XSS00 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	W10319109 Whirlpool Endcap Panel
1	SUPPORT, BACK GUARD (RIGHT HAND)
2	SCREW
3	WPW10424185 Whirlpool Control Panel
4	Screw
5	ELECTRIC, CONTROL
6	ASSEMBLY, MEMBRANE
7	W10278697 Whirlpool Vent Shield Assembly
8	SCREW
9	W10296773 Whirlpool Rear Cover
11	WPW10318787 Whirlpool Wire Harness
12	WPW10292689 Whirlpool Wire Cover
