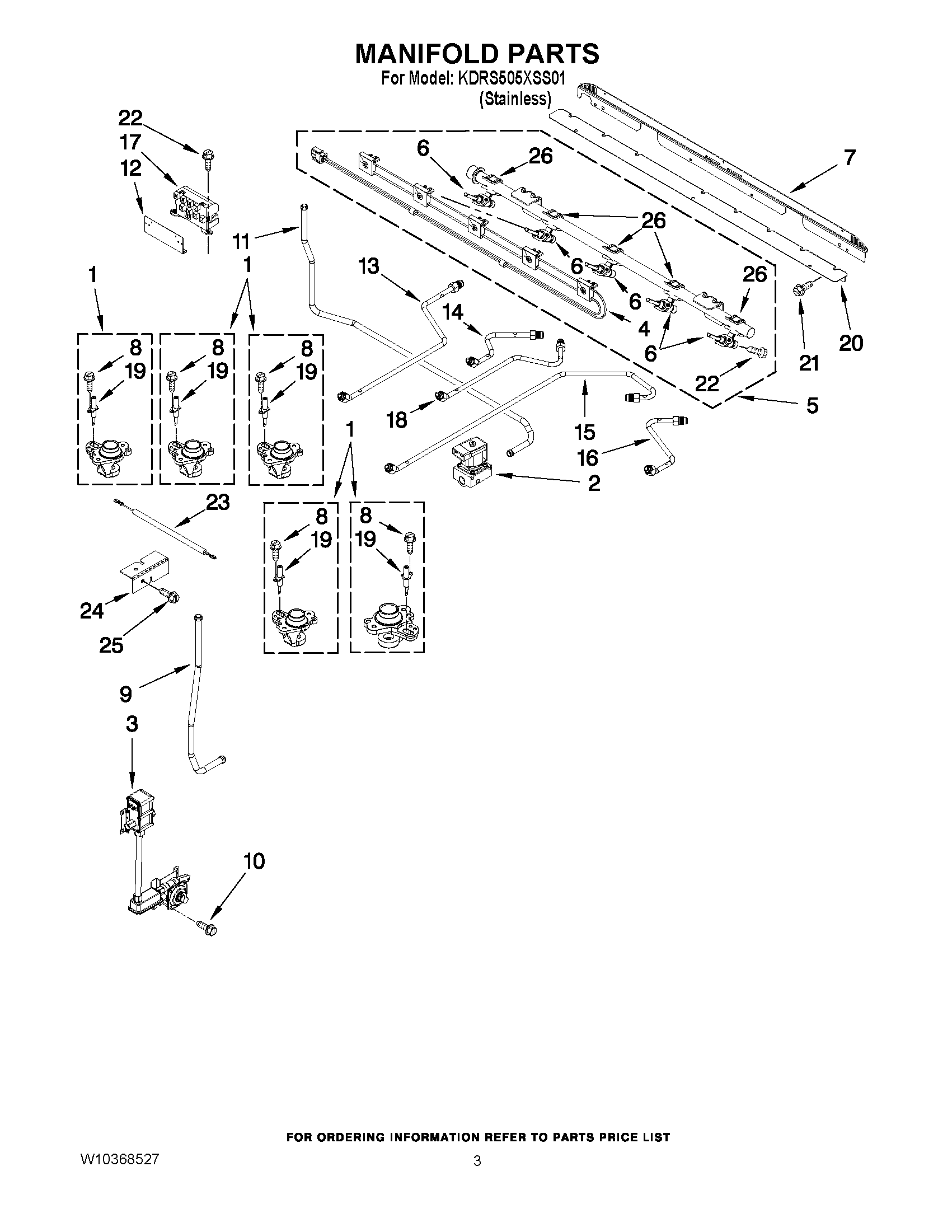

KDRS505XSS01 03 – MANIFOLD PARTS

Products

Position	Product
NI	WPW10311058 Whirlpool Orifice Spud
1	W10861630 Whirlpool Orifice Holder
1	WPW10319347 Whirlpool Orifice Holder
1	HOLDER, ORIFICE (LR & RR, 5K)
1	HOLDER, ORIFICE (LEFT FRONT, 16K)
2	VALVE, SHUT OFF
3	VALVE, REGULATOR
4	WPW10204718 Whirlpool Wire Harness
5	WPW10204705 Whirlpool Manifold Assembly
6	WPW10298678 Whirlpool Burner Valve
6	WPW10206288 Whirlpool Valve Burner
6	VALVE-BRNR
7	WPW10276470 Whirlpool Dishwasher Support Bracket
8	WP8273062 Whirlpool Screw
9	W10295050 Whirlpool Gas Tubing Assembly
10	SCREW
11	W10295055 Whirlpool Gas Tubing
12	BRACKET, SUPPORT (FOR SPARK MODULE)
13	TUBING, LR
14	TUBING, LF
15	TUBING, RR
16	TUBING, RF
17	MODULE, SPARK
18	TUBING, CENTER
19	WPW10110378 Whirlpool Surface Igniter
19	W10324015 Whirlpool Surface Igniter
20	WPW10276466 Whirlpool Support Bracket
21	SCREW
22	Screw
23	W10636384 Whirlpool Extension
24	W10324366 Whirlpool Shield
25	W10217535 Whirlpool Screw
26	98017516 Whirlpool Mounting Bracket
